License Plate lights.
Thread Starter
|
Junior User
Joined: Mar 2013
Posts: 63
Likes: 0
License Plate lights.
INFO
-Replacing with Optronics LP11CS - License Plate/Utility Light | O'Reilly Auto Parts
-Brown Wire is spliced to make three wires.
-Brown wire has power
-Lights do not light up
Questions
-1.Do the lights ground to the bumper?
if not
-2.Can I ground the brown wire to the Bumper or somewhere with a small screw?
-3.Where Should I check for grounding of rear lighting?
Sorry, topic has been covered so many times. I couldn't find any thing conclusive.
-Replacing with Optronics LP11CS - License Plate/Utility Light | O'Reilly Auto Parts
-Brown Wire is spliced to make three wires.
-Brown wire has power
-Lights do not light up
Questions
-1.Do the lights ground to the bumper?
if not
-2.Can I ground the brown wire to the Bumper or somewhere with a small screw?
-3.Where Should I check for grounding of rear lighting?
Sorry, topic has been covered so many times. I couldn't find any thing conclusive.
Moderator
Joined: Jan 2001
Posts: 56,984
Likes: 2,738
From: Virginia
The brown wire is the hot wire for the lights. Ground it and you will blow the fuse.
How many wires does the light in the link have? If it has one, tie the brown wire to it, the light grounds through the bumper. If it has two, put one of the wires to the brown wire and bolt the other wire to a good ground somewhere.
How many wires does the light in the link have? If it has one, tie the brown wire to it, the light grounds through the bumper. If it has two, put one of the wires to the brown wire and bolt the other wire to a good ground somewhere.
Moderator
Joined: Jan 2001
Posts: 56,984
Likes: 2,738
From: Virginia
It's going to be the bulb to the bumper, or the bumper to the frame, or the frame to the battery negative. It must be losing it somewhere. Get a short piece of wire and start jumping across metal pieces to see what you get. Like touching the bumper to the edge of the light, touching the bumper to the frame, etc.
Moderator
Joined: Jan 2001
Posts: 56,984
Likes: 2,738
From: Virginia
Not sure the license plate lights had a factory ground did they? I want to say the taillight grounds are up behind the housings in the bed. And there may be a ground wire bolted to the frame over on the driver's side rear of the frame rail/crossmember.
Trending Topics
Moderator
Joined: Nov 2007
Posts: 22,415
Likes: 92
From: Denver Metro Area, CO
IIRC its ground is behind the LH tail light assembly (but Ford used at least two specific locations behind the assembly for that ground over the years, and I don't remember what they are or when they changed).
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Thread Starter
|
Junior User
Joined: Mar 2013
Posts: 63
Likes: 0
They don't have any power. I will reverse the test light and see if they are grounded Sunday. If they are should I screw them to the bumper? Thannks for the help guys!
Moderator
Joined: Nov 2007
Posts: 22,415
Likes: 92
From: Denver Metro Area, CO

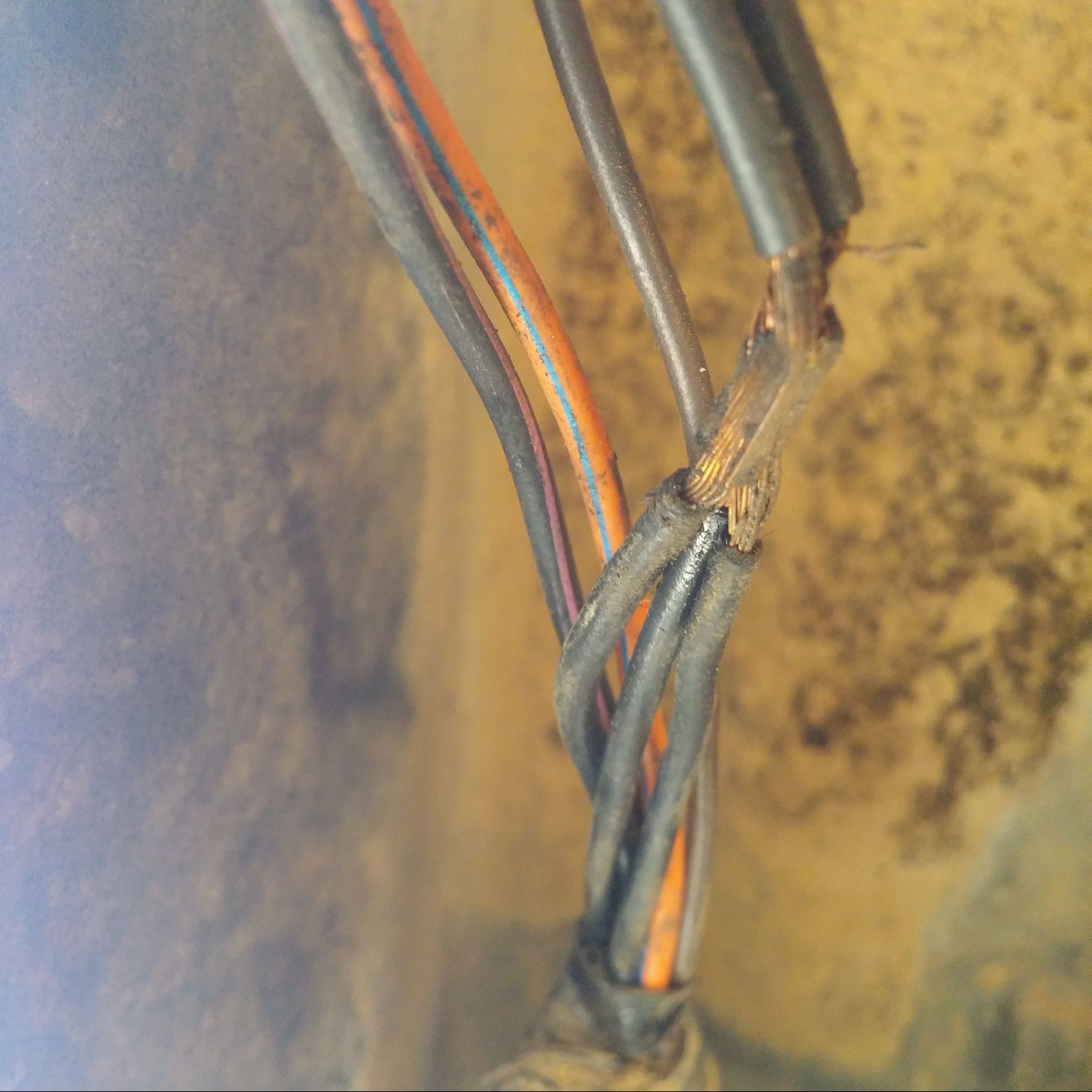

All the blacks are ground wires, and one of those from that bundle will get screwed to the truck's body someplace (which IIRC happens behind the LH tail light assembly someplace).
The colored wires will be powered at different times...
- Orange/light-blue = RH stop & turn/emergency signal lamp
- Black/Pink = Back-up lamp
- Brown = Side marker/parking lamps/running lamps/license plate illumination
The colored wires will be powered at different times...
- Orange/light-blue = RH stop & turn/emergency signal lamp
- Black/Pink = Back-up lamp
- Brown = Side marker/parking lamps/running lamps/license plate illumination
Thread Starter
|
Junior User
Joined: Mar 2013
Posts: 63
Likes: 0
Cool. So this turned out to be pretty simple for me. I tested the bumper for ground. It had ground. So I proceeded to file the holes where the light assembly goes. Wire brushed it for whatever reason and voila. There was some gross looking build up that wasn't allowing the lights to ground.
Lead Driver
Joined: Jul 2009
Posts: 6,477
Likes: 19
From: Sheffield, AL
Justin Doe,
Glad to hear you were successful. You might want to "rep" Franklin2 and ctubutis. They went "beyond the call" with regard to assisting you! Both have much knowledge and are willing to help.
Glad to hear you were successful. You might want to "rep" Franklin2 and ctubutis. They went "beyond the call" with regard to assisting you! Both have much knowledge and are willing to help.
