Ball Joint replacement gone awry
Hello, all. New member here wondering if anyone has seen anything like this.
I'm halfway through replacing the ball joints on my '03 F-150 4WD. When I pressed the new lower ball joint in, it's snap ring groove is ~1/8" above the top of the lower control arm surface. These are Moog 8695T joints. I've taken them in and compared with another new joint at the parts store and they seem to be correct. This implies that the control arms are not correct- they're too thin where the joint presses in. The old joints sat the way they should, with the snap ring flat against the arm. The old joints are definitely different than the 8695T's- they are shorter from the shoulder of the joint to the snap ring groove. I'm guessing that now I'll have to replace the lower control arms, as well.
I'm halfway through replacing the ball joints on my '03 F-150 4WD. When I pressed the new lower ball joint in, it's snap ring groove is ~1/8" above the top of the lower control arm surface. These are Moog 8695T joints. I've taken them in and compared with another new joint at the parts store and they seem to be correct. This implies that the control arms are not correct- they're too thin where the joint presses in. The old joints sat the way they should, with the snap ring flat against the arm. The old joints are definitely different than the 8695T's- they are shorter from the shoulder of the joint to the snap ring groove. I'm guessing that now I'll have to replace the lower control arms, as well.
Thread Starter
|
New User
Joined: Jul 2014
Posts: 7
Likes: 0
Pics
Here's the old vs new joints,

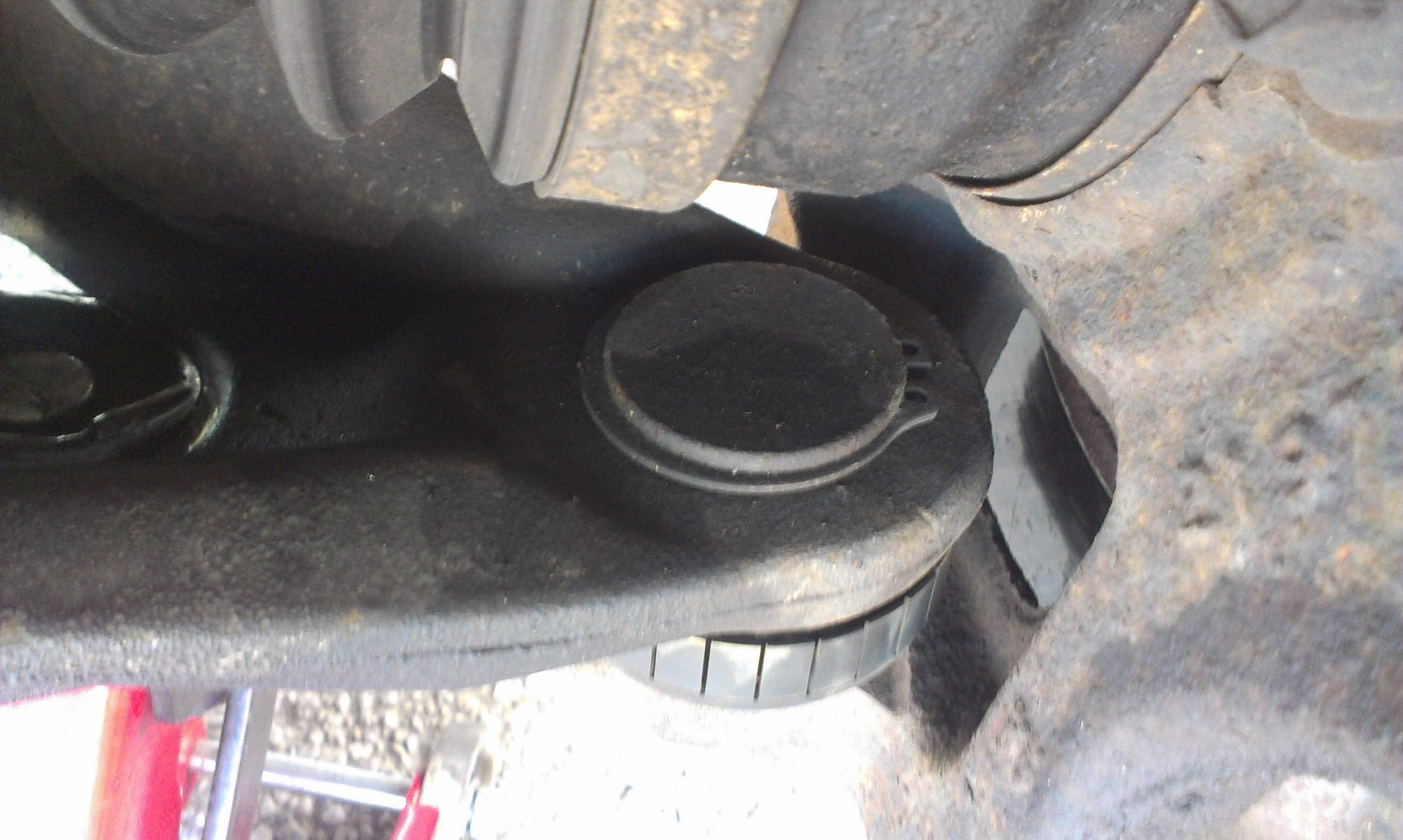

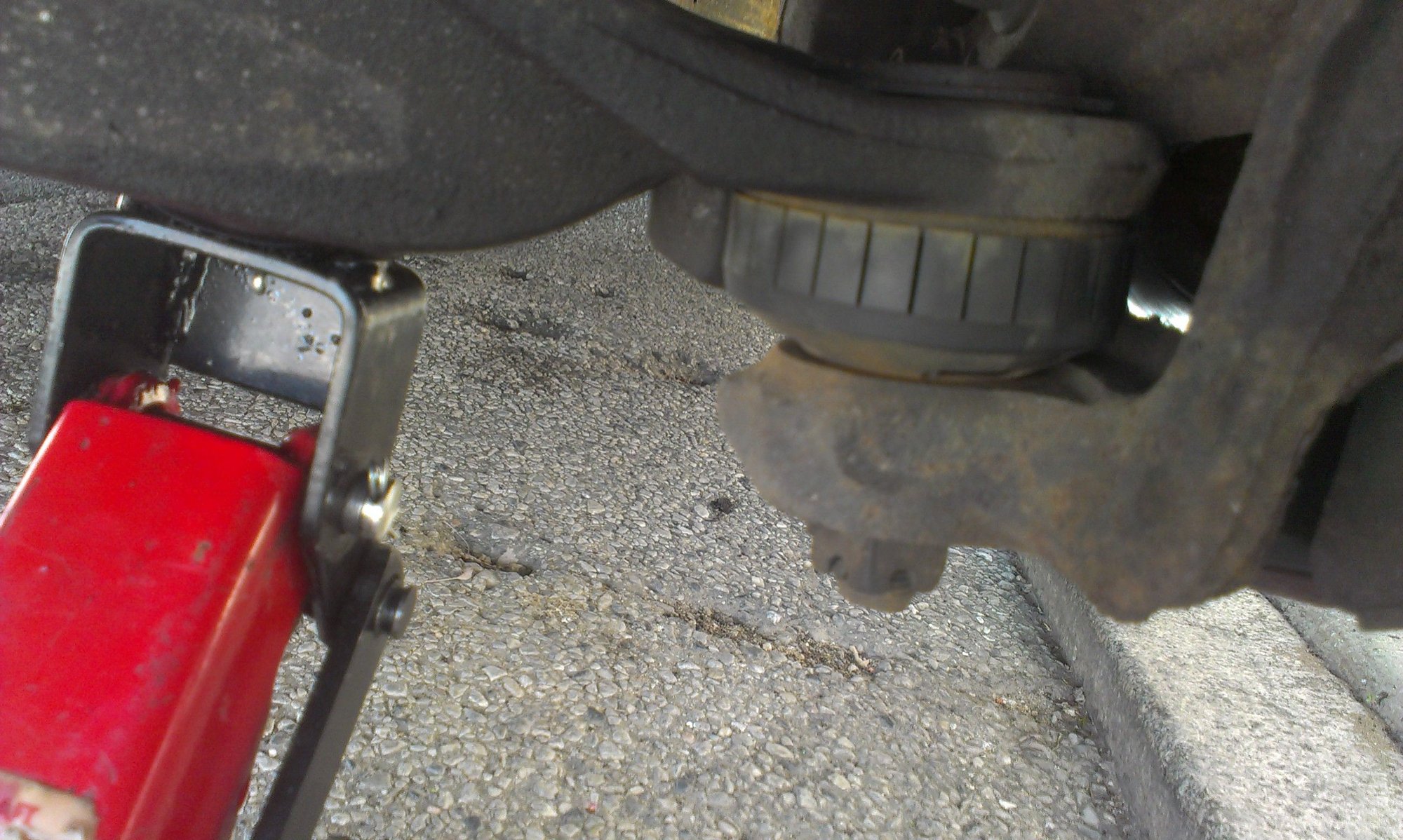

Here's the joint that I installed. Note that if I had the snap ring installed, there would be a gap between it and the lower control arm;
As to what the old joint or arm are supposed to be for, I have no idea. Perhaps a PO replaced the LCA's and got a weird off brand that had different specs...
Here's the joint that I installed. Note that if I had the snap ring installed, there would be a gap between it and the lower control arm;
As to what the old joint or arm are supposed to be for, I have no idea. Perhaps a PO replaced the LCA's and got a weird off brand that had different specs...
Thread Starter
|
New User
Joined: Jul 2014
Posts: 7
Likes: 0
Me too. I got them from RockAuto. I took both old and new into the local Napa and compared. The Napa part had the same dimensions as the new Moog part, so I have to guess that the old parts are the weird ones. I'll double check at a different parts house tomorrow. Anyone have a caliper handy? My Lower control arm measures 0.582" thick. Old ball joint shoulder to snap ring is 0.634", Moog joint is 0.698". Plus or minus a couple thousandths
Odd that the old joint is still longer than the thickness of the arm. Looking closely at the still assembled passenger side shows that there is probably a little clearance between the arm and the ring.
Odd that the old joint is still longer than the thickness of the arm. Looking closely at the still assembled passenger side shows that there is probably a little clearance between the arm and the ring.
Freshman User
Joined: May 2003
Posts: 42
Likes: 0
From: Baltimore, MD
Here's the old vs new joints,
Here's the joint that I installed. Note that if I had the snap ring installed, there would be a gap between it and the lower control arm;
As to what the old joint or arm are supposed to be for, I have no idea. Perhaps a PO replaced the LCA's and got a weird off brand that had different specs...
Here's the joint that I installed. Note that if I had the snap ring installed, there would be a gap between it and the lower control arm;
As to what the old joint or arm are supposed to be for, I have no idea. Perhaps a PO replaced the LCA's and got a weird off brand that had different specs...
I don't have any pics of the new ones in yet.. can submit new pics with the new balljoint in a day or so..
OLD:
Thread Starter
|
New User
Joined: Jul 2014
Posts: 7
Likes: 0
I checked another new part at CarQuest and theirs is the same as the new Moog parts.
Fourty03, are you saying that your new joints had that big gap when installed? I'm starting to think that this is just the way it is.
I'm certain that if I had dropped this off at any of the local shops they would have slapped the parts in and never thought twice. That's why I do the work myself, though.
Fourty03, are you saying that your new joints had that big gap when installed? I'm starting to think that this is just the way it is.
I'm certain that if I had dropped this off at any of the local shops they would have slapped the parts in and never thought twice. That's why I do the work myself, though.
