Instrument Cluster Cross-compatibility

Reply Subscribe

Thread Tools

Search this Thread

Dec 2, 2012 | 04:57 PM

#16

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by ncranchero

Will you clarify that Bill? Mine is a 94 4.9L and I'll be looking for a tach cluster. I don't know if they ever put a tach in a 4.9L truck.

The IP wiring harness is not grounded for a 4.9L but is for all V8's.

Dec 2, 2012 | 05:14 PM

#17

ncranchero

Postmaster

Joined: May 2003

Posts: 3,310

Likes: 9

From: E.Lincoln County, NC

Glad you mentioned the difference. Now, C101 appears to be the bulkhead connector so the ground shown "should" be in the engine harness, right? Thus the cluster harness should be pinned accordingly and the clusters still interchangable?

Dec 2, 2012 | 06:11 PM

#18

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by ncranchero

Yes the clusters are interchangeable.
I think the ground takes place in the engine harness.

Dec 2, 2012 | 06:17 PM

#19

ncranchero

Postmaster

Joined: May 2003

Posts: 3,310

Likes: 9

From: E.Lincoln County, NC

Had me a bit worried about finding a 4.9L cluster there for a minute!

Dec 2, 2012 | 06:21 PM

#20

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by ncranchero

Had me a bit worried about finding a 4.9L cluster there for a minute!

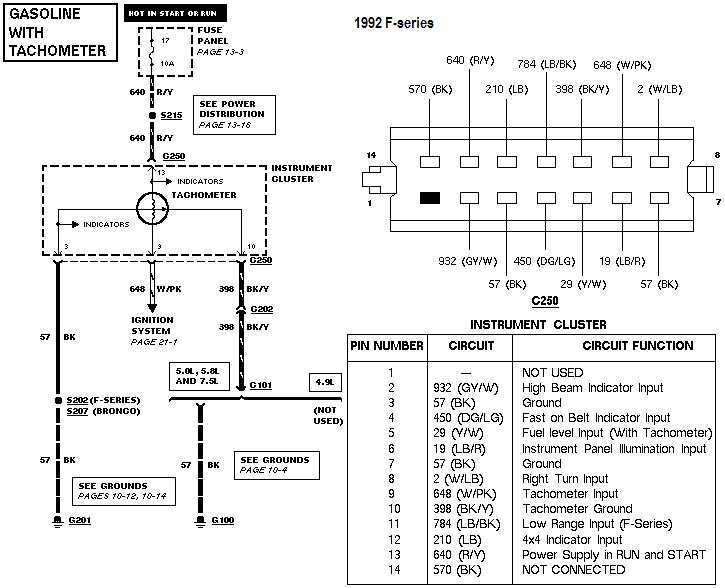

I just added a diagram to show that in my last post above. You might have to hit reload to see it.

Jan 18, 2014 | 04:12 PM

#21

boss302429

New User

Joined: Jan 2014

Posts: 1

Likes: 0

Does anyone know if a gauge cluster from a 1991 ford explorer would fit in a 1989 F150? they look the same from the pics I've looked at

Jan 18, 2014 | 06:34 PM

#22

Evan_P

Logistics Pro

Joined: Mar 2012

Posts: 3,507

Likes: 121

From: Oregon

Doubt it. I am fairly sure they are different in size.

Jan 18, 2014 | 06:41 PM

#23

Eddiec1564

Cargo Master

Joined: Mar 2007

Posts: 2,935

Likes: 34

From: Arcadia, Fla

Quote:

Originally Posted by boss302429

Does anyone know if a gauge cluster from a 1991 ford explorer would fit in a 1989 F150? they look the same from the pics I've looked at

Good question, I have a 93 Explorer and 89 Bronco2, never checked over compatibility of the clusters from the F-series.

Going to check it out tommaro as now as I am curious.....

FTE Stories

Ford Trucks for Ford Truck Enthusiasts

10 Ugly Ford Trucks That We Still Kinda Love

Joe Kucinski

10 Things Every Truck Owner NEEDS (2026 Edition)

Michael S. Palmer

Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath

Verdad Gallardo

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

Joe Kucinski

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

Brett Foote

Top 10 Ford Truck Tragedies

Joe Kucinski

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

Brett Foote

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Michael S. Palmer

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Verdad Gallardo

10 Best Ford Truck Engines We Miss the Most!

Joe Kucinski

Jan 18, 2014 | 07:00 PM

#24

mefast

Senior User

Joined: Oct 2013

Posts: 259

Likes: 0

From: Southwestern, Ontario

I swapped a '96 gauge cluster into my '95 and it seems to be working great so far *knocks on wood* Both trucks had the 4.9l engine. I have pictures of the two clusters on my build thread here: https://www.ford-trucks.com/forums/1...ld-thread.html

Jan 18, 2014 | 09:22 PM

#25

Diesel_Brad

Fleet Owner

Joined: May 2009

Posts: 21,437

Likes: 76

From: Gilbert, PA

Quote:

Originally Posted by boss302429

Does anyone know if a gauge cluster from a 1991 ford explorer would fit in a 1989 F150? they look the same from the pics I've looked at

No. Not even close

Jan 19, 2014 | 09:12 AM

#26

fordka

Cargo Master

Joined: Jan 2012

Posts: 2,304

Likes: 4

From: boonville ny

Quote:

Originally Posted by boss302429

Does anyone know if a gauge cluster from a 1991 ford explorer would fit in a 1989 F150? they look the same from the pics I've looked at

I have one from a 88 f150 id sell

Jan 19, 2014 | 10:56 AM

#27

Lead Head

Lead Driver

Joined: Jul 2007

Posts: 7,868

Likes: 9

From: Rhode Island

Quote:

Originally Posted by ncranchero

Will you clarify that Bill? Mine is a 94 4.9L and I'll be looking for a tach cluster. I don't know if they ever put a tach in a 4.9L truck.

You don't even need the cluster. Just get the tach module and gauge module out of a tach cluster and put them into yours. It'll work, my buddy with a 4.9 did it.

Feb 6, 2014 | 03:30 PM

#28

mrrish79

Senior User

Joined: Oct 2013

Posts: 411

Likes: 0

So I have a 97 F250HD. If I want to change out the cluster to have a tach I need to get one from a 96-97 Bronco/F150/F250/F350? 94-95's wouldn't work?

May 14, 2019 | 11:19 AM

#29

neanderpaul

New User

Joined: May 2019

Posts: 4

Likes: 0

5 years has passed

I realize five years has passed. I’m looking for a little tech-support here with my 94 F150. I have a 92 cluster.

Can anyone hold my hand on what modifications I would need to do to my 92 tach cluster to get it to work in my 94?

It will not charge or run properly with the 92 cluster in.

I swapped the 94 cluster without any of the gauges back in and it runs properly

Thanks in advance.
