Instrument Cluster Cross-compatibility
New User
Joined: May 2019
Posts: 4
Likes: 0
Thank you
Man, thank you. I appreciate the diagrams. I am sorry but I still don’t understand. If you could hold my hand a little more I would appreciate it. Sorry. I am willing to follow instructions. Thank you thank you thank you
Fleet Owner
Joined: Aug 2005
Posts: 23,667
Likes: 301
From: Easton,Ks

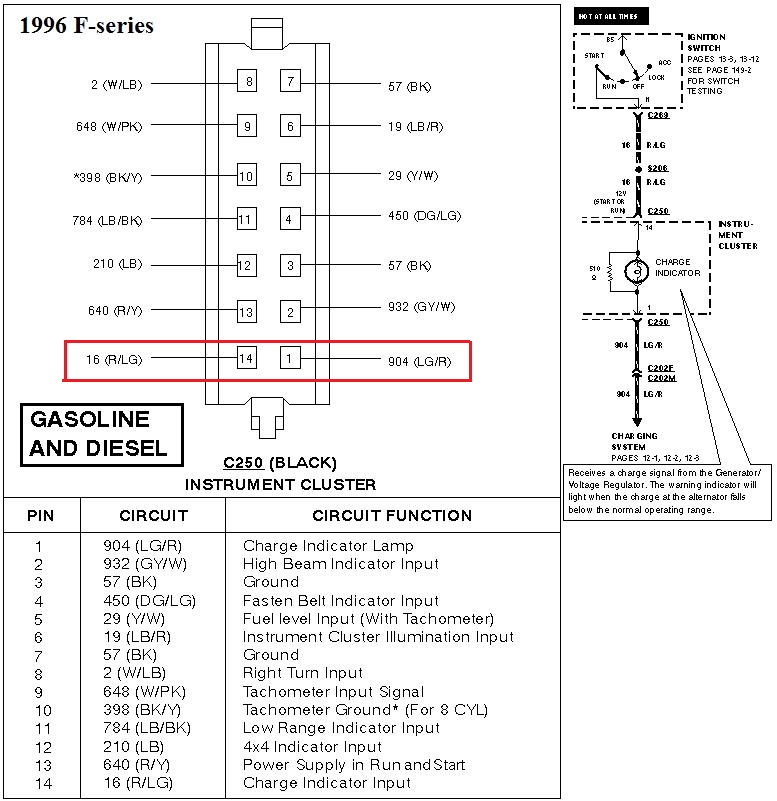

Move C250 pin #14 Circuit #16 to C251 pin #11.
Move C250 pin #1 Circuit #904 to pin #12 C251
Leave taped back C251 pin #12 Circuit #608.
Move C251 Pin #6 Circuit #29 to pin #5 C250.
Swap C251 pin #2 & #3.
Note you will not have an air bag light in the cluster with Circuit taped back.
/
Move C250 pin #1 Circuit #904 to pin #12 C251
Leave taped back C251 pin #12 Circuit #608.
Move C251 Pin #6 Circuit #29 to pin #5 C250.
Swap C251 pin #2 & #3.
Note you will not have an air bag light in the cluster with Circuit taped back.
/
More Turbo
Joined: Dec 2007
Posts: 641
Likes: 3
From: Umicorn UtopiaFantasyLand
Should work I have a 96 gasser I'm switching into my 4x4 96 460 truck It almost makes sense to get new guages make up your own panel and stick them in
Fleet Owner
Joined: Aug 2005
Posts: 23,667
Likes: 301
From: Easton,Ks
Would be something like this.
Move C251 pin #11 Circuit #16 to C250 pin #14.
Move C251 pin #12 Circuit #904 to pin #1 C250
Move C250 Pin #5 Circuit #29 to pin #6 C251.
Swap C251 pin #2 & #3.
The 1994 above is close to the 1996 except for the ABS circuit in the 1996.
Attachment 282514
/
Move C251 pin #11 Circuit #16 to C250 pin #14.
Move C251 pin #12 Circuit #904 to pin #1 C250
Move C250 Pin #5 Circuit #29 to pin #6 C251.
Swap C251 pin #2 & #3.
The 1994 above is close to the 1996 except for the ABS circuit in the 1996.
Attachment 282514
/
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Freshman User
Joined: Apr 2013
Posts: 28
Likes: 0
Ok everything works but gas gauge goes past full. Even tried switching back the fuel pins and it still goes past.
Ok found out the pin fuel fuel with tach did not have to be moved to the other plug, on a side note were did you get those pin outs? I have all data diy and they dont have diagrams like that.
Ok found out the pin fuel fuel with tach did not have to be moved to the other plug, on a side note were did you get those pin outs? I have all data diy and they dont have diagrams like that.
Last edited by Dizy5.0; Dec 7, 2019 at 03:36 PM. Reason: Update
Freshman User
Joined: Apr 2013
Posts: 28
Likes: 0
It did work yes. I updated my post. The fuel with tach was in correct plug. And the fuel without tach just stays as there is no connection on the printed board
