manifold vacuums
HI there guys I have another problem there are 3 manifold vacuum outlet on my E350 econoline, 351w 5.8l 1987 Ford motorhome. 1 next to the distributor, 1 next to the carburator and 1 next to the EGR valve Well the last one is giving me problems where does it connect and can I just block than one off? The PCV valve has 2 outlets the small one is blocked off but the big outlet is not connected where does that go. It's backfiring and not idling but starting really good. I'm guessing some hoses are not connected at the right place but which ones. I need help guys hope someone can Any info would be greatly appreciated Thanks
Posting Guru
Joined: Oct 2010
Posts: 1,199
Likes: 1
From: Missouri
The PCV valve runs to the big port under the front fuel bowl on the carburator.
Are you saying you don't have the EGR connected? If you don't then you can try connecting it to the port in this picture, the one closest to that little metal tag. The factory probably has some weird routing that runs through coolant switches and stuff, but from what I have read it will work like this. If it is already connected then leave it be.
Are you saying you don't have the EGR connected? If you don't then you can try connecting it to the port in this picture, the one closest to that little metal tag. The factory probably has some weird routing that runs through coolant switches and stuff, but from what I have read it will work like this. If it is already connected then leave it be.
Thread Starter
|
New User
Joined: Sep 2011
Posts: 19
Likes: 0
yes the EGR valve is connected . It's the PCV valve big outlet that I don't know where it connects to and the big hose from the back man vacuum next to the |EGR valve on the back of motor Both are major vacuums Sorry if it looks like I don't know much but carb was not my thing. Thanks for the pic Was that a 4180-c holley 4bb?
Posting Guru
Joined: Oct 2010
Posts: 1,199
Likes: 1
From: Missouri
yes the EGR valve is connected . It's the PCV valve big outlet that I don't know where it connects to and the big hose from the back man vacuum next to the |EGR valve on the back of motor Both are major vacuums Sorry if it looks like I don't know much but carb was not my thing. Thanks for the pic Was that a 4180-c holley 4bb?
Anyway, back to the PCV. Technically, a PCV valve wants full manifold vacuum; so it will function connected to any port that provides full manifold vacuum. However, the correct place to connect it is on the carb here here:
(The big port obviously)
Second: The big hose you are talking about it, is it connected to the end of *this*

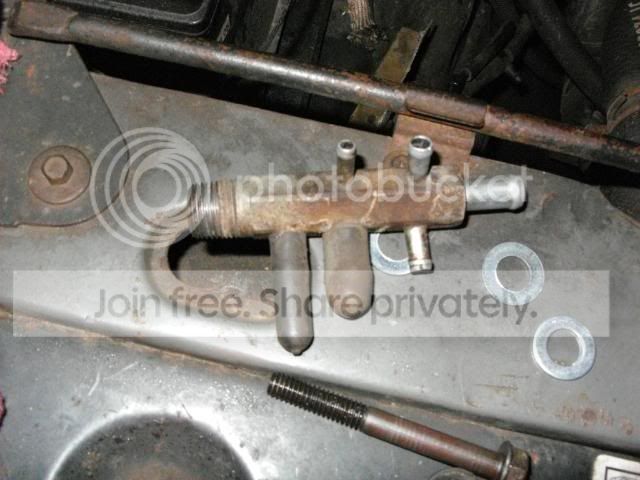

(This would be screwed into the intake manifold bellow the EGR valve basically)
If it is, then it should run to the brake booster. It would be a big hose, bigger than the PCV would need.
Thread Starter
|
New User
Joined: Sep 2011
Posts: 19
Likes: 0
Hi there thanks again for the info. I got it going. One of the hoses in the front of the carb was disconnected. It starts good and idles fine but when in gear it backfires It has no power. The big hose in the back of the motor on the drivers side is still not connected but closed shut. It is a big vacuum hose. Will try to do what you said tomorrow hope it works. The air pump is off Will that prevent the motor from working good? The hoses to the bowl vent are connected but they sort of fold in half. Is it possible to send me a pic on how they should be? Thanks again
Posting Guru
Joined: Oct 2010
Posts: 1,199
Likes: 1
From: Missouri
It will run fine without the air pump. I don't know why it would backfire in gear; if it is running correctly when in park. It's most likely a carb issue though, or maybe another vacuum leak. You don't want any uncapped vacuum ports or disconnected hoses.
Here are some pictures of other 4180 setups, I don't know if any of them will help you. I can't find any that are really clear.
If you could upload pictures of your engine it might help, if you have a digital camera and can get the pictures on your computer you can upload them with: imgur: the simple image sharer
Here are some pictures of other 4180 setups, I don't know if any of them will help you. I can't find any that are really clear.
If you could upload pictures of your engine it might help, if you have a digital camera and can get the pictures on your computer you can upload them with: imgur: the simple image sharer
Thread Starter
|
New User
Joined: Sep 2011
Posts: 19
Likes: 0
Hi there I like these pictures. On the first picture you have a white line going to the skinny little outlet above right of the electric choke. Where does that go and for what is it? On the other pic it seems that it is blocked off can we do that on our motor. Is it possible to see the other side of the carb showing the back of the carb with the EGR connected? I see that you have showing on the 2nd pic that the bowl vents have no VTW valve is it ok for us to take does off too. You are being extremely helpful hope to talk to you soon Thanks
