Basic electronics question
Thread Starter
|
Junior User
Joined: Oct 2010
Posts: 52
Likes: 0
From: Westminster, Ca, USA
Basic electronics question
i ws under the truck replacing the shift lever seal on the tranny
when i finished i noticed a wire hanging. it was near the rear of a connector on the tranny by looking at the connector it wasnt to far of to think it may go there.
i decided not to plug it in being there were about three prongs on it and i only had one loose wire
i go to start it up and nothing
hmm i said what the heck and pluged it in one of the prongs ..
it worked she turned over
i think the rear connector on the tranny is for the back up lights
should i run a big guage wire from the ground of the battery to the car body or a engine screw
i followed that lost wire and it goes to some kind of relay or converter than to ground but it maybe at best a 16 guage kind of a small wire for a ground i thought
kind of odd
any advice
its not a ford engine or tranny ( its a 440/a727b)
so the wiring may be off a little..
thanks guys
-Kurt
when i finished i noticed a wire hanging. it was near the rear of a connector on the tranny by looking at the connector it wasnt to far of to think it may go there.
i decided not to plug it in being there were about three prongs on it and i only had one loose wire
i go to start it up and nothing
hmm i said what the heck and pluged it in one of the prongs ..
it worked she turned over
i think the rear connector on the tranny is for the back up lights
should i run a big guage wire from the ground of the battery to the car body or a engine screw
i followed that lost wire and it goes to some kind of relay or converter than to ground but it maybe at best a 16 guage kind of a small wire for a ground i thought
kind of odd
any advice
its not a ford engine or tranny ( its a 440/a727b)
so the wiring may be off a little..
thanks guys
-Kurt
Laughing Gas
Joined: Jan 2008
Posts: 758
Likes: 0
From: Alabama
that doesn't sound like any ground I ever heard of. To small of a wire. Could it be a neutral safety switch? I don't know that trans.
EDIT: Well I guess it could be a ground for a component. But was thinking you ment chassis ground. I would think its some type of safety device on the trans. Don't see how a wire off the backup lights would keep the engine from turning over.
EDIT: Well I guess it could be a ground for a component. But was thinking you ment chassis ground. I would think its some type of safety device on the trans. Don't see how a wire off the backup lights would keep the engine from turning over.
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
Well, if it's not a Ford engine or tranny, what kind is it?????
Never mind we don't want to know!
The wires you are talking about are probably the connections for your "Neutral Switch and Back up Lights Switch."
If you don't know what the thing is out of, then you won't know the wire colors or hook ups....so it's hard to help you. The ignition switch will not work until the switch is wired direct with out the Neutral Saftery switch or you hook this up right.
Here's a drawing of the Ford NSS hook-ups:
Never mind we don't want to know!
The wires you are talking about are probably the connections for your "Neutral Switch and Back up Lights Switch."
If you don't know what the thing is out of, then you won't know the wire colors or hook ups....so it's hard to help you. The ignition switch will not work until the switch is wired direct with out the Neutral Saftery switch or you hook this up right.
Here's a drawing of the Ford NSS hook-ups:
Cargo Master
Joined: Jun 2001
Posts: 2,571
Likes: 22
From: Oxford, Indiana

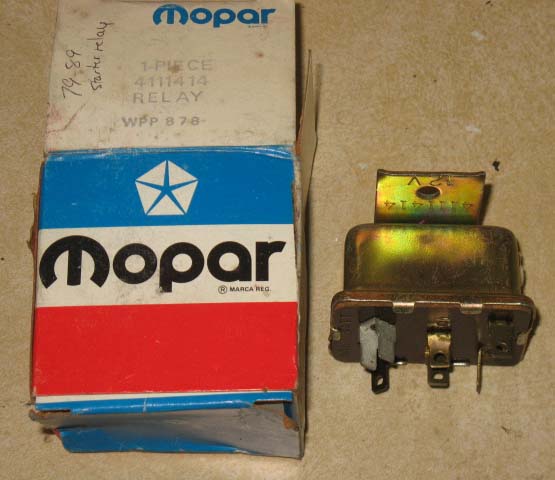

That is definitely your neutral safety/reverse light switch. The center terminal should be for the neutral safety switch. The switch connects that terminal to ground when the transmission is in park or neutral and provides a ground path for the starter relay circuit. That rectangular relay that you mentioned is a standard Mopar starter relay. It probably looks like this:
The other two terminals are for the reverse light switch. If you want to get the proper pigtail that plugs into the switch, Napa has it available as part# ECH EC187. It looks like this:
and you can find it here:
Store Locator | NAPA Online
The other two terminals are for the reverse light switch. If you want to get the proper pigtail that plugs into the switch, Napa has it available as part# ECH EC187. It looks like this:
and you can find it here:
Store Locator | NAPA Online
Thread Starter
|
Junior User
Joined: Oct 2010
Posts: 52
Likes: 0
From: Westminster, Ca, USA
You guys nail it every time.
Sorry about that Julies i thought saying 440 would give a clue to what engine it was. its a dodge,mopar. same with the tranny.
Blue, yep i plugged it in the center thats when it turned over. Im going to take the advice and do it the right way
got lucky on that one
sounds like its about time to look at the wiring (easier said than done)
im still trying to take it for a joy ride but things keep popping up
its all good.
Thanks guys!
-have a good night.
-Kurt
Sorry about that Julies i thought saying 440 would give a clue to what engine it was. its a dodge,mopar. same with the tranny.
Blue, yep i plugged it in the center thats when it turned over. Im going to take the advice and do it the right way
got lucky on that one
sounds like its about time to look at the wiring (easier said than done)
im still trying to take it for a joy ride but things keep popping up
its all good.
Thanks guys!
-have a good night.
-Kurt
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
But, I'm glad Joe was able to give you the right answer.
Trending Topics
Thread Starter
|
Junior User
Joined: Oct 2010
Posts: 52
Likes: 0
From: Westminster, Ca, USA
that comes up in my google search lol
we know about same on this one ..problem is i need to learn it!
you guys nailed it .. i comfirmed it
im out getting the part today with some other items.
my 3 1/2 year old son just loves the thing im trying to install some seat belts.
sound like i need to do another post learn teh seat belt law for kids.
time for some coffee and get digging than youll really hear me squawking.
i can spend some hours with you guys
have a good day guys
-Kurt
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Logistics Pro
Joined: Feb 2005
Posts: 3,952
Likes: 117
From: Upper Left Coast
should i run a big guage wire from the ground of the battery to the car body or a engine screw
Since the highest current draw "items" are on the engine block (starter & ALT/GEN), you should make the engine block your common ground.
That's where the connections should be the cleanest & tightest!
I don't like grounding lights and other accessories to the body, frame etc, because all those parts eventually get loose, and rusty etc...
It's like grounding through a trailer hitch. Eventually the trailer lights stop working because the hitch gets a little rusty.
The ground connection must be at least as good as any "+" power connection and the ground wire must be big enough to handle at least the maximum amount of AMPS that all the accessories would draw at the same time.....
