C5AE-9425-B is the intake manifold ID number. 5L30: It was cast on November (L) 30, 1965 (5) / A = January, M = December, the letter I is skipped.



I guess I need numbers help. I found the vin number on the frame and its not the same as my Door. The engine had been changed (that I knew about) to an 80's era 302 and I have replaced the transmission with a C4.

ND gave me the info on the previous number but here is the NEW INFO
F10AN768649 and the number off the block is EOAE D3C00 4B20
I know there are to many numbers for the block- but that's what's there.

Is there another location that can tell me what was the original engine/drive train?
I get F100 black Norfork in Oct 1965 Can I get more?



Your framerail VIN decodes as: F10 = F100 truck, 2 wheel drive, A = 240 cubic inch I-6, 1 bbl engine, N = Norfolk, VA assembly plant, 768649 = October, 1965 build date as a '66 year model truck. The rest of the information would have to come from the original, missing, Warranty Plate, or any tags attached to your differential or transmission, assuming that they are original, which you suspect they are not. E0AE is a 1980 or later engine. ND or someone else will have to give you the rest of that decode. Hope this helps some.



Hi guys, looking for some decode help /info on this 66 f 100



So far I have:
F10 = F100 2-wheel drive
B = 300 Cid 1v (150 HP @ 3600 RPM)
C = Ontario, Canada
781398 = (Aug 1965)

Engine Block, this is the lower pass side # last digit is an (F) Not sure if its an original engine 300 or 240 and I haven't got the # off the diff or trans yet




Thanks if you have any info.



F10 = F100 2WD

B = 300 1V I-6.

C = Oakville Ontario Canada Truck Assembly Plant.

781398 = 1966, assembled November 1965.

129" Wheelbase.

W = Marlin Blue.

F100 2WD, 5,000 lbs. GVWR

B81: B = Medium Blue Crush Vinyl & Medium Blue Cody Pattern Woven Plastic / 81 = 81B Custom Cab.

C = Ford type 3.03 3 Speed Manual all Syncromesh Transmission.

09 = Ford 9" Rear Axle / 3.70-1 / No Limited Slip / 3,300 lbs. Rear Axle Capacity.

5,000 lbs. Gross Vehicle Weight Rating.

150 net HP @ 3,600 RPM

B78652:

B7 = FoMoCo of Canada Ltd - Pacific Lincoln/Mercury Division, where the original selling dealer ordered the truck from.

8652 = Domestic Special Order number, the truck was ordered special by the original purchaser, not "bought off the lot."



Thank you very much Bill that was quick, appreciate the info on this. Well I have had the truck about 8 years always had it parked down at the cabin for hauling fire wood and going out fishing using it around the old place always took care of it. I Have had a few cars on and off and never ran the vin numbers much on them. However last year I picked up a sweet little 67 2 Door coupe, the guy that sold it to me knew nothing on it he picked it up on a swap/trade I got curious so ran the vin # and turned out to be a 67 Acadian Canso, Had it documented and was 1 of 535 not a super rare car like the (SD) but sure well worth looking into Vin numbers before you go to far.
Thanks again Dave.



1965/74 240/300 share the same block, the bore is the same, the stroke is different.

240 was the standard equipment engine in 1965/74 F100/350 & 1965/71 Galaxie/LTD, 300 not installed in cars.

C5AE block casting number was used 1965/66 in cars/trucks.

240 cancelled at the end of the 1974 model run.

Acadian Canso-Canada, basically a US Chevy Nova with Chevy/Pontiac styling cues.



Thanks again, be great if it was the correct motor for some reason I thought it was the 240, I guess the only way be 100% is to measure the stroke.
Transmission tag is a HEG-Z {KO13365} again not sure if its original with the truck. Did not find the diff tag on the 9, 1 rib down 3 across, stamped C5AW 4668A all I got on it.

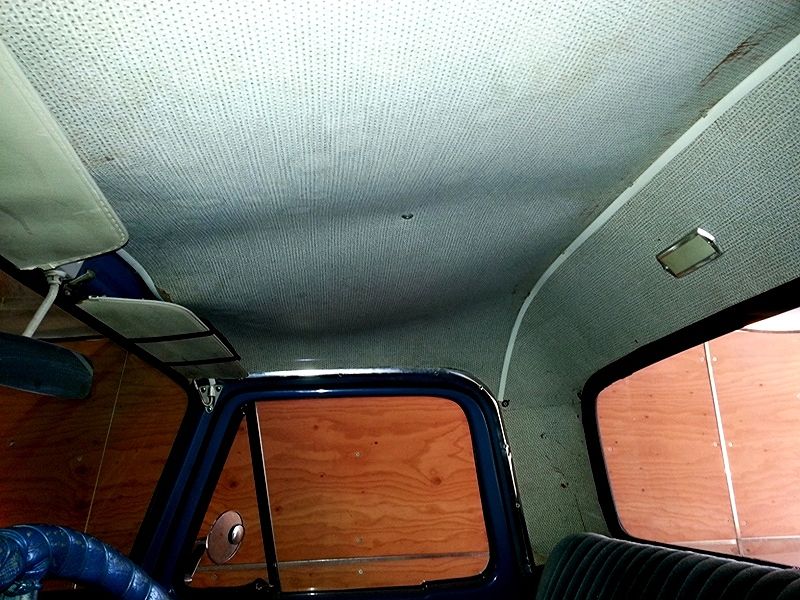

Another quick question I had on this particular headliner was it standard with custom cab, an option or just some aftermarket add on?

B81: B = Medium Blue Crush Vinyl & Medium Blue Cody Pattern Woven Plastic / 81 = 81B Custom Cab.



Thanks again, Dave



Headliner correct, as Custom Cabs/Rangers came with perforated headliners.

HEG-Z = Ford type 3.03 3 speed manual medium duty all syncromesh transmission = 1966 F100/250 300/352 w/129" wheelbase.

9" rear axle ID tag originally located at approx. 5 o'clock under one of the bolts that retains the carrier (aka pumpkin) to the housing.

By now, many are missing.



That's good, well my plans for this truck re build has taken a bit of a turn, the more info I get the better I feel keeping it on the originality side with just some minor modifications. I worked on a few chevys but I acquired 2 Ford trucks the other a 84 F150 4x4 S/B (Wild Rose Edition) it's a Alberta dealer package on it, but looking forward to get started on the 66 right away. Keep up the good work thanks.



Does anyone know what the code C08 for transmission on the door data plate means? Trying to figure out if I have the original transmission or not. Thanks



Can anyone decode this for me? Information on door info plate:
129 B F100 381 C08 05000 172 4000 72

Thanks



129" Wheelbase.

B = Caribbean Turquoise.

F100 2WD, 5,000 lbs. GVWR

381: 3 = Medium Green Crush Vinyl & Medium Green Wicker Pattern Vinyl / 81 = 81A Standard Cab.

C = Ford type 3.03 3 Speed Manual all Syncromesh Transmission.

08 = Ford 9" Rear Axle / 3.50-1 / No Limited Slip / 3,300 lbs. Rear Axle Capacity.

5,000 lbs. Gross Vehicle Weight Rating.

172 net HP @ 4,000 RPM

72 = San Jose (NorCal) Ford District Sales Office, where the original selling dealer ordered the truck from.



Wow! That's pretty good. Thanks for the info!



F11DR648287
120 J F110 N81 N A9
5600 172 4000 73L
Thanks in advance.
