Quick question - drum brake reassembly
Thread Starter
|
Postmaster
Joined: Jul 2008
Posts: 2,922
Likes: 9
Quick question - drum brake reassembly
I'm finally getting back to my project and trying to reassemble the front brakes which I took off a while back. When the backing plate goes back on the spindle, is the wheel cylinder in the 12 oclock position/up? or in the 6 oclock position/down? The backing plates are on the workbench and I'm afraid I've mixed them up. Thanks for the help.
Thread Starter
|
Postmaster
Joined: Jul 2008
Posts: 2,922
Likes: 9
Thanks Julie. At least I got it half right. I have the small shoe towards the rear. I'll break it down and change it and I'll know better tomorrow when I move to the passenger side. Thanks for mentioning the correct position of the shoes as I did not discern a difference as I laid them out prior to assembly.
Elder User
Joined: Nov 2008
Posts: 915
Likes: 1
From: Gunbarrel, Co.
Maybe this will help as well:

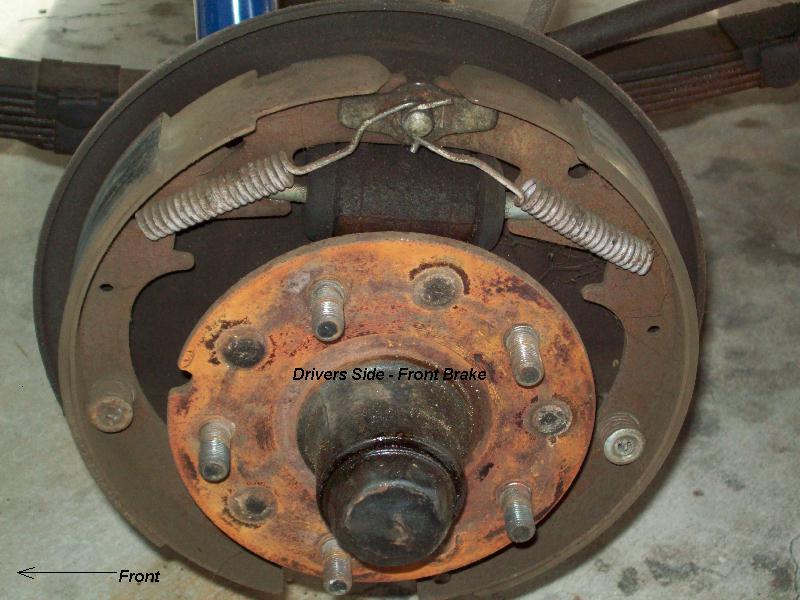

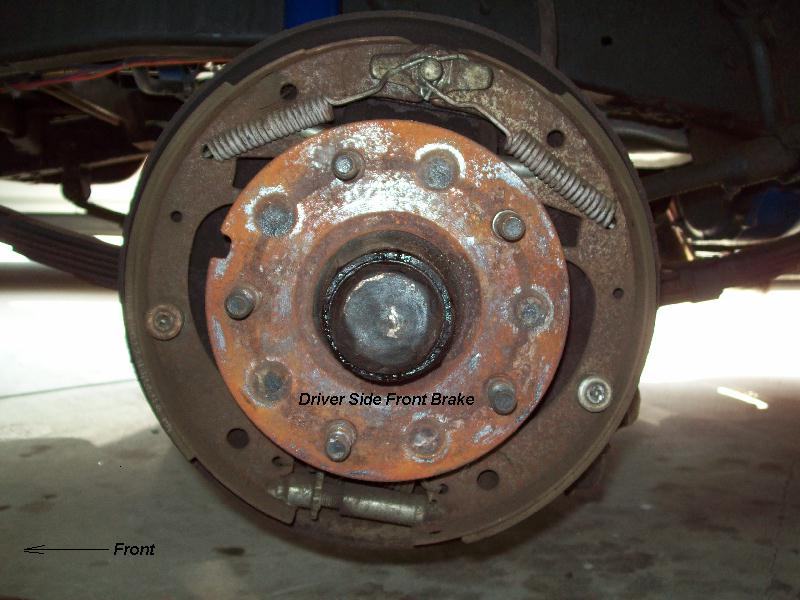

Drivers side - note small shoe goes on front:
Attachment 23491
Attachment 23492
Drivers side - note small shoe goes on front:
Attachment 23491
Attachment 23492
Fleet Owner
Joined: Jul 2004
Posts: 27,300
Likes: 1,059
From: NM
Don't think so, I can see the drag link in the second one and rears don't have the "cup" over the bearings. The shoes have cutouts for the e-brake links, tho.
Trending Topics
Elder User
Joined: Nov 2008
Posts: 915
Likes: 1
From: Gunbarrel, Co.
I stand corrected.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
Hey, it's saturday night!!!!!!!! Good eyes Ross. The blue tube is the shock as well..I've got so many danged pictures that it wouldn't suprise me if I posted them bas ackwards though!
Brakes on the back (mine) are on the 9 3/8 rear and are self adjusting as well.
[/IMG]
