Rear defrost switch

I just got a switch for the rear defrost for a 91-94 Explorer,
Engineering Number F37B-19A328-AA
Part Number F3TZ18C621B
Supposed to be self contained with timer...just need power.

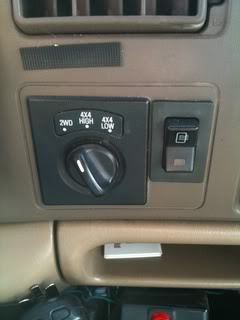

I plan on installing it in my F350 for mirror heat that I just installed.
It has 5 wires which means there is more to hook up than power in, out and ground.
Anyone have a schematic or the color codes for this?
How about rating for the switch? The mirrors only pull 1.4 amps total.

Here are the colors...

2 large (14g)
Brown w/ Lt blue stripe
Grey w/ lt blue stripe

3 small (18g)
Purple w/ Orange stripe
Lt Blue w/ Red stripe
Black ( I assume it's ground)

And Pics....







Thanks all!
Reply With Quote
  #2
Old 01-14-2010, 06:45 AM
ncranchero's Avatar
ncranchero ncranchero is offline
Postmaster

Join Date: May 2003
Location: E.Lincoln County, NC
Posts: 3,277
ncranchero has a good reputation on FTE.ncranchero has a good reputation on FTE.ncranchero has a good reputation on FTE.
Here's the circuit, have no idea in the switch rating but surely the mirror is less than the rear window grid.

Reply With Quote
  #3
Old 01-14-2010, 07:53 AM
shorod's Avatar
shorod shorod is online now
Postmaster

Join Date: Jun 2009
Location: Cedar Rapids, IA
Posts: 3,965
shorod has a great reputation on FTE.shorod has a great reputation on FTE.shorod has a great reputation on FTE.shorod has a great reputation on FTE.
It's hard to tell from the diagram above, but fuse 11 appears to be a 15-amp fuse so the switch should be good for at least that much current since there is probably a chance that the rear window defrost could be the only thing on that circuit that would be operational when the defrost circuit could short out, therefore all 15 amps could momentarily flow through the switch before the fuse would blow. Continuous current of the rear window defrost is probably in the neighborhood of 5 amps, you should have no problem using the switch for your mirrors.

-Rod
Reply With Quote
  #4
Old 01-14-2010, 10:56 AM
BillyBob69's Avatar
BillyBob69 BillyBob69 is offline
Post Fiend
Thread Starter

Join Date: Jul 2003
Location: Peyton, CO
Posts: 6,856
BillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to behold
Wow! Thanks guys! That is exactly what I needed. Now to find the time to mount it....wire it....etc.
Reply With Quote
  #5
Old 12-07-2015, 06:40 PM
rstev39147 rstev39147 is offline
New User

Join Date: Aug 2014
Posts: 1
rstev39147 is starting off with a positive reputation.
Part number for applicable wiring plug/harness

Quote:
Originally Posted by BillyBob69 View Post
I just got a switch for the rear defrost for a 91-94 Explorer,
Engineering Number F37B-19A328-AA
Part Number F3TZ18C621B
Supposed to be self contained with timer...just need power.
I plan on installing it in my F350 for mirror heat that I just installed.
It has 5 wires which means there is more to hook up than power in, out and ground.
Anyone have a schematic or the color codes for this?
How about rating for the switch? The mirrors only pull 1.4 amps total.

Here are the colors...

2 large (14g)
Brown w/ Lt blue stripe
Grey w/ lt blue stripe

3 small (18g)
Purple w/ Orange stripe
Lt Blue w/ Red stripe
Black ( I assume it's ground)

And Pics....







Thanks all!
Hi, I bought the switch but it didn't come with the wiring/plug. Would you happen to have a part number for that?
Reply With Quote
  #6
Old 12-07-2015, 07:24 PM
BillyBob69's Avatar
BillyBob69 BillyBob69 is offline
Post Fiend
Thread Starter

Join Date: Jul 2003
Location: Peyton, CO
Posts: 6,856
BillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to beholdBillyBob69 is a splendid one to behold
Quote:
Originally Posted by rstev39147 View Post
Hi, I bought the switch but it didn't come with the wiring/plug. Would you happen to have a part number for that?
I'm afraid I don't. I got lucky and mine came with it.
You can do searches like in Google or eBay for pigtails or..... Salvage yard or..... Just connect direct to the back of the switch. With the pics n diagram you should be able to see what goes where. At first I was thinking of connecting direct to the back of the switch until I saw the part with the pigtail.
