Factory Tow hooks
Thread Starter
|
Tuned
Joined: Oct 2003
Posts: 390
Likes: 2
Factory Tow hooks
This is for NUMBER DUMMY. First of all thanks for all your information you provide on this forum. I went to my local wrecking yard yesterday, they have totally re-organized it and brought in some 1978-79 Bronco's and 1977-79 F 150's. I found four Broncos with front tow hooks and two F150 4x4 with tow hooks. They all look the same so must be factory. The guy in the yard said they were rare to find on the 78-79 bronco and F150. Is this true? I pulled a set off of a 1979 Bronco and a 1979 F150 Here are the numbers, can you confirm that these are Ford parts. One set of tow hooks read L 1257 US382 Z11 and R 1257 US382 Z12. The other set reads 1257 L US328 82 and 1257 R US328 82.
Another reason I believe they are ford factory: The holes in the tow hooks match up perfectly with the factory holes in the frame of both Bronco and F150. Also what are the chances that five fords with front tow hooks have the exact same tow hook.Thanks again for any information. OEM
Another reason I believe they are ford factory: The holes in the tow hooks match up perfectly with the factory holes in the frame of both Bronco and F150. Also what are the chances that five fords with front tow hooks have the exact same tow hook.Thanks again for any information. OEM
Senior User
Joined: Apr 2008
Posts: 176
Likes: 0
From: Arizona
You may or may not have done this, but sending Number Dummy a PM will get you a much quicker response. At the same time, thanks for sharing by posting, I'm interested in this information as well.
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois

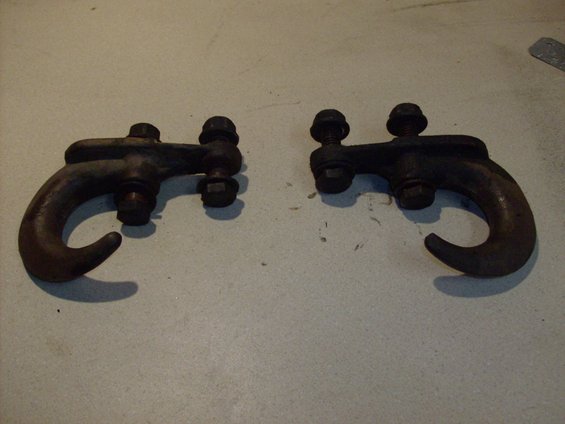

Two types of factory tow hooks that looked like these. You'll notice that the hooks are offset as well. If you ever find a set of straight hooks they are not factory correct.
NOS set in my basement.
This is the more common type.
I can't tell you the part numbers because I don't have a book yet..... hint, hint Bill.
NOS set in my basement.
This is the more common type.
I can't tell you the part numbers because I don't have a book yet..... hint, hint Bill.
MSEE
Joined: Apr 2004
Posts: 10,386
Likes: 35
From: Austin, TX
ranger429 - if you don't mind me asking, how much did those run you? I remember a thread on here a long time ago on these. In fact, I remember it turning into a huge flame war, because while they're usually expensive in the first place (from what I've seen at least), some guy on here was charging a ridiculous amount of money on eBay for them while providing false information. That thread got pretty wild! Sorry for the thread hijack!
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois
fmc, I traded a set of red light up visors for them that I got out of a parts Bronco I stripped. I also remember that thread your talking aboout.
Postmaster
Joined: Jul 2001
Posts: 4,956
Likes: 10
From: MD
D9TZ17A954A - 1979 F150 4/W/D from Serial #FE0001 - RH
D9TZ17A955A - 1979 F150 4/W/D from Serial #FE0001 - LH
Trending Topics
Post Fiend
Joined: Apr 2008
Posts: 8,261
Likes: 15
From: Big Sky Country
You're wrong, the D8 tow hooks are the less hefty hooks, the D9 tow hooks are more beefy, that's plainly obvious in Ranger429's pics of his D9 tow hooks and D8 tow hooks below.
RARE Ford F Series Truck Bronco 4x4 Tow Hooks 73 79 | eBay
RARE Ford F Series Truck Bronco 4x4 Tow Hooks 73 79 | eBay
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
Logistics Pro
Joined: May 2010
Posts: 4,436
Likes: 19
From: Regina, Saskatchewan
Brining back a thread from the dead.
Does anyone have measurements (centre to center) for these old Tow hooks?
how about a picture of them installed on a truck?
lastlty, do these fit in the same factory locations on an F250 as opposed to an F150/Bronco?
ive been looking up under my F250 and I don't see a great spot to mount something like this given that I've got leaf suspension on all four corners. Wondering if this was an F150 option only.
Does anyone have measurements (centre to center) for these old Tow hooks?
how about a picture of them installed on a truck?
lastlty, do these fit in the same factory locations on an F250 as opposed to an F150/Bronco?
ive been looking up under my F250 and I don't see a great spot to mount something like this given that I've got leaf suspension on all four corners. Wondering if this was an F150 option only.
