keyless entry install
can anyone tell me if the power door locks are positive trigger or negative trigger?
I'm planning to tap onto the switches. Hopefully there are relays between the switches and the lock actuators so I dont have to add relays.
I need a manual bad - where did some of you get the CD?
pm me if needed and let me know where I can get this.
Tom
I'm planning to tap onto the switches. Hopefully there are relays between the switches and the lock actuators so I dont have to add relays.
I need a manual bad - where did some of you get the CD?
pm me if needed and let me know where I can get this.
Tom
Former ******
Joined: Nov 2004
Posts: 4,901
Likes: 2
From: Salt Lake City, Utah
If you download a wiring diagram from the kits manufacturer that should tell you. I have a similar kit on mine, but I can't remember the details of that door wiring.
You do not tap into the switches, but rather into the wires in the main bundle hidden underneath the driver side kick panel. The wiring diagram will tell you which color wires to tap into.
You do not tap into the switches, but rather into the wires in the main bundle hidden underneath the driver side kick panel. The wiring diagram will tell you which color wires to tap into.
FTE Community Team
Joined: Nov 2001
Posts: 1,856
Likes: 266
From: Oak Harbor, Washington
I installed a Crimestoppers RKE & remote starter in my '93 last summer. I do not have the data on hand here at home, but I do at work, including the wiring colors and trigger polarity. I'll try to remember to dig them out tomorrow.

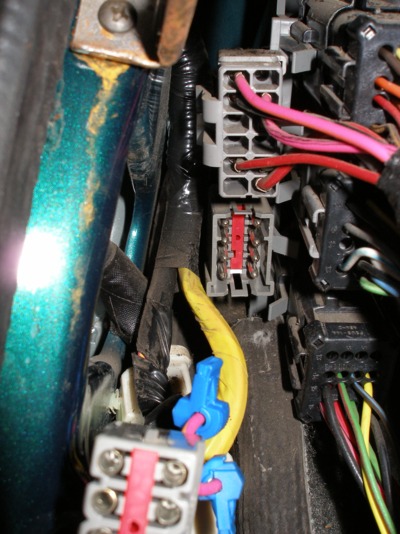

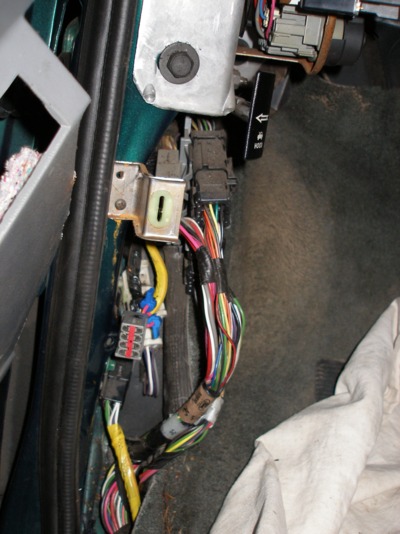

Meantime, I do have three pics of how I tapped in. Left kick panel has to be removed to access this harness. Once that's off, it's a snap. I did have to use two isolation diodes (sourced out of my junk pile) that my CS installation instructions called for for my situation.
(click on any image for larger)
Meantime, I do have three pics of how I tapped in. Left kick panel has to be removed to access this harness. Once that's off, it's a snap. I did have to use two isolation diodes (sourced out of my junk pile) that my CS installation instructions called for for my situation.
(click on any image for larger)
Thread Starter
|
Freshman User
Joined: Jan 2008
Posts: 25
Likes: 0
From: Vancouver
Originally Posted by asavage
I installed a Crimestoppers RKE & remote starter in my '93 last summer. I do not have the data on hand here at home, but I do at work, including the wiring colors and trigger polarity. I'll try to remember to dig them out tomorrow.
Meantime, I do have three pics of how I tapped in. Left kick panel has to be removed to access this harness. Once that's off, it's a snap. I did have to use two isolation diodes (sourced out of my junk pile) that my CS installation instructions called for for my situation.
Meantime, I do have three pics of how I tapped in. Left kick panel has to be removed to access this harness. Once that's off, it's a snap. I did have to use two isolation diodes (sourced out of my junk pile) that my CS installation instructions called for for my situation.
thanks for the pic it helps tremendously
the 2 wires - blue and green, do they go to relays or directly to the alarm box?
T
Last edited by tc2468; Jan 17, 2008 at 01:52 AM.
Posting Guru
Joined: Aug 2007
Posts: 1,036
Likes: 2
From: Portland, Oregon
OOOOOOOOOOOOOOOOOO!!!! GOOGLE WORKED FOR ME!!!
I found this....
http://www.bulldogsecurity.com/wireing%20diagrams2.htm
will show you the wire colors and what not for practicaly ANY car.... OH YEAH!!
I found this....
http://www.bulldogsecurity.com/wireing%20diagrams2.htm
will show you the wire colors and what not for practicaly ANY car.... OH YEAH!!
Posting Guru
Joined: Aug 2007
Posts: 1,036
Likes: 2
From: Portland, Oregon
OK last post for tonight, my alarm came with a starter relay kill thingy (basicaly you can't start the car till the alarm is disabled) but the instructions are not clear as how to hook it up other than you cut the wire and attach this relay setup (read: literaly cut the wire into two, not splice into). the relay has four wires going into it, and three coming back out. the colors are green, black, orange and yellow. the book i have says that the yellow wire is the positive switched ignition input. the orange wire is (-) 500 Ma armed output. what's this all mean? i don't wanna blow somthing up...
not sure where the green or black wires go...
here's a pic:
sorry to thread jack, i thought it might help with others who may have this problem/q though.
not sure where the green or black wires go...
here's a pic:
sorry to thread jack, i thought it might help with others who may have this problem/q though.
Trending Topics
FTE Community Team
Joined: Nov 2001
Posts: 1,856
Likes: 266
From: Oak Harbor, Washington

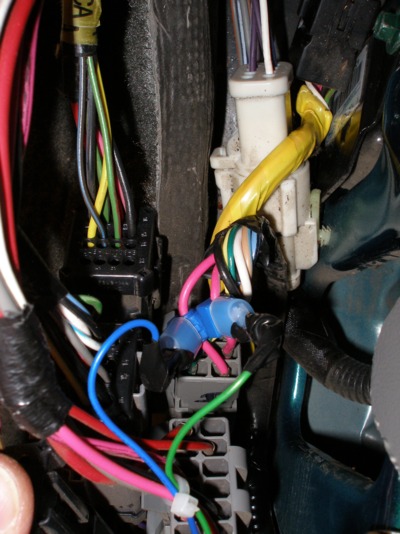

@tc2468: blue & green wires shown go to the RKE box. On the harness side, I do not recall whether the pink wires are to the actuators or the relay (probably the OEM relay).
@DCRB: Positive switched Ign. input means a wire that turns ON when the key is in the IGN position. Typically, that means NOT an Accy wire, which switches OFF while you crank the engine.
Armed output drives a relay (at no more than 0.5 amp) to drive some alarm accessory. I don't install alarms, so I can't be more specific than that.
@DCRB: Positive switched Ign. input means a wire that turns ON when the key is in the IGN position. Typically, that means NOT an Accy wire, which switches OFF while you crank the engine.
Armed output drives a relay (at no more than 0.5 amp) to drive some alarm accessory. I don't install alarms, so I can't be more specific than that.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
Posting Guru
Joined: Aug 2007
Posts: 1,036
Likes: 2
From: Portland, Oregon
ahhhhhhh. yeah i figured out the orange wire, basicaly it is what tells the starter relay not to start the car (like the remote wire on a car amp) when the alarm is armed.
I'm guessing that the green and black wires simply connect to both sides of the starter wire then?
I'm guessing that the green and black wires simply connect to both sides of the starter wire then?
FTE Community Team
Joined: Nov 2001
Posts: 1,856
Likes: 266
From: Oak Harbor, Washington
Originally Posted by DCRB
so i'm guessing that check mark means that aero's have a positive door locking mech.?

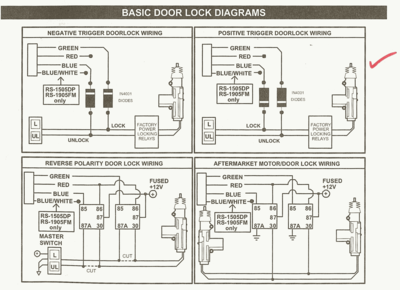

For my particular RKE unit, a pair of diodes were needed (as shown in that unit's diagram above). I used something like 1N4001 or whatever I had laying around. Anything rated for 50v or above and one amp should work.
[later]
Oh, I see that the diode spec is in the diagram. I overlooked that.
Last edited by asavage; Jan 17, 2008 at 09:18 PM.
Thread Starter
|
Freshman User
Joined: Jan 2008
Posts: 25
Likes: 0
From: Vancouver
all buttoned up
I installed the alarm and it all works pretty good.
My Van has a feature that turns on the interior lights if you slightly lift the door handle witch will set the alarm off.
My Van has a feature that turns on the interior lights if you slightly lift the door handle witch will set the alarm off.
