56 dome light wiring?
Thread Starter
|
5th Wheeling
Joined: Nov 2023
Posts: 37
Likes: 2
56 dome light wiring?
i have factory light and door jam switches and everything works...i have a GM headlight switch. Has any1 run this setup before if so how did you wire it?
if not is there a later f100 switch(with the d1 tab on it) 60s 70s that you can recommend
if not is there a later f100 switch(with the d1 tab on it) 60s 70s that you can recommend
Fleet Mechanic
Joined: Sep 2010
Posts: 1,832
Likes: 467
From: Mason City, Iowa
I am in the process of doing the same thing, adding the Dome light using the stock F-100 headlight switch. As you mentoined on the stock unit there is a tab connector that is fused for the dome light. But since I am lazy, I am just going to add an inline fuse and take it off the Batt terminal of the ignition switch. I might change that plan if I find one could turn the dome light on by twisting the stock headlight switch all the way clockwise. But I am not sure the stock units are capable of that in 56 or earlier years.
About using a GM style headlight switch. Yes you should be able to do that. We just need to know what the switch looks like
Better yet the year, and model of the car it was used with.
About using a GM style headlight switch. Yes you should be able to do that. We just need to know what the switch looks like
Better yet the year, and model of the car it was used with.
Last edited by hooler1; Feb 8, 2026 at 11:32 AM.
Thread Starter
|
5th Wheeling
Joined: Nov 2023
Posts: 37
Likes: 2
I dont have a stock switch plus i didnt want the smaLL fuse in the back
the light gets positive power on fords/GM switch grounds it out to work
ive been looking and 65-76 f100 switch will work if the screw part threads in the front
the light gets positive power on fords/GM switch grounds it out to work
ive been looking and 65-76 f100 switch will work if the screw part threads in the front
Fleet Mechanic
Joined: Sep 2010
Posts: 1,832
Likes: 467
From: Mason City, Iowa

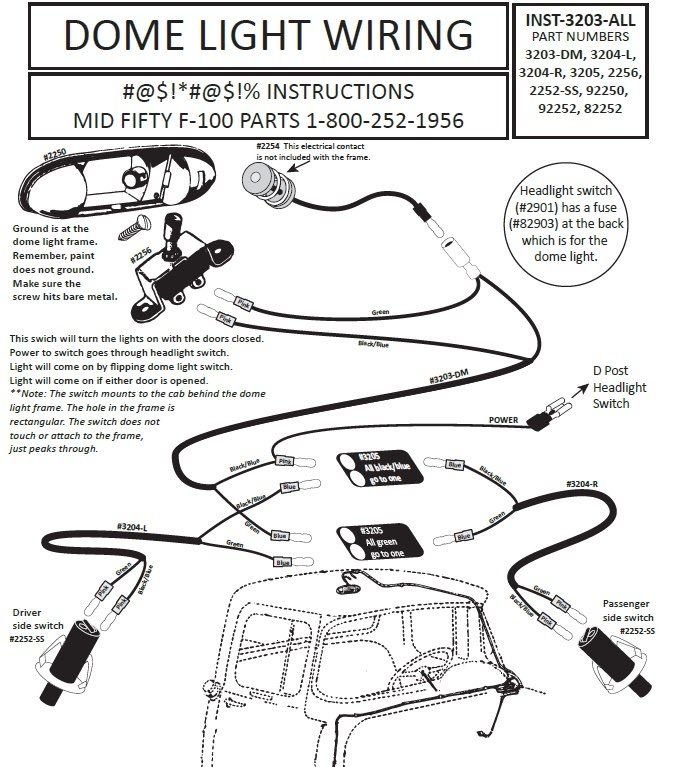

If using the GM headlight switch you could connect one leg of the dome light to a 12 volt fused source. Then run the other leg to the door switches and the dome light terminal on your GM headlight switch. The other terminal on your door switches would then be grounded. Each switch would simply ground the circuit turning on your dome light.
Hotshot
Joined: Oct 2009
Posts: 16,173
Likes: 4,780
From: Burbank, WA
It's so much simpler and safer that way. I'm pretty sure that GM light switch would be set up that way, as a ground switch and not a power supply.
Trending Topics
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,366
Likes: 1,784
From: Western NY
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Are we there yet?
Joined: Mar 2006
Posts: 1,098
Likes: 64
From: NW Valley AZ
Yes, I used a GM switch. I moved the **** from the factory switch to the GM switch handle too.
