Turbo Heat Shield Bolt Spec

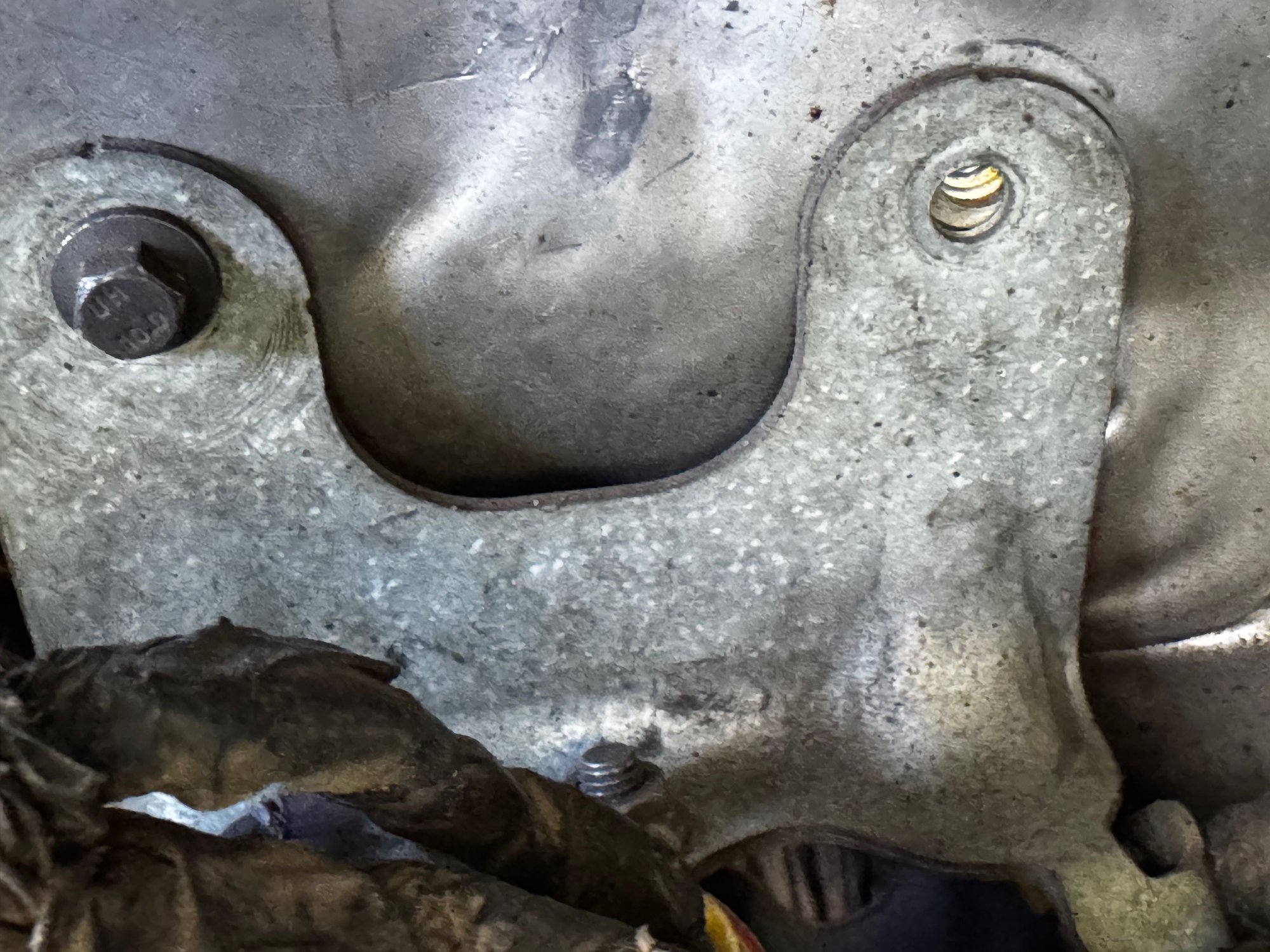

I'm missing this bolt on the heat shield facing the FICM. Can anyone provide the bolt spec?

Thanks in advance.


Reply
0
Old Sep 30, 2025 | 12:36 PM
Share
  #2
bismic's Avatar
bismic
Fleet Owner
Community Builder
Liked
Loved
Community Favorite
Joined: Nov 2003
Posts: 27,792
Likes: 3,542
Club FTE Gold Member
This I believe (edit):

#W300009, BOLT M6 X 14 X 1.6G HEX FLANGE.

Last edited by bismic; Sep 30, 2025 at 12:49 PM.
Reply
3
Old Oct 21, 2025 | 11:14 PM
Share
  #3
IHbase's Avatar
IHbase
Thread Starter
|
More Turbo
15 Year Member
Joined: Aug 2006
Posts: 548
Likes: 7
Thanks bismic.

Reply
1
