Ok, so I am trying to determine if I have any connections at the back of the truck for an additional camera that I can mount in the bed. I have a 2020 XLT and only have the reverse and CHMSL cameras from factory. I am hoping one of these connectors along with some Forscan mods will do what I need, but I don't know what the connectors are for so this is where you all come in.... Thanks.

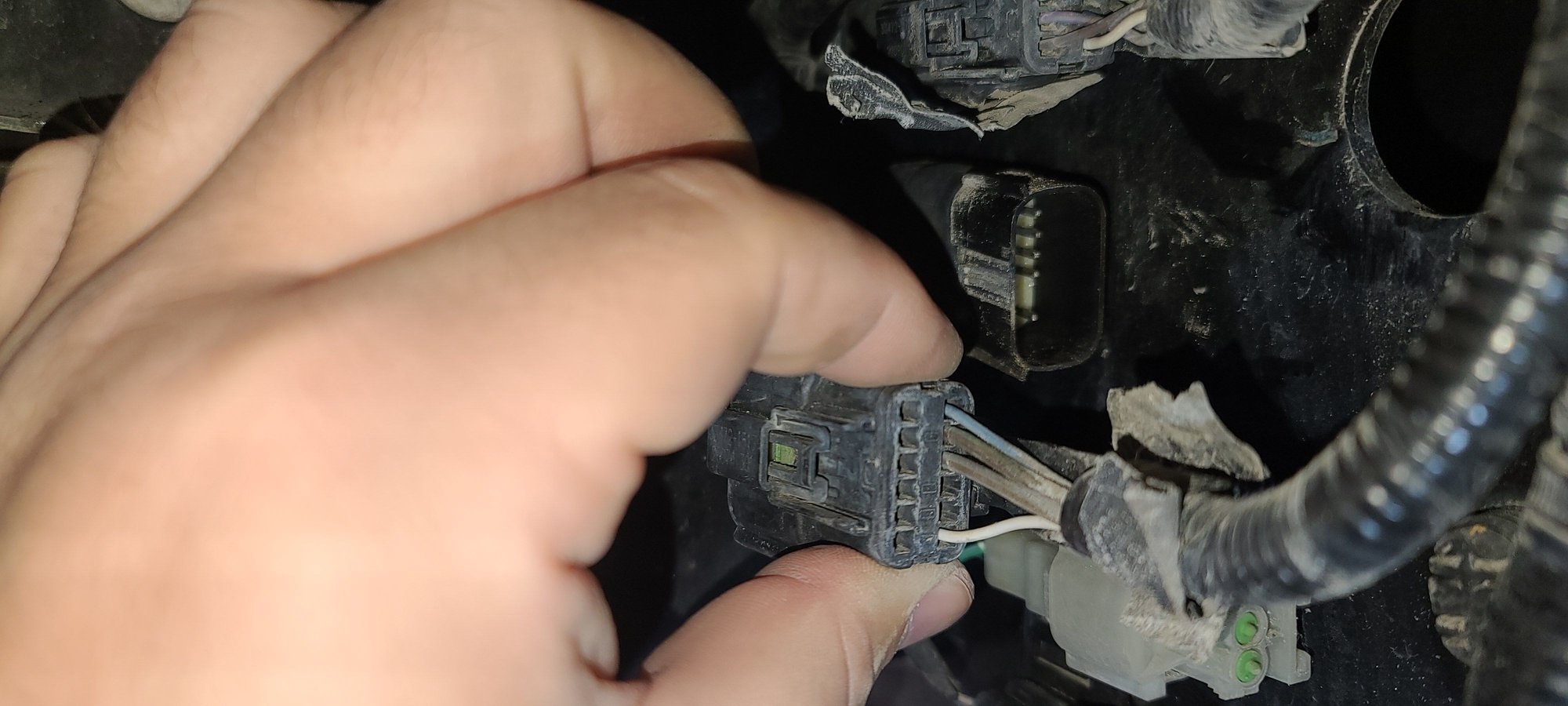

I have these 4 on the drivers side by the spare tire This is the second from the top connector Second from the top again. wondering what the unused pins are? This one is right above hitch by the trailer plug. has a capped wire labeled CHMSL This one is on Passenger side above spare tire. Not likely useful, but I am curious what it is.
Just gonna bump this up in hopes those in the know may have missed it. Any help here is greatly appreciated. At the very least, is there a resource I can refer to that may help me out?
Sorry I cannot help regarding the cameras, but the capped single wire with the "High Mount Stop" tag is for a adding a brake light, such as on a bed topper.
Thanks for this... do you happen to know if there is some way of cross referencing the location of the connectors on the truck with those in the document you posted?
Sorry I cannot help regarding the cameras, but the capped single wire with the "High Mount Stop" tag is for a adding a brake light, such as on a bed topper.
Thanks for this... do you happen to know if there is some way of cross referencing the location of the connectors on the truck with those in the document you posted?
I think one or both of those get used when you install the trailer camera/TPMS harness. Lookup the trailer camera/TPMS install instructions and if so there should be photos there.
I think one or both of those get used when you install the trailer camera/TPMS harness. Lookup the trailer camera/TPMS install instructions and if so there should be photos there.
I will search for those and see what I can figure out. Thanks.
I have 5th wheel prep & trailer TPMS with camera and both of mine are used. Not sure which they are used for but I might be able to take a closer look when I get home from work tonight.
