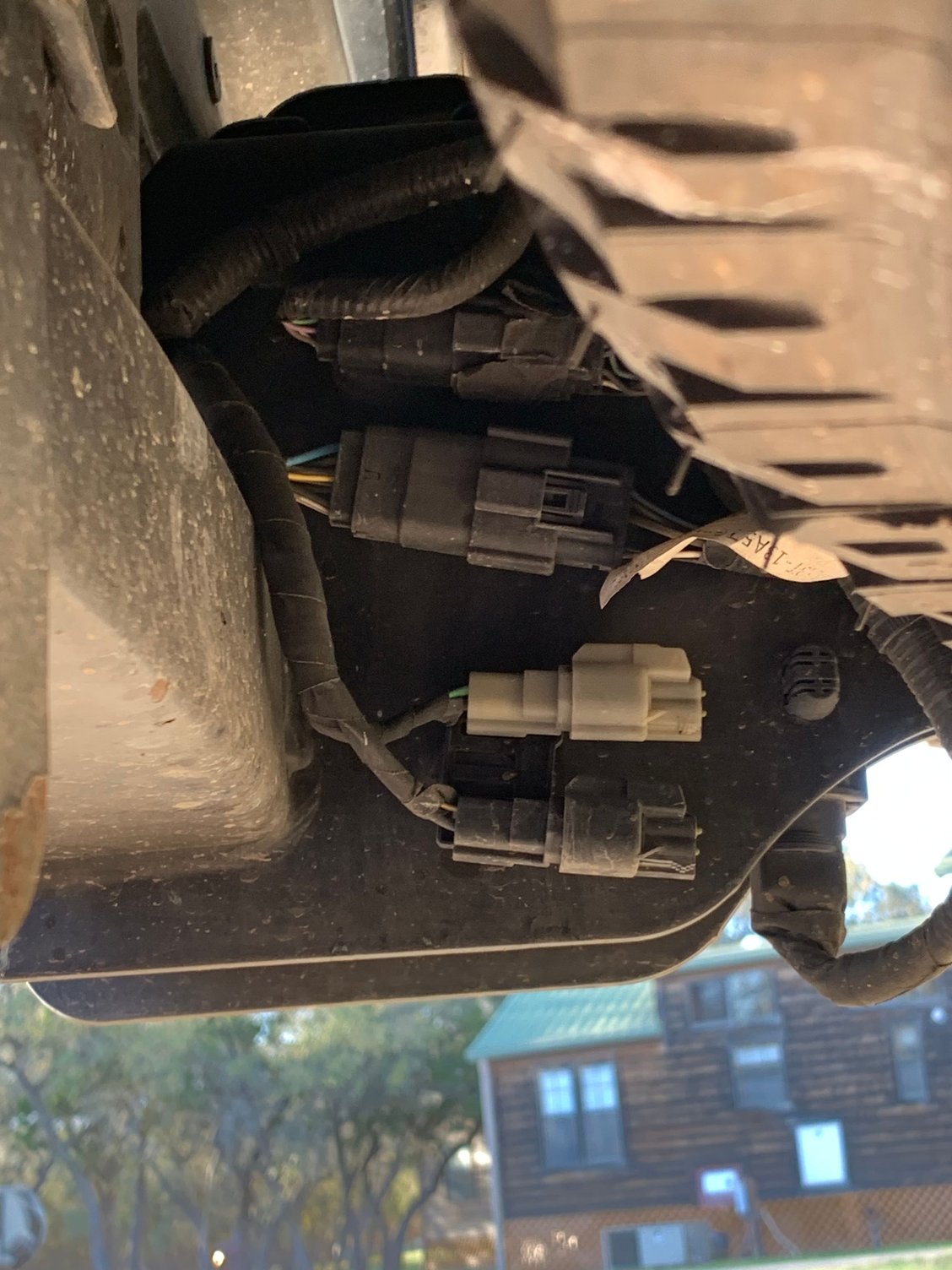

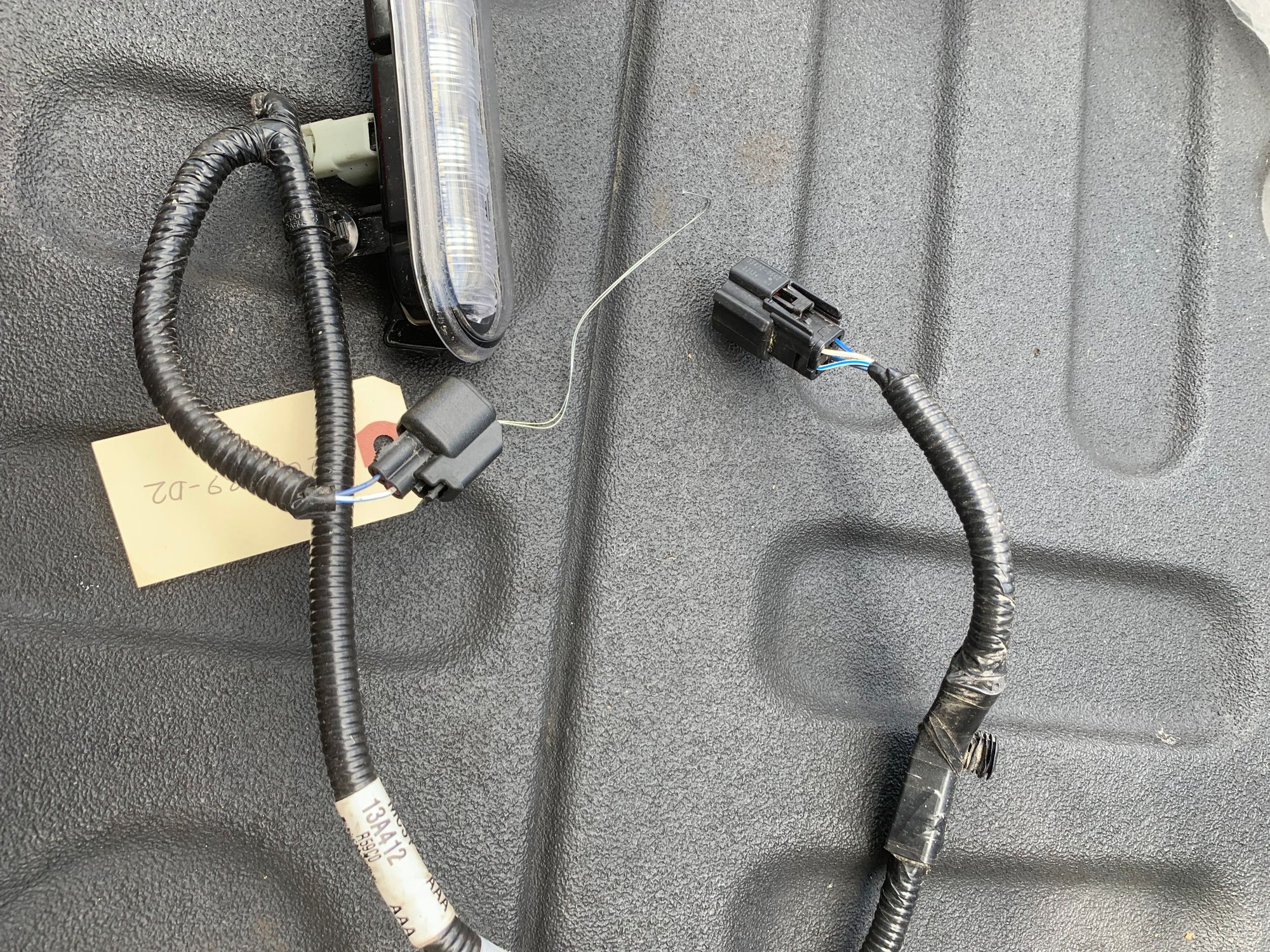

Finally got around to grabbing some bed lights oem off eBay, what am I missing to plug into my XLT and am I pre wired thanks One side light has two connectors Other side one connector Part number of one light Cable passenger side when light is in the hole in bed no visible cable to plug into

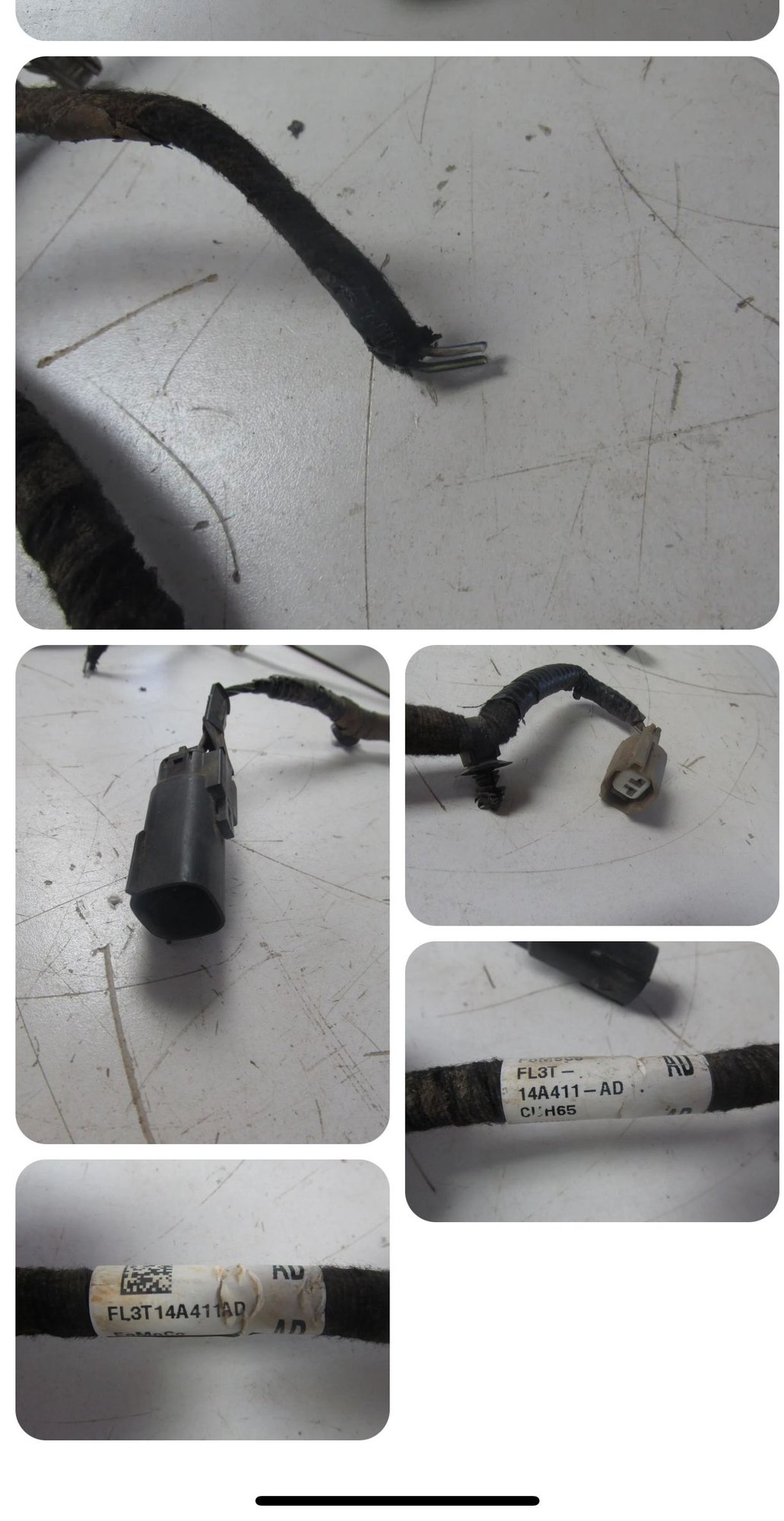

Hi I did find a harness as below from a 2015 mine being a 2020 but cannot fine the official drawings with part numbers to confirm, I did see that I would have to reterminate the Earth under the spare tire
the only issue then is if this harness works with a newer truck, I also found the switch for 9$ used also
Below are some instructions for a non oem install which I like except the splice into the harness. Will have to visit Ford to see what is in the parts diagram
Below are some instructions for a non oem install which I like except the splice into the harness. Will have to visit Ford to see what is in the parts diagram
Those instructions are for a F150 and are different than the link posted originally. There are better ways to make wiring modifications than the way they are recommending.
Thanks much for your reply I will keep researching and have a trip to Ford, looking at the two actual bed lights I purchased I think they may not be model specific but the rest I may need to do some digging this truck is a 2020 xlt I would assume it came pre wired anyhows thanks much and will post my updates
Last edited by Pkusa; May 28, 2023 at 10:33 AM.
Reason: Add F350
Hi I did find a harness as below from a 2015 mine being a 2020 but cannot fine the official drawings with part numbers to confirm, I did see that I would have to reterminate the Earth under the spare tire
the only issue then is if this harness works with a newer truck, I also found the switch for 9$ used also
2015 Super Duty's had a bed light option? I didn't think that option started until 2017 on the SD.
