Need headlight help
Need help getting my headlights to work
I believe my cab has been swapped as I have an 88f350
I have no headlights or taillights my other lights are working I’ve tried replacing the headlight switch and the wiring harness that goes into the switch with no luck. I don’t have the high low switch in the floor on my truck any help or ideas would be greatly appreciated
I believe my cab has been swapped as I have an 88f350
I have no headlights or taillights my other lights are working I’ve tried replacing the headlight switch and the wiring harness that goes into the switch with no luck. I don’t have the high low switch in the floor on my truck any help or ideas would be greatly appreciated
Logistics Pro
Joined: Nov 2013
Posts: 3,928
Likes: 1,199
From: Mojave, Ca
You'll need to go on eBay and get the EVTM (electrical and vacuum troubleshooting manual) for your gear truck and a multimeter and start wringing out wires. The manuals are a PDF or CD and they run about $40 for the EVTM plus the general repair manuals in a bundle. The multimeter should cost you about $20. With a good set of crimpers and a few butt splices, you should be able to fix it.
i ain't rite
Joined: Mar 2005
Posts: 65,561
Likes: 5,599
From: Marlboro Mental Hospital.
hopefully the warranty tag is still on the "B" pillar to figure out what year cab and electrical you have.
do you have the dimmer switch on the blinker stalk?
have you looked around the driver side floor under th eparking brake to see if maybe someone removed the dimmer switch and never returned it?
if it is a 91 and older cab there should be a 3 wire plug down there, and 2 small screw holes in the floor.
if the dimmer switch is removed, the headlights will not work.
do you have the dimmer switch on the blinker stalk?
have you looked around the driver side floor under th eparking brake to see if maybe someone removed the dimmer switch and never returned it?
if it is a 91 and older cab there should be a 3 wire plug down there, and 2 small screw holes in the floor.
if the dimmer switch is removed, the headlights will not work.
i ain't rite
Joined: Mar 2005
Posts: 65,561
Likes: 5,599
From: Marlboro Mental Hospital.

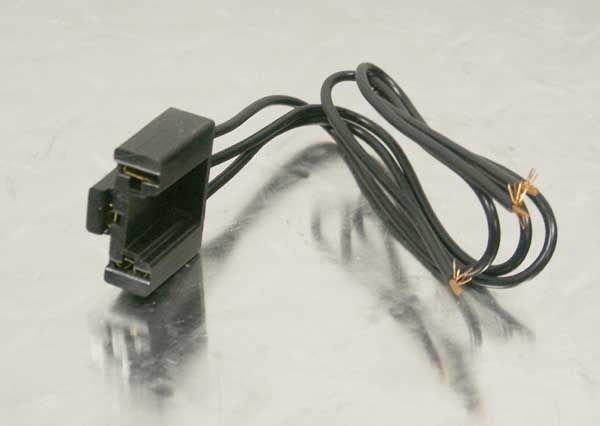

that is the plug for the dimmer switch.
with headlights on, take a test light and find the wire with power. i want to say it is the center one. than with a small jumper wire go from the hot to one of the others and you should have headlights. one is for low beams, one for high beams.
red/yellow stripe should be hot with headlight switch pulled out.
red/black stripe should be low beams.
lite green/black stripe should be high beams.
with headlights on, take a test light and find the wire with power. i want to say it is the center one. than with a small jumper wire go from the hot to one of the others and you should have headlights. one is for low beams, one for high beams.
red/yellow stripe should be hot with headlight switch pulled out.
red/black stripe should be low beams.
lite green/black stripe should be high beams.
Thread Starter
|
6th Gear
Joined: Jan 2023
Posts: 6
Likes: 0
Very new to anything mechanical so I don’t know how to make a jumper wire, if I just buy the switch and hook it up should that fix my issue?
Trending Topics
i ain't rite
Joined: Mar 2005
Posts: 65,561
Likes: 5,599
From: Marlboro Mental Hospital.
yea, that will work to. a jumper wire is simply a small piece of wire with the ends stripped a little bit.
you can just as easily do it with two small screwdrivers. turn on headlights, stick the screwdriver ends in the plug so they make contact with the metal tab in the plug, than touch the two screwdriver metal shafts together. your helper will then tell you the headlights came on. if doing it this way though, make sure the metal parts do not touch anything on the truck.
you can just as easily do it with two small screwdrivers. turn on headlights, stick the screwdriver ends in the plug so they make contact with the metal tab in the plug, than touch the two screwdriver metal shafts together. your helper will then tell you the headlights came on. if doing it this way though, make sure the metal parts do not touch anything on the truck.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
Thread Starter
|
6th Gear
Joined: Jan 2023
Posts: 6
Likes: 0
yea, that will work to. a jumper wire is simply a small piece of wire with the ends stripped a little bit.
you can just as easily do it with two small screwdrivers. turn on headlights, stick the screwdriver ends in the plug so they make contact with the metal tab in the plug, than touch the two screwdriver metal shafts together. your helper will then tell you the headlights came on. if doing it this way though, make sure the metal parts do not touch anything on the truck.
you can just as easily do it with two small screwdrivers. turn on headlights, stick the screwdriver ends in the plug so they make contact with the metal tab in the plug, than touch the two screwdriver metal shafts together. your helper will then tell you the headlights came on. if doing it this way though, make sure the metal parts do not touch anything on the truck.

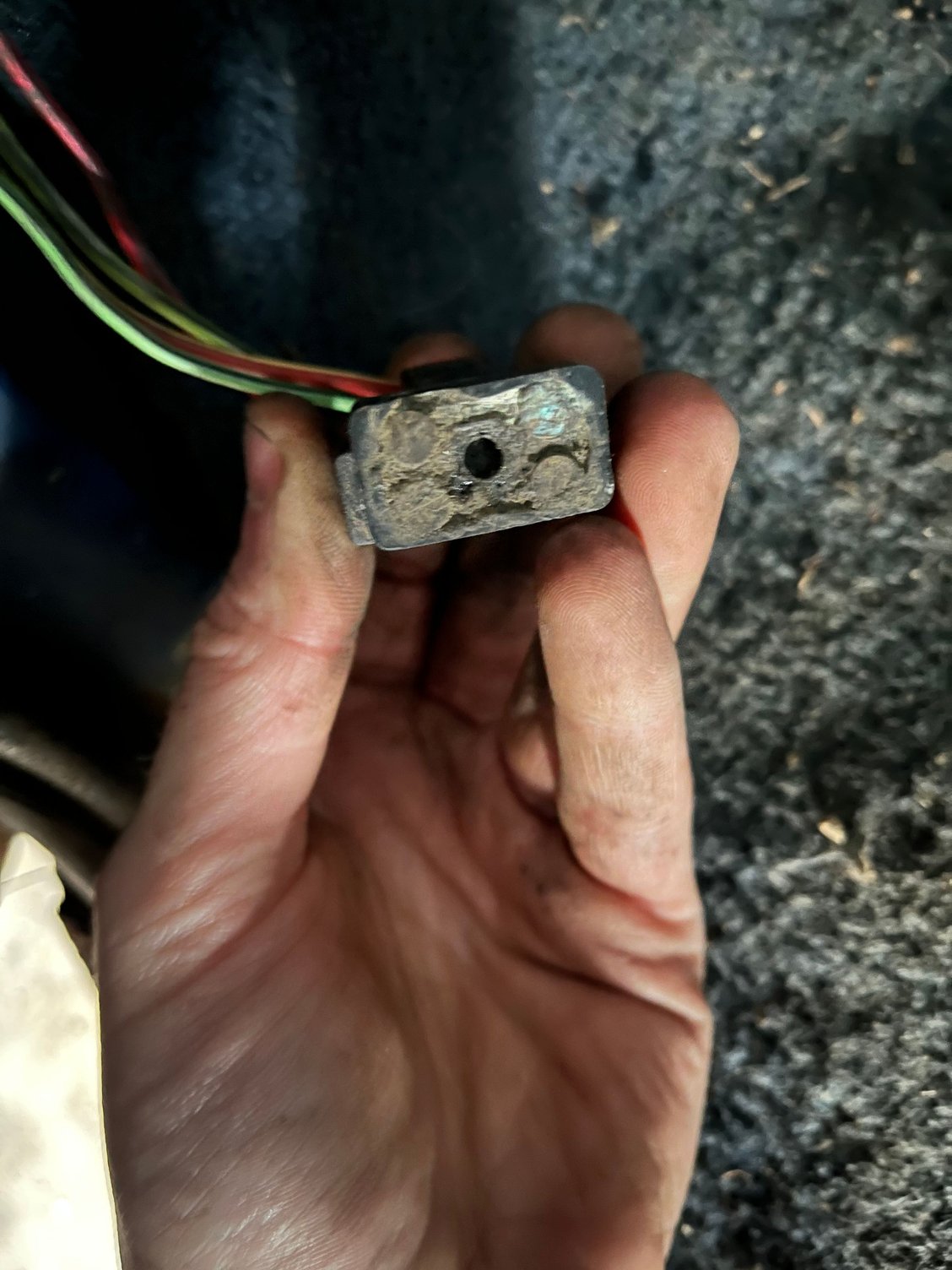

so I jumped the wire and got the lights to work so I’m going to go by the switch but I don’t see the plug like connectors that will go into it to make it work I’ll attach a picture of what I’m talking about also I cleaned the connections that are dirty in the picture
