Turn Signal Issues – 12 volt conversion
I converted my 1953 F100 from 6 volt to 12 volt. Everything works fine except for the front parking lights, turn signals, and the dash turn signal indicators. The front parking lights do not light up. When I select left or right turn with the lever on the switch the corresponding front turn light and the dash indicator flash. The rear parking and turn lights all function properly.
I used the American Autowire Classic Update Series 1953-56 Ford Truck #510303 from Carpenters Ford Restoration. The truck already had an aftermarket clamp-on Grote #48272 turn signal switch.
Here is my original wiring matching the American Autowire colors with the Grote colors.
American Autowire / Grote
Horn Relay Ground – Black – G / Not Applicable
Left Front Turn - Light Blue – H / Left Front Turn – Green
Right Front Turn – Dark Blue – J / Right Front Turn – Red
Turn Sw – Hazard – Brown – K / Not Applicable
Turn Switch Feed – Purple – L / Hot Turn – Yellow
Left Rear Turn – Yellow – M / Left Rear Turn – Gray
Right Rear Turn – Dark Green – N / Right Rear Turn – Black
Brake Switch – White & Blue – P (white wire – brake switch, blue wire – 3rd brake light) / Hot Brake – Gray/black stripe
Grote Not Used
Ground – White
Pilot – Blue
I’ve attached the original American Autowire instructions AAW_Instructions.pdf
The Grote wiring instructions are Grote_Wiring.pdf
When that did not work, I contacted American Autowire and their advice is on AAW_Wiring_2022-11-17a.pdf.
That did not work either.
Any advice would be deeply appreciated.
Thank you in advance.
I used the American Autowire Classic Update Series 1953-56 Ford Truck #510303 from Carpenters Ford Restoration. The truck already had an aftermarket clamp-on Grote #48272 turn signal switch.
Here is my original wiring matching the American Autowire colors with the Grote colors.
American Autowire / Grote
Horn Relay Ground – Black – G / Not Applicable
Left Front Turn - Light Blue – H / Left Front Turn – Green
Right Front Turn – Dark Blue – J / Right Front Turn – Red
Turn Sw – Hazard – Brown – K / Not Applicable
Turn Switch Feed – Purple – L / Hot Turn – Yellow
Left Rear Turn – Yellow – M / Left Rear Turn – Gray
Right Rear Turn – Dark Green – N / Right Rear Turn – Black
Brake Switch – White & Blue – P (white wire – brake switch, blue wire – 3rd brake light) / Hot Brake – Gray/black stripe
Grote Not Used
Ground – White
Pilot – Blue
I’ve attached the original American Autowire instructions AAW_Instructions.pdf
The Grote wiring instructions are Grote_Wiring.pdf
When that did not work, I contacted American Autowire and their advice is on AAW_Wiring_2022-11-17a.pdf.
That did not work either.
Any advice would be deeply appreciated.
Thank you in advance.
FTE Legend
Joined: Nov 2015
Posts: 30,912
Likes: 4,123
From: Angier, NC
I converted my 1953 F100 from 6 volt to 12 volt. Everything works fine except for the front parking lights, turn signals, and the dash turn signal indicators. The front parking lights do not light up. When I select left or right turn with the lever on the switch the corresponding front turn light and the dash indicator flash. The rear parking and turn lights all function properly.
I used the American Autowire Classic Update Series 1953-56 Ford Truck #510303 from Carpenters Ford Restoration. The truck already had an aftermarket clamp-on Grote #48272 turn signal switch.
Here is my original wiring matching the American Autowire colors with the Grote colors.
American Autowire / Grote
Horn Relay Ground – Black – G / Not Applicable
Left Front Turn - Light Blue – H / Left Front Turn – Green
Right Front Turn – Dark Blue – J / Right Front Turn – Red
Turn Sw – Hazard – Brown – K / Not Applicable
Turn Switch Feed – Purple – L / Hot Turn – Yellow
Left Rear Turn – Yellow – M / Left Rear Turn – Gray
Right Rear Turn – Dark Green – N / Right Rear Turn – Black
Brake Switch – White & Blue – P (white wire – brake switch, blue wire – 3rd brake light) / Hot Brake – Gray/black stripe
Grote Not Used
Ground – White
Pilot – Blue
I’ve attached the original American Autowire instructions AAW_Instructions.pdf
The Grote wiring instructions are Grote_Wiring.pdf
When that did not work, I contacted American Autowire and their advice is on AAW_Wiring_2022-11-17a.pdf.
That did not work either.
Any advice would be deeply appreciated.
Thank you in advance.
I used the American Autowire Classic Update Series 1953-56 Ford Truck #510303 from Carpenters Ford Restoration. The truck already had an aftermarket clamp-on Grote #48272 turn signal switch.
Here is my original wiring matching the American Autowire colors with the Grote colors.
American Autowire / Grote
Horn Relay Ground – Black – G / Not Applicable
Left Front Turn - Light Blue – H / Left Front Turn – Green
Right Front Turn – Dark Blue – J / Right Front Turn – Red
Turn Sw – Hazard – Brown – K / Not Applicable
Turn Switch Feed – Purple – L / Hot Turn – Yellow
Left Rear Turn – Yellow – M / Left Rear Turn – Gray
Right Rear Turn – Dark Green – N / Right Rear Turn – Black
Brake Switch – White & Blue – P (white wire – brake switch, blue wire – 3rd brake light) / Hot Brake – Gray/black stripe
Grote Not Used
Ground – White
Pilot – Blue
I’ve attached the original American Autowire instructions AAW_Instructions.pdf
The Grote wiring instructions are Grote_Wiring.pdf
When that did not work, I contacted American Autowire and their advice is on AAW_Wiring_2022-11-17a.pdf.
That did not work either.
Any advice would be deeply appreciated.
Thank you in advance.
So with the lever to the left what works front and what works at the rear? ie: left front & dash light flash - left rear dose not flash.
Again with the lever to the right what works front and what works at the rear? ie: right front dose not flash but dash dose - right rear dose not flash.
Also do this with park / head lights off and then turned on.
If I under stand right your front parking lights go out when the head lights come on and the rear running lights stay on right?
I think once we know what works and when someone can help.
Now if I did read this wrong never mind
Dave ----
FTE Legend
Joined: Nov 2015
Posts: 30,912
Likes: 4,123
From: Angier, NC
I just went back over your post are you saying when the head lights are on the front park lights dont work but the turn signal lights work front, rear and inside?
See the above post as I dont think the front park light work when the head lights are turned on.
They should work if you pull the switch out 1 click to the park light setting.
If not then there may be an issue.
Dave ----
See the above post as I dont think the front park light work when the head lights are turned on.
They should work if you pull the switch out 1 click to the park light setting.
If not then there may be an issue.
Dave ----
Thread Starter
|
Cross-Country
Joined: Nov 2020
Posts: 89
Likes: 16
Yes. Everything works except the front parking lights. Only, I expected the dash turn signals to be off except when flashing. (I believe that is how they were under the 6 volt system). But I'll take that if I can get the front parking lights working.
Thread Starter
|
Cross-Country
Joined: Nov 2020
Posts: 89
Likes: 16

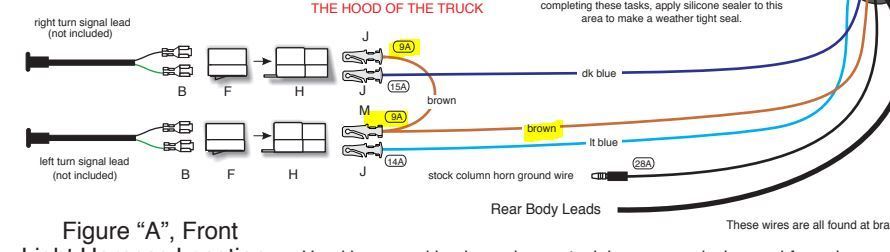

Yes - dual filament 2357LL front and rear. The brown wire is doubled on the left side to extend to the right side. I'm not sure which is the 'high intensity filament' but I swapped the connectors on the front right & left with no change. Still no parking lights on the front. Parking lights work on the rear and flashers front and rear.
Don't know if my wife finds me handy
.
Don't know if my wife finds me handy
.
Trailering
Joined: Dec 2022
Posts: 18
Likes: 7
From: Somis, CA
Trending Topics
Thread Starter
|
Cross-Country
Joined: Nov 2020
Posts: 89
Likes: 16
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Trailering
Joined: Dec 2022
Posts: 18
Likes: 7
From: Somis, CA

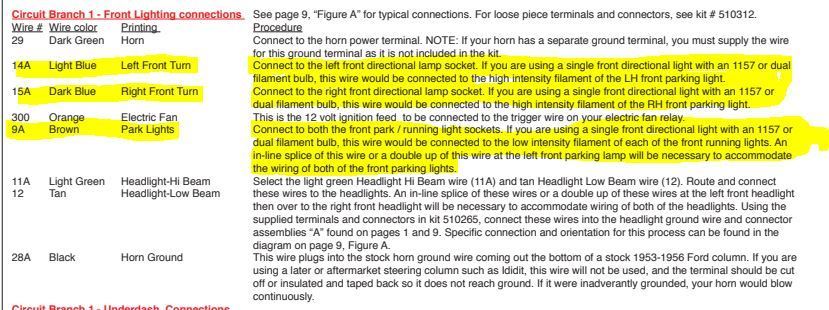

Ok on your specific American Autowire kit the tail light circuit that comes out of the headlight switch marked R is shared with your parking lights. The Brown wire that feeds your tail lights branches off at some point after the switch and feeds the front parking light circuit. Check power at the brown wire at your front parking light with a test light and see if you have power there.
Laughing Gas
Joined: Jan 2020
Posts: 984
Likes: 437
From: South Dakota
How is you're grounding? I have the same kit with no issues, everything works fine as expected. I purposely grounded the parking light housing though. I'm overly **** when it comes to grounding.
What type of steering column do you have (stock or aftermarket)? Aftermarket should pick up all the correct wiring, stock may need to be modified.
Jim
What type of steering column do you have (stock or aftermarket)? Aftermarket should pick up all the correct wiring, stock may need to be modified.
Jim
Trailering
Joined: Dec 2022
Posts: 18
Likes: 7
From: Somis, CA
That was going to be my next suggestion if he had power at the pigtail. i also grounded the buckets on my 53 and 55. Nothing like turning on your headlights and having one or both of your blinker indicators stay on.
