Ford backup camera recall
"Thank you for shopping with us! One or more items from your recent order XXXXXXX have required special ordering but should be ready to ship to you soon.
Your complete order will be shipped as soon as the specially ordered items arrive at our warehouse. We are experiencing unprecedented delays from manufacturers, which may result in delays in receiving your order. The next email will include your tracking number once it is available.
When you get your order depends on where you are located in relation to us (we’re on the east coast of the United States, in Rhode Island) and the shipping method selected. If you still have questions about shipping and delivery, please visit our website: https://www.tascaparts.com/policies/shipping.
Thank you for your business!"
Not sure how this is going to affect when I will get the camera, but we'll see. I suspect I won't see it for a while.
"Thank you for shopping with us! One or more items from your recent order XXXXXXX have required special ordering but should be ready to ship to you soon.
Your complete order will be shipped as soon as the specially ordered items arrive at our warehouse. We are experiencing unprecedented delays from manufacturers, which may result in delays in receiving your order. The next email will include your tracking number once it is available.
When you get your order depends on where you are located in relation to us (we’re on the east coast of the United States, in Rhode Island) and the shipping method selected. If you still have questions about shipping and delivery, please visit our website: https://www.tascaparts.com/policies/shipping.
Thank you for your business!"
Not sure how this is going to affect when I will get the camera, but we'll see. I suspect I won't see it for a while.
I accidentally broke the lock **** on my rear passenger door. It's less than $5 at full MSRP so I ordered through Fordparts.com. Not only was it free shipping but they overnighted it even though I selected standard free shipping. So I recieved it in 1 day.
Ford Trucks for Ford Truck Enthusiasts
Tool to remove the plastic pop-buttons (whatever they're called). I used a trim tool to pop them out.
Long screwdriver - I happen to have a 36" (or so) flat screwdriver. Or something else to pop the trim clips loose at the bottom of the grill. (reference the video I referenced in post #42 above. It will show you where you need this).
Hex socket or driver - to remove two screws for the camera cover.
Some kind of tool (I used a flathead screwdriver) to pop the connector off of the camera.
10mm socket/driver/wrench.
First thing to do is clean the black cover (if you don't keep it clean). I just shot it with a little Purple cleaner. This just keeps your hands a little cleaner. Next, pop up and remove all the buttons for the grill cover: This shows them all removed. Now you can remove that top cover to show the one beneath.
Next, remove the 10mm bolts. There's like 6 or 7...the ones along the front of the underneath cover.
Now the grill is ready to remove. (NOTE: please forgive me for not including pictures here...I'm a horrible documenter!) This is where you have to be careful. It pulls straight out. There are several plastic tabs. Be careful doing this. I broke two of the tabs. Not vital I don't think, but yeah...be careful. Once you pull it straight out, there are 4 or 5 metal clips at the bottom inside of the grill. This is where the long screwdriver (or other tool) comes in. Again, reference the video from post #42 above to see these clips. Just push down on the clip as shown in that video, and they will pop right out. Now the grill should be free. The wire to the camera and the hose for the washer (I don't have the washer, but do have the connection and the hose) will need to be removed. The hose just popped off the washer. The wire to the camera has a push clip to pop it right off. Now you can take the grill to a place to work on the camera.

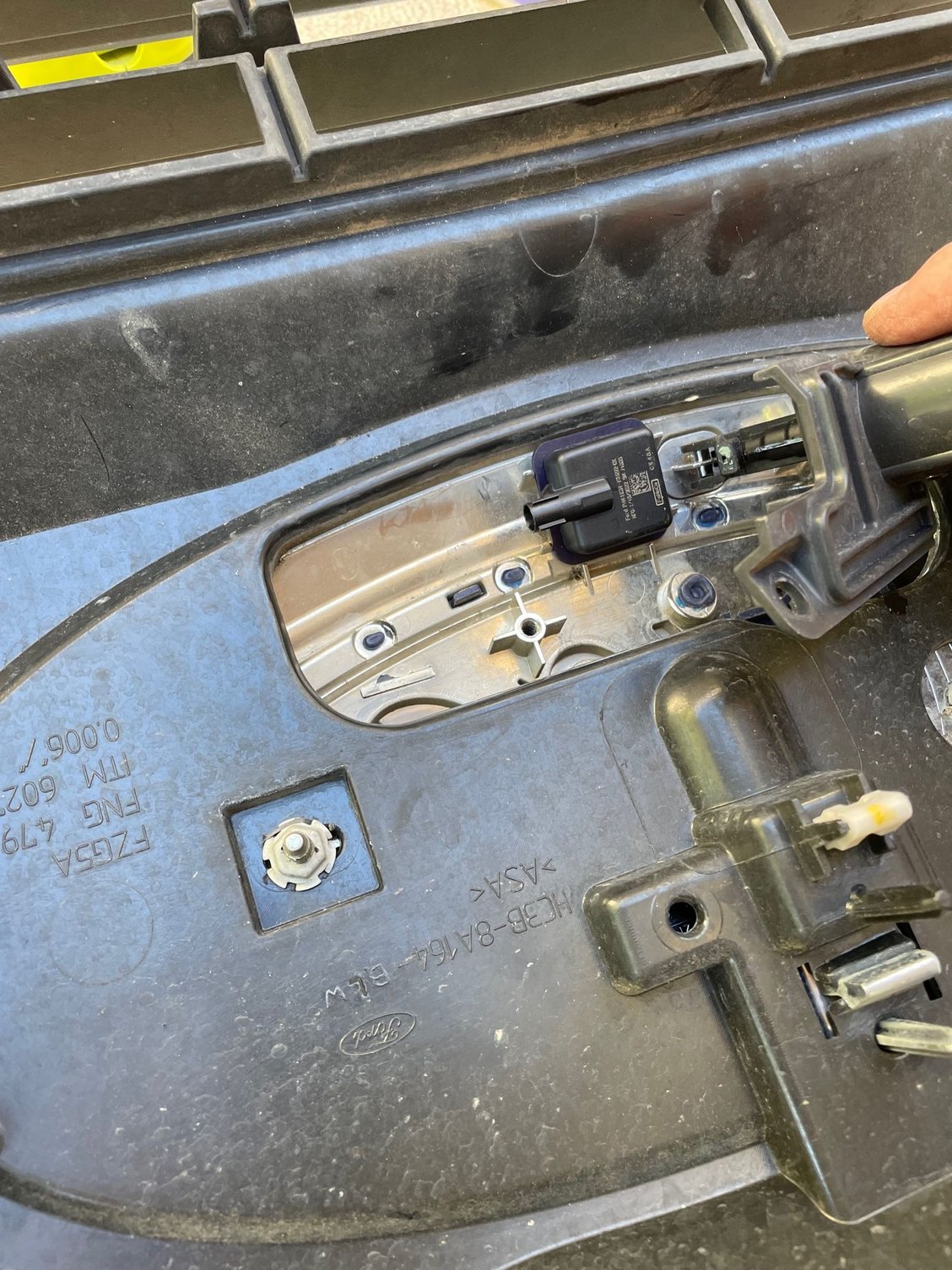

First remove the cover to the camera. This is where the hex piece comes in. Sorry I didn't get the size for it, but if you have a set, it's easy to find the right one. Here is a picture:

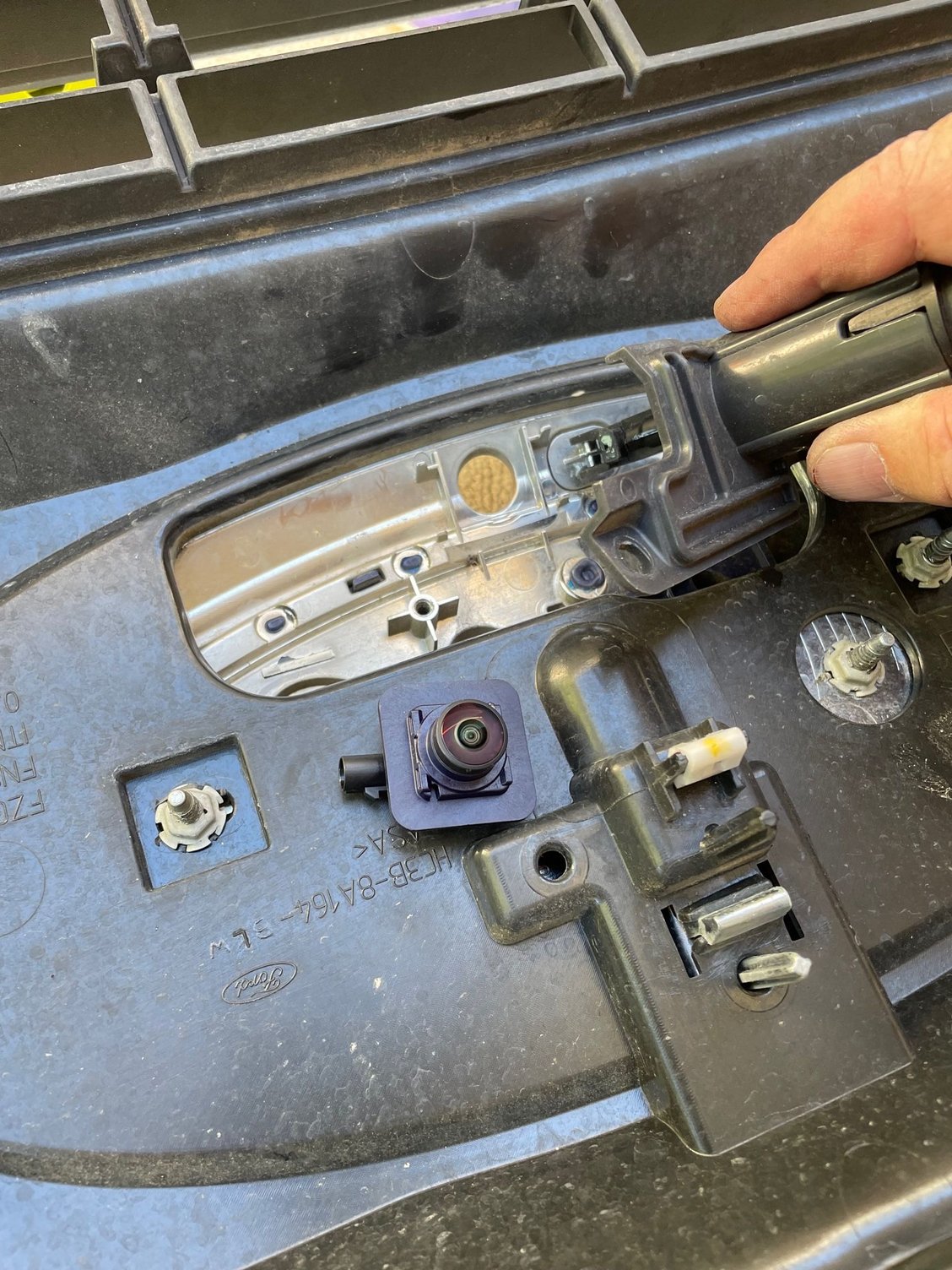

As a quick reference, the "tube" on the top is the washer unit. This had the washer hose connected to it. The "tube" at the bottom is actually the wire connector for the camera. Once you remove the camera cover, the camera is beneath it. It just sets right in it's little spot. Lift the old camera out, and set the new one in.
Go in reverse to put everything back together. Easy peasy. I will throw the caution out again about being careful when pulling the grill out. There are a lot of plastic tabs, and well, just be careful. Other than that, there is really nothing to it. Below is a side by side picture of the old and new camera. You can see the old one is all washed out and white around the lens. The new one is perfect. The picture is crystal clear, just like it was new...which uh...it is. Anyway, hope this helps anyone wanting to do this. $53 for the camera, and an hour labor...if you want to call it labor. This was really one of the easiest things I've done to my truck.
Oh yeah...the old and new camera. Sorry I didn't get a before and after of the screen shot...like I said, I'm a horrible documenter. Anyway, any questions, lemme know.
