Master Switch Wiring

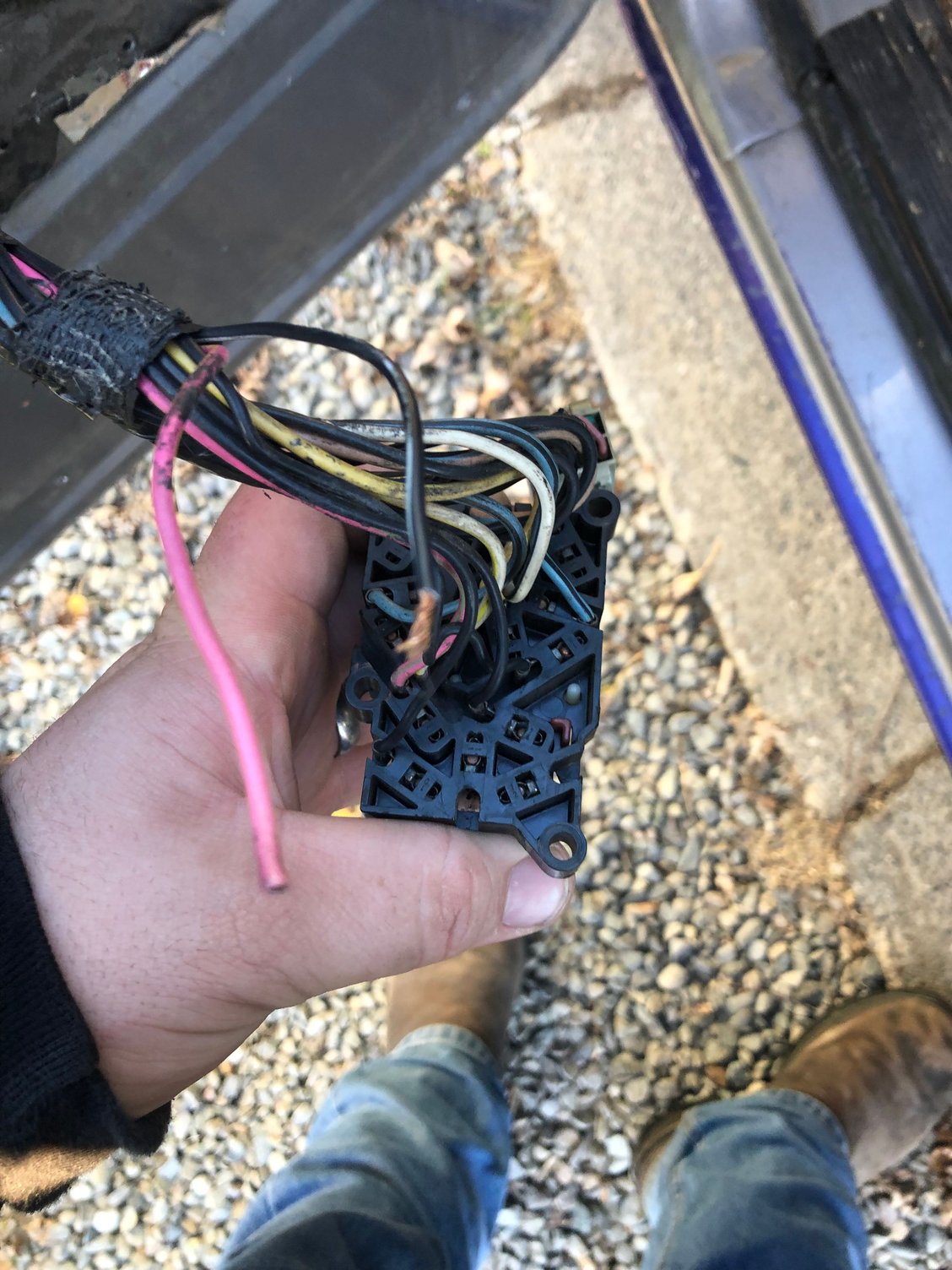

My drivers side window and lock switch has some loose wires and I was wondering if anyone knew what port they should go in on the switch. The first wire is pink and orange, the second is black and white. I have a 95 F150 btw.


Last edited by Forddtcm; Nov 7, 2021 at 05:29 PM.
Reply
0
Old Nov 8, 2021 | 08:52 AM
Share
  #2
subford's Avatar
subford
Fleet Owner
20 Year Member
Photogenic
Photoriffic
Top Answer: 1
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
Black with white is Power to the switch.
Pink with orange is used on the passenger side switch, C603 and the door lock motors Feed/Return.

C503 Master Window Control Switch, Regular & Super Cab Without Keyless Entry.
Name: 5hhoWyh.png Views: 35 Size: 17.5 KB

Name: TDEYUUR.png Views: 35 Size: 23.5 KB
/

Reply
1
Old Nov 9, 2021 | 08:39 AM
Share
  #3
Forddtcm's Avatar
Forddtcm
Thread Starter
|
New User
Joined: Sep 2021
Posts: 7
Likes: 0
Thanks. Any idea on how to reattach the loose wires?
