No instruments, won't shut off

Reply Subscribe

Thread Tools

Search this Thread

Mar 20, 2021 | 03:50 PM

Chad LaChapelle

Thread Starter

New User

Joined: Jun 2020

Posts: 8

Likes: 0

No instruments, won't shut off

99 f350... no instruments and will not turn off by key... have to pull fuse to stop..

Have swapped out GEM and ignition and no change. Any ideas?

Mar 20, 2021 | 06:15 PM

dn29626

Cargo Master

Joined: Oct 2009

Posts: 2,500

Likes: 14

From: South Carolina

Pulling that fuse is the kill.

Mar 21, 2021 | 04:36 AM

aawlberninf350

It's a Van Gogh

Joined: Feb 2010

Posts: 7,812

Likes: 1,335

From: Elk Grove, CA

Fuse 16 should be Trailer battery charge on your model year, not related to your issue.

Which fuse did you pull to kill the engine?

Mar 21, 2021 | 06:04 AM

Chad LaChapelle

Thread Starter

New User

Joined: Jun 2020

Posts: 8

Likes: 0

Quote:

Originally Posted by aawlberninf350

Fuse 16 should be Trailer battery charge on your model year, not related to your issue.

Which fuse did you pull to kill the engine?

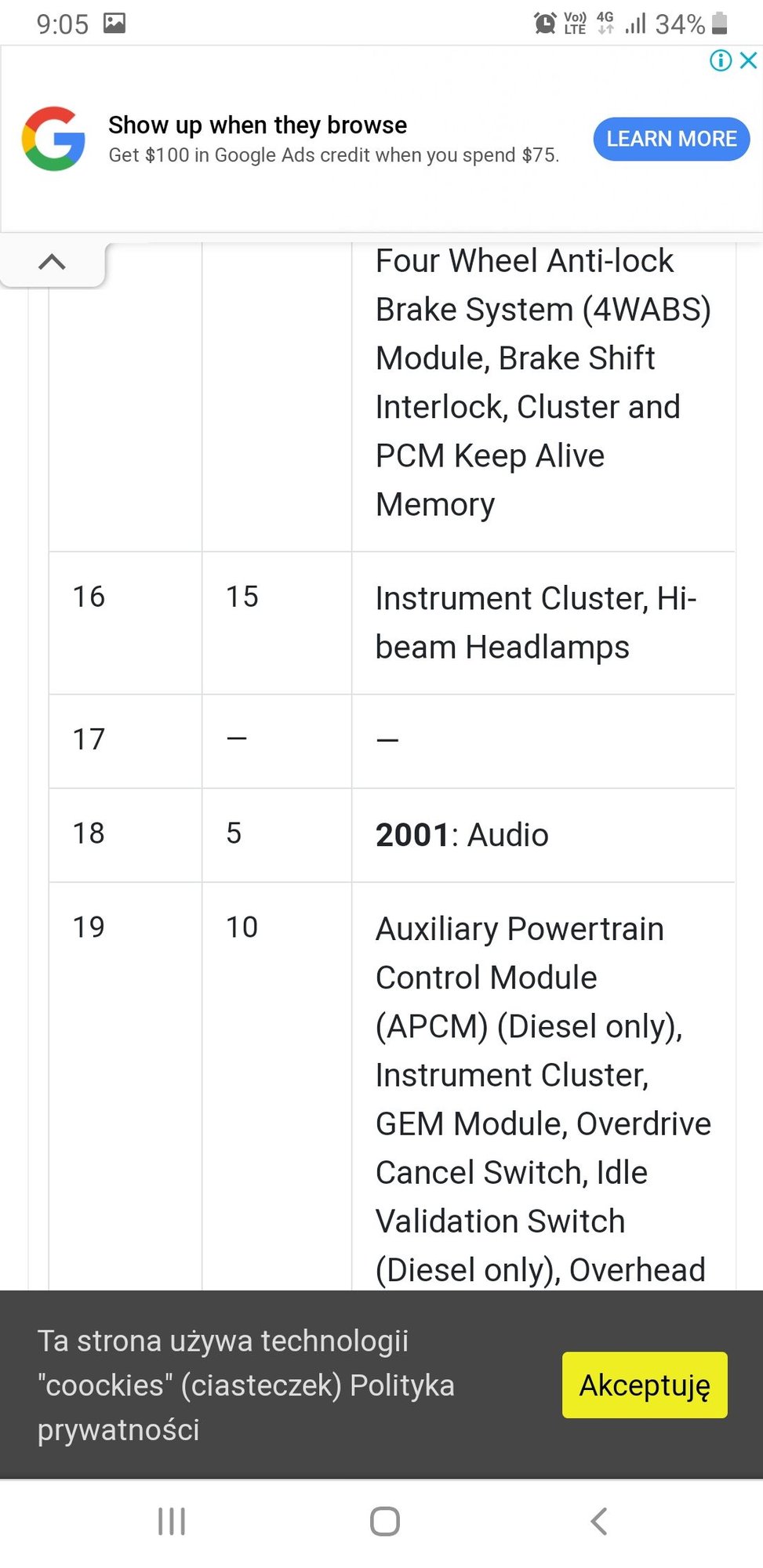

My mistake, fuse 16 in cabin says instruments but apparently only gets power when high beam on.. i pulled a large fuse in engine bay for the idm to kill engine. Cannot remember the number (26 or 27 ) as have done it so many times now.. have been chasing this issue for a long time... simply hoping for new ideas

Mar 24, 2021 | 03:45 PM

Chad LaChapelle

Thread Starter

New User

Joined: Jun 2020

Posts: 8

Likes: 0

Anyone have any ideas ?

Mar 25, 2021 | 12:23 AM

aawlberninf350

It's a Van Gogh

Joined: Feb 2010

Posts: 7,812

Likes: 1,335

From: Elk Grove, CA

Fuse 29 (5A) is also instrument cluster, replace that and see if it helps.

Diagrams below.

Still stumped on the not turning off issue.

Attached Images

7.3 Power distribution 1.pdf (1.14 MB, 16 views)

7.3 Power distribution 2.pdf (1.12 MB, 28 views)

7.3 Power distribution 3.pdf (869.1 KB, 13 views)

7.3 Power distribution 4.pdf (925.9 KB, 19 views)

1999 7.3 diesel owner's manual.pdf (1.53 MB, 17 views)

Mar 25, 2021 | 08:00 AM

SkySkiJason

Hotshot

Joined: Jul 2008

Posts: 12,782

Likes: 2,142

From: N.GA Mountains

Check ignition switch on steering column.

Not turning off means something is staying hot/12v that should not be. In the pin outs for switch, you’ll find wires that are only supposed to be hot with ignition switch turned to ON/RUN. We use one of these for ‘after run’ for turbo timer and ‘purge cycle’ for vegetable oil conversions.

Have you removed cluster to see if it’s plugged in good?

10 Ugly Ford Trucks That We Still Kinda Love

Joe Kucinski

10 Things Every Truck Owner NEEDS (2026 Edition)

Michael S. Palmer

Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath

Verdad Gallardo

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

Joe Kucinski

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

Brett Foote

Top 10 Ford Truck Tragedies

Joe Kucinski

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

Brett Foote

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Michael S. Palmer

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Verdad Gallardo

10 Best Ford Truck Engines We Miss the Most!

Joe Kucinski

Mar 26, 2021 | 02:09 AM

Chad LaChapelle

Thread Starter

New User

Joined: Jun 2020

Posts: 8

Likes: 0

Quote:

Originally Posted by FordTruckNoob

Check your grounds. Weird fuses getting pulled to stop an engine sounds like power is getting backfed through circuits.

am pulling big fuse 27 for.idm in engine bay to kill engine. Otherwise 30 in cabin kills it too. all fuses are good and never blowm ever. This.all.just started happening all of a sudden...
...
