I'm not going to say it's impossible, but it would be very difficult.
The '91 has 4 plugs to connect the engine wiring to the chassis wiring... The '92-'96 has 1 big plug to connect the engine wiring to the chassis wiring.
I suppose if you're really good with wiring diagrams and un-pinning/re-pinning wire connectors it might be possible, but it's certainly not something I'd want to do.
It would be MUCH easier to buy the repair pigtails for the injectors and repair the pigtails on your existing harness.
I recently faced the exact same delima. I'm putting a '95 5.8L in my '91. Rather than trying to repin the '95 wiring harness to connect to my '91 wiring I ended up scavenging a '91 wiring harness from a junkyard. When you take a look at the connectors you'll see why... they're WAY different.
In summary... It may be do-able, but it ain't gonna be easy.
The '91 has 4 plugs to connect the engine wiring to the chassis wiring... The '92-'96 has 1 big plug to connect the engine wiring to the chassis wiring.
I suppose if you're really good with wiring diagrams and un-pinning/re-pinning wire connectors it might be possible, but it's certainly not something I'd want to do.
It would be MUCH easier to buy the repair pigtails for the injectors and repair the pigtails on your existing harness.
I recently faced the exact same delima. I'm putting a '95 5.8L in my '91. Rather than trying to repin the '95 wiring harness to connect to my '91 wiring I ended up scavenging a '91 wiring harness from a junkyard. When you take a look at the connectors you'll see why... they're WAY different.
In summary... It may be do-able, but it ain't gonna be easy.
FTE Legend
Joined: Jun 2006
Posts: 31,930
Likes: 1,499
From: Ottawa, Ontario
There are only 3 wires feeding the injectors on that truck, a common power lead linked to all of them and 2 separate grounds linked to batches of 3. A donor harness would be a good way to get the necessary parts but you don't need the whole engine harness just these wires. With this small section removed from the donor harness you could just add it on top of what is already there in your truck and insert the pins in the existing bulkhead connectors or splice them in if the connector pins are different. I'd suggest cutting off the old injector connectors just to minimize confusion but no need to remove the old wiring once it is disconnected.
Thread Starter
|
Tuned
Joined: Aug 2019
Posts: 253
Likes: 4
There are only 3 wires feeding the injectors on that truck, a common power lead linked to all of them and 2 separate grounds linked to batches of 3. A donor harness would be a good way to get the necessary parts but you don't need the whole engine harness just these wires. With this small section removed from the donor harness you could just add it on top of what is already there in your truck and insert the pins in the existing bulkhead connectors or splice them in if the connector pins are different. I'd suggest cutting off the old injector connectors just to minimize confusion but no need to remove the old wiring once it is disconnected.
Trending Topics
Lead Driver
Joined: Jan 2019
Posts: 5,066
Likes: 863
From: N.W. Alabama
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
FTE Legend
Joined: Jun 2006
Posts: 31,930
Likes: 1,499
From: Ottawa, Ontario

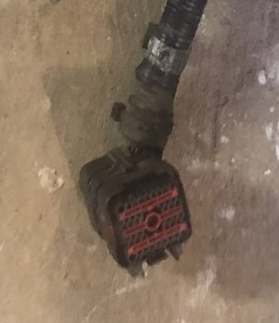

No that is the WHOLE engine harness, but yes that perfectly demonstrates the differences from the early to later models.
Laughing Gas
Joined: Dec 2005
Posts: 904
Likes: 115
From: Laurel, MS
True, but there is no stand-alone injector harness from the factory that I'm aware of.
The wires for the injectors are part of the whole engine harness.
So, unless you build your own or buy some sort of conversion harness there's no such thing as an "injector harness".
The wires for the injectors are part of the whole engine harness.
So, unless you build your own or buy some sort of conversion harness there's no such thing as an "injector harness".
Fleet Mechanic
Joined: Aug 2015
Posts: 1,827
Likes: 358
From: Candy Mountain
There is a "fuel charge" harness, which is everything sitting on the engine including the injectors, and an "engine control" harness, which typically includes most of the rest of the under hood harness.
FTE Legend
Joined: Jun 2006
Posts: 31,930
Likes: 1,499
From: Ottawa, Ontario
Laughing Gas
Joined: Dec 2005
Posts: 904
Likes: 115
From: Laurel, MS
Yes, I read it and understood it - and you are correct, of course - but it sounded like the OP was looking for a new harness that would plug up and work.
I was just making him aware that the '87 - 91 wiring will not plug up to the '92-95 wiring.
I truly meant no disrespect to you or anyone - just trying to save the OP some headaches.
My apologies.
I was just making him aware that the '87 - 91 wiring will not plug up to the '92-95 wiring.
I truly meant no disrespect to you or anyone - just trying to save the OP some headaches.
My apologies.
FTE Legend
Joined: Jun 2006
Posts: 31,930
Likes: 1,499
From: Ottawa, Ontario
Ok yes.. there is no direct plug and play without changing the whole harness... which is a lot of work for 3 wires. But then other parts of the harness could be chewed up too and are not yet obvious so maybe that is the best action to take anyway.
