Superduty Heater core replacement
Thread Starter
|
Its Comin Right for us!
Joined: Feb 2005
Posts: 12,161
Likes: 2,639
From: GA
Superduty Heater core replacement

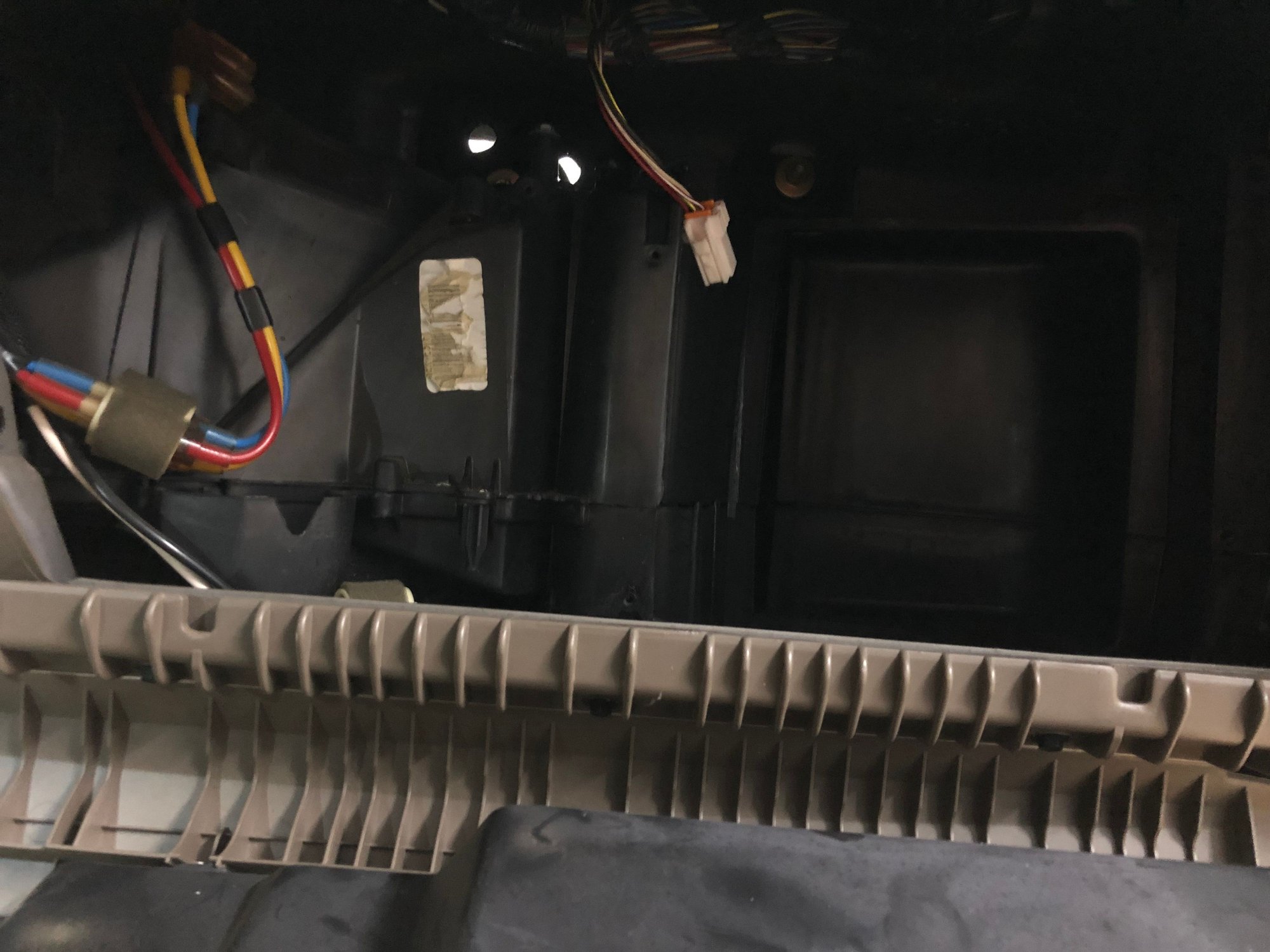

This is the location of the hard to get at 8mm bolt

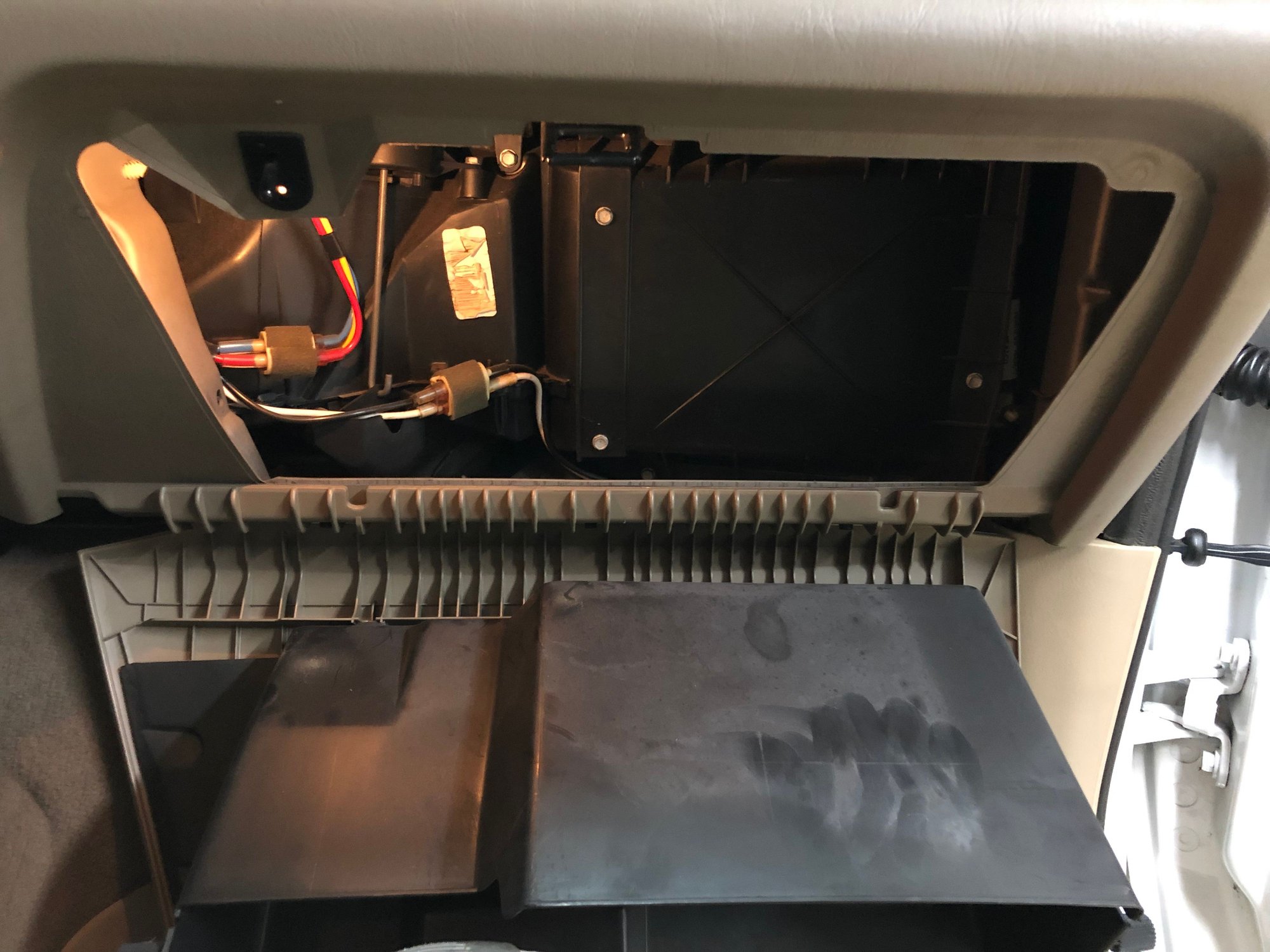

Empty glovebox, push in sides and let down out of way
re

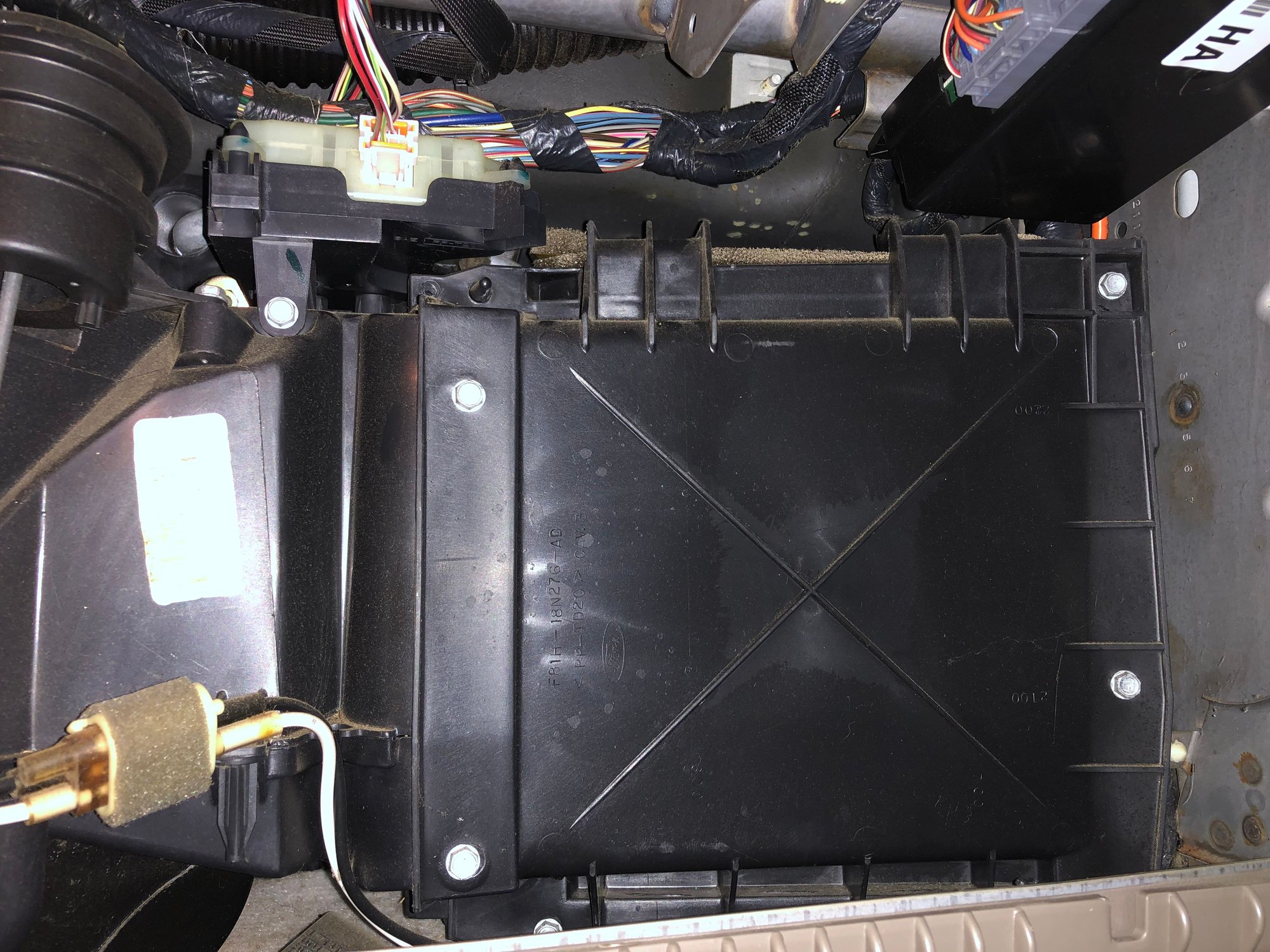

Remove box with 8mm bolts, need swivel for bottom two.
Its a bit tricky, theres a hidden slot on too right corner, you have to push door to right and up to get loose , then it comes right out.
Remove vacuum line holder from Bottom

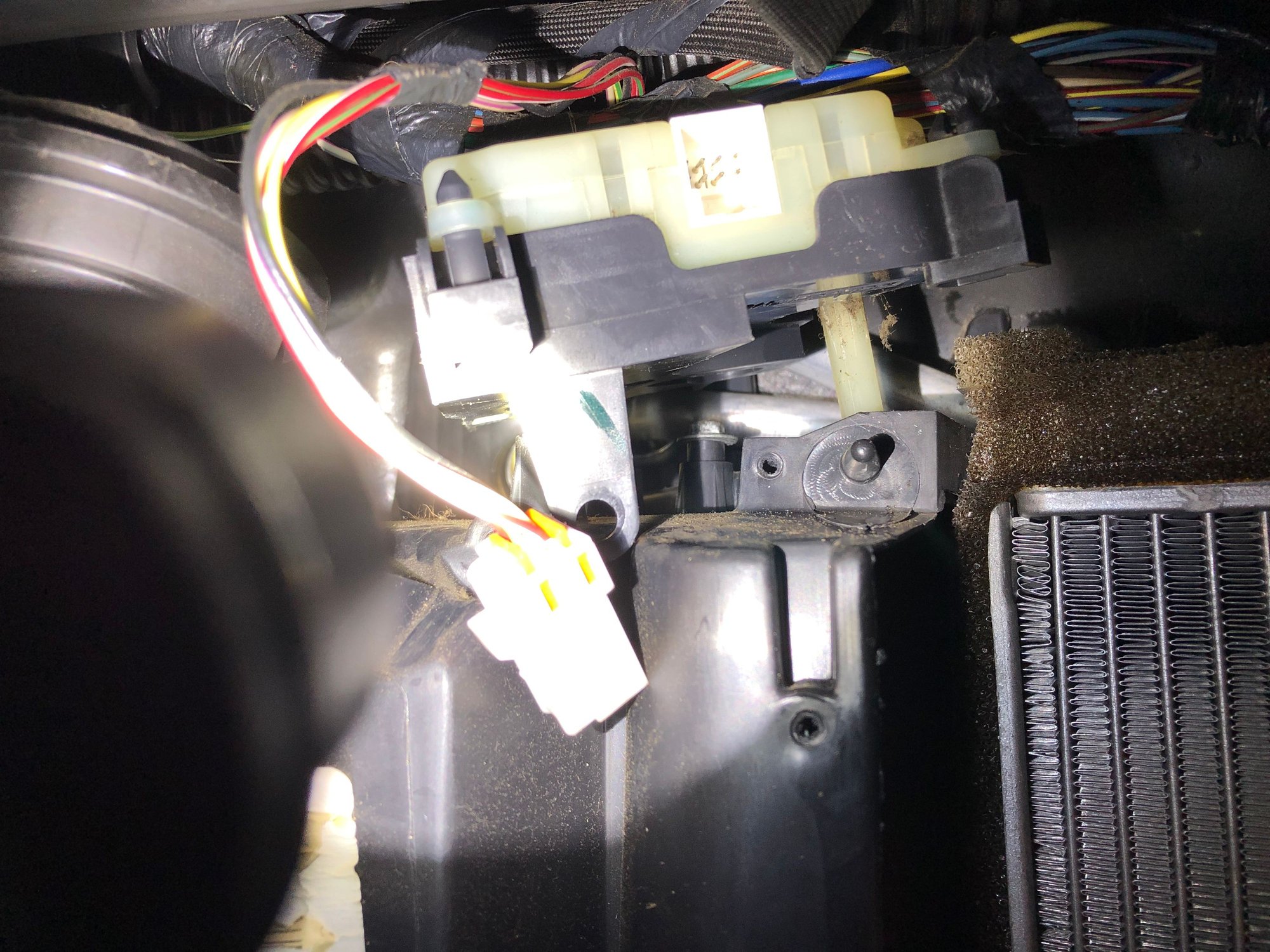

Next the blend door actuator must come out, 2 8mm bolts and a electrical connector

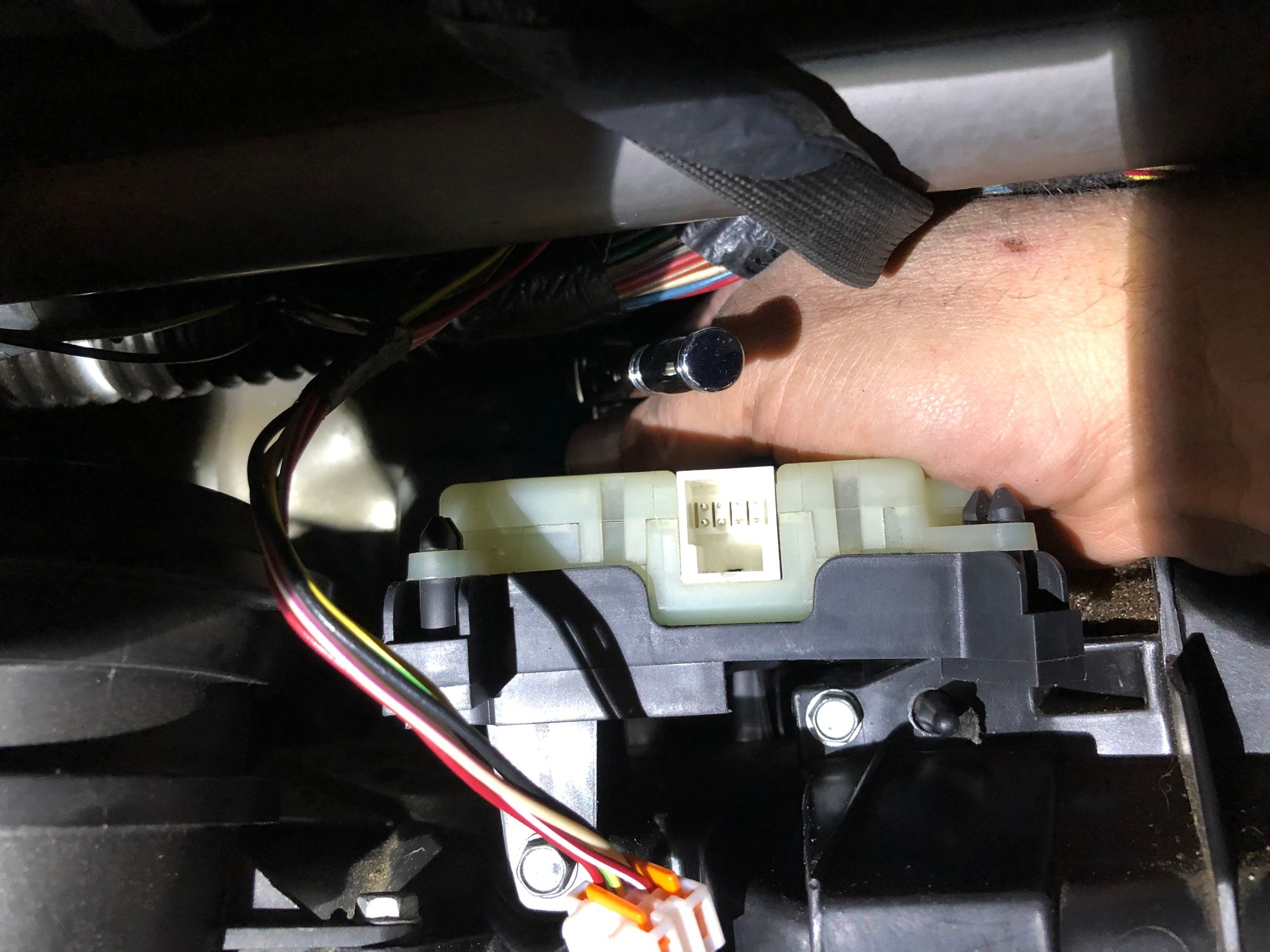

You may have to pry up a bit on the door connector to seperate

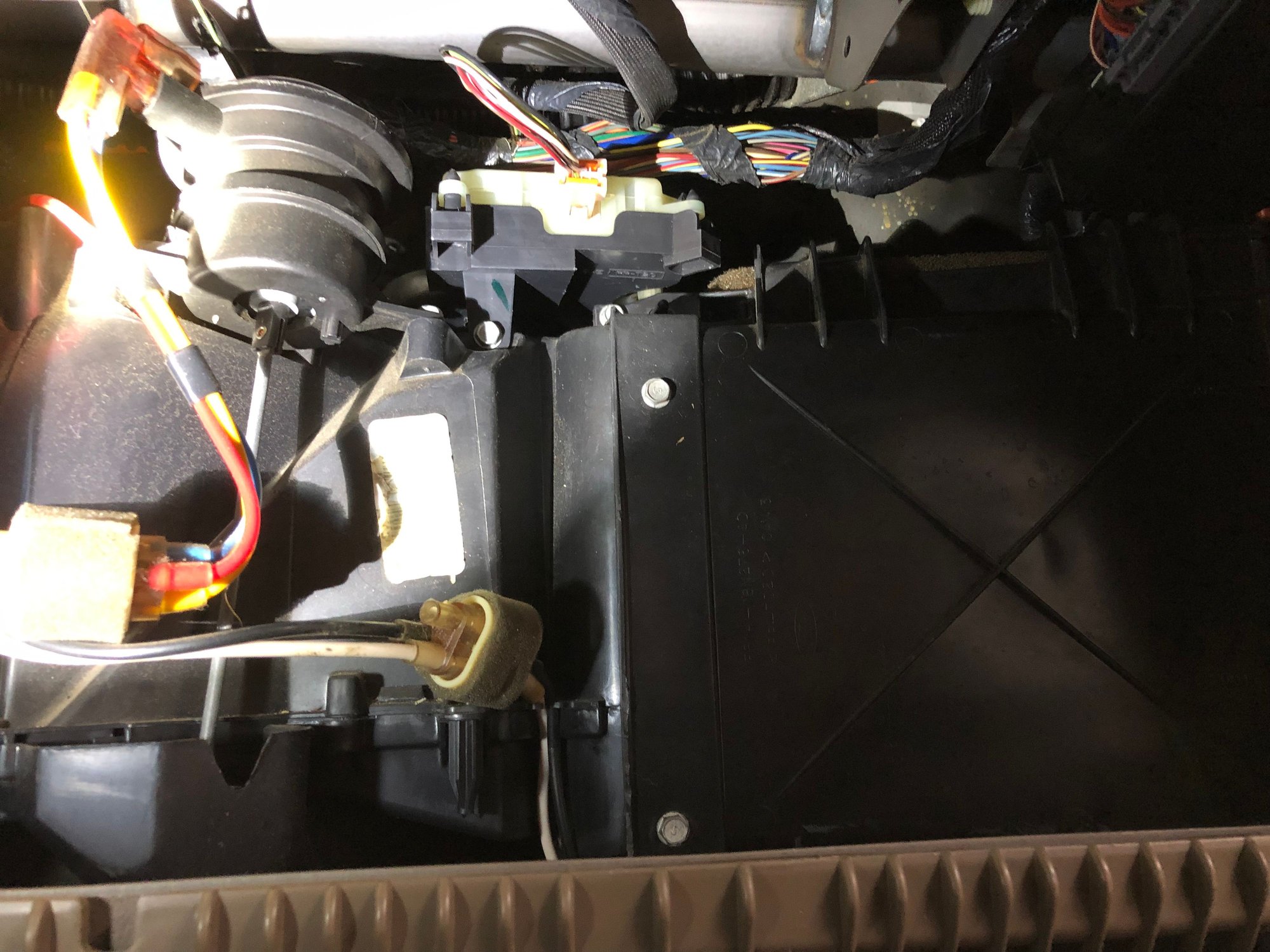

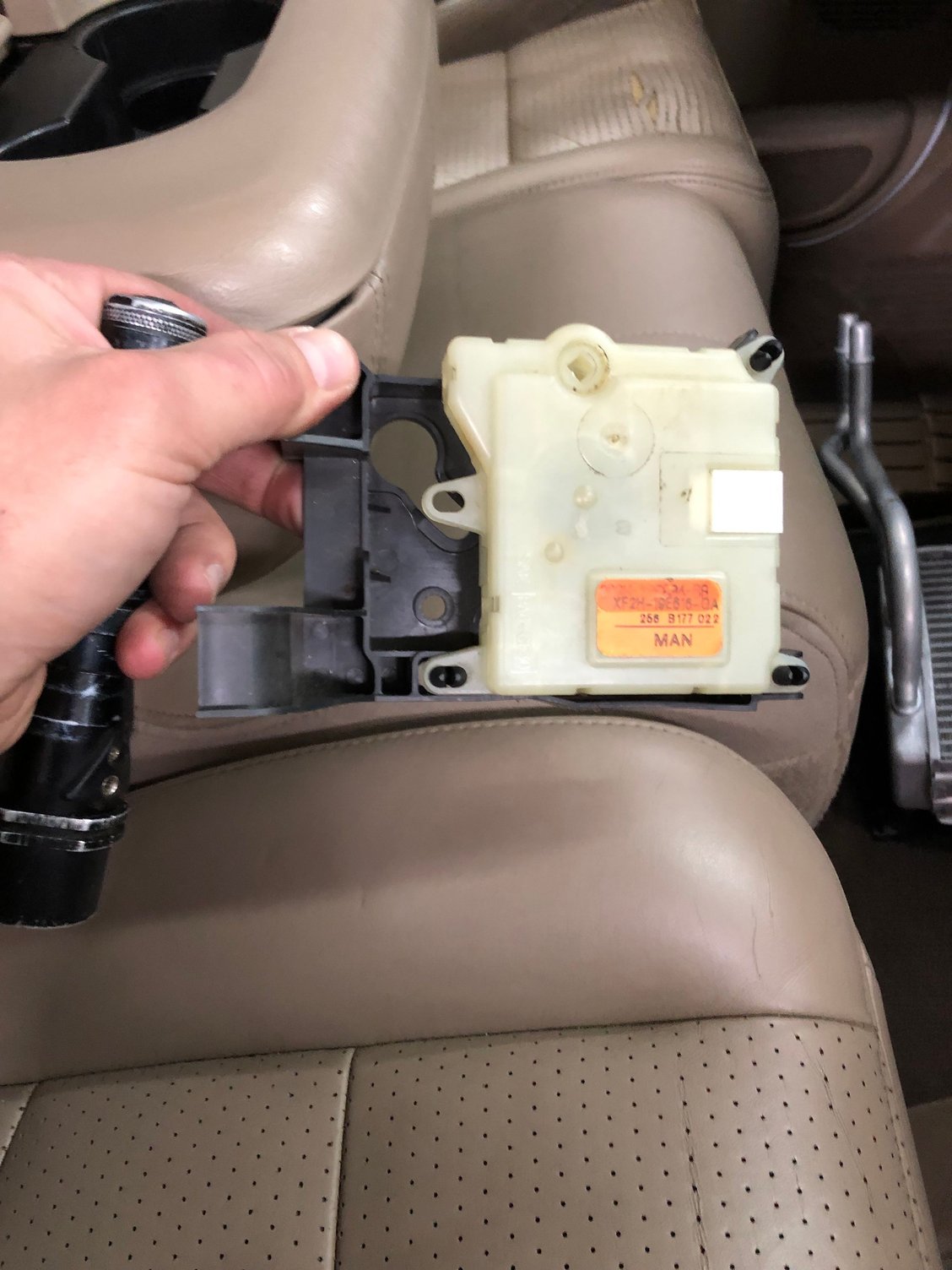

Here it is so you can see what you cant before removal

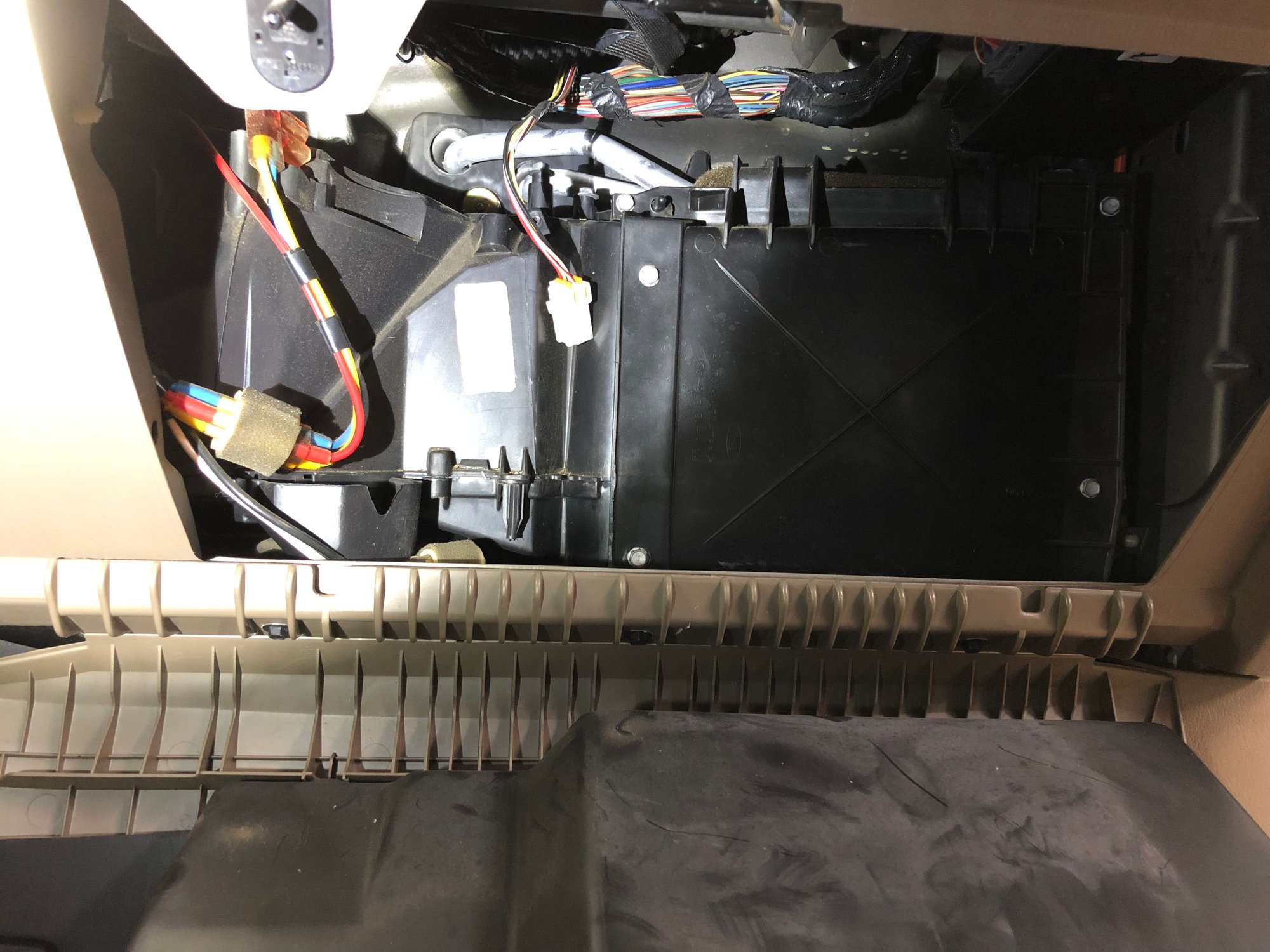

Next comes the mode actuator, two 8mm bolts are obvious

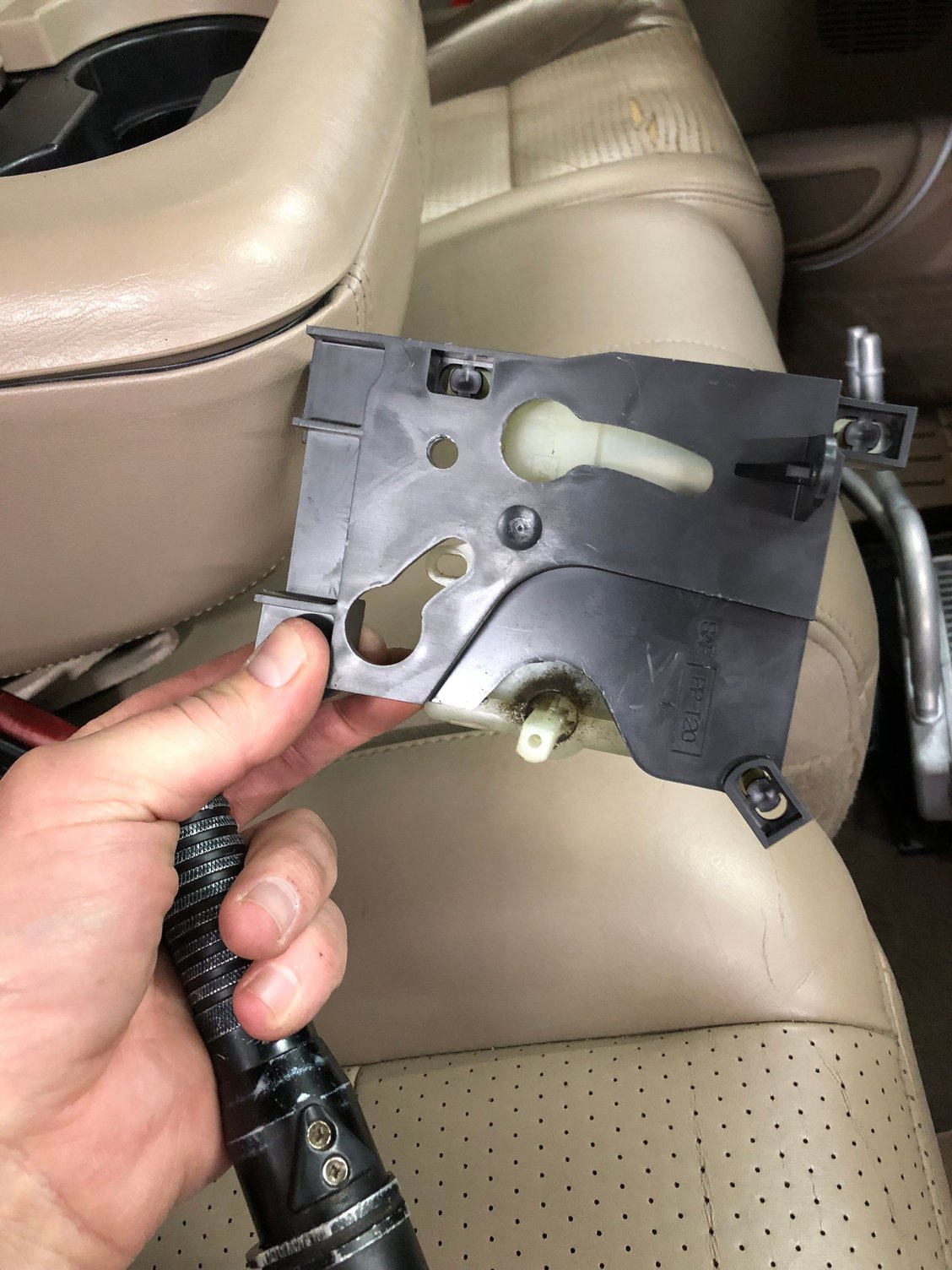

Lay it towards you to remove rod, pretty easy

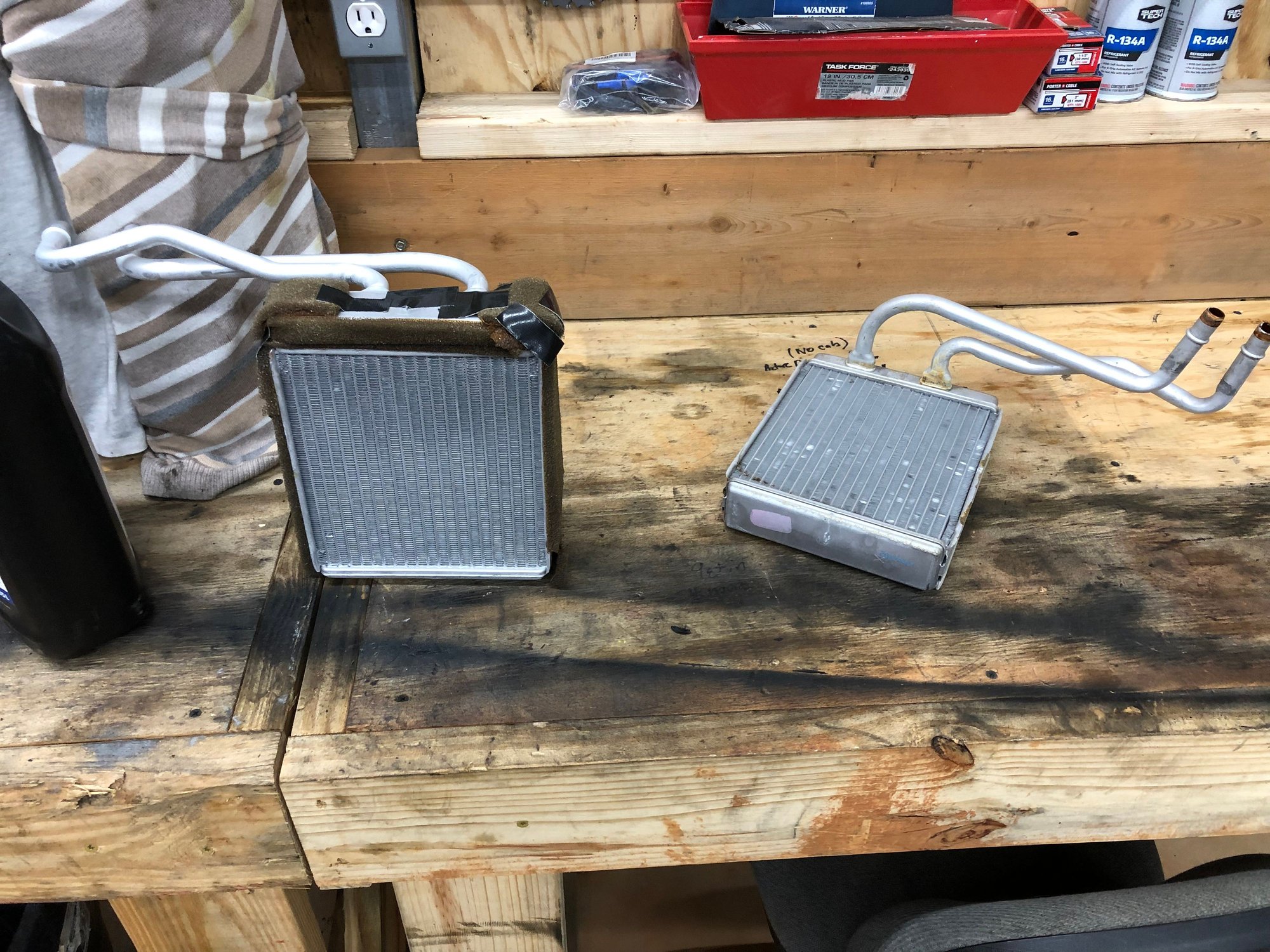

Old core was not leaking but nearly plugged.
very frustrating the new motorcraft core did not come with new padding, so i had to use a bit of gorilla tape in order to reuse what I was able to remove from the old core.
i found this to be the case with my 89 as well, go figure the chinajunk cores come with foam.
Empty

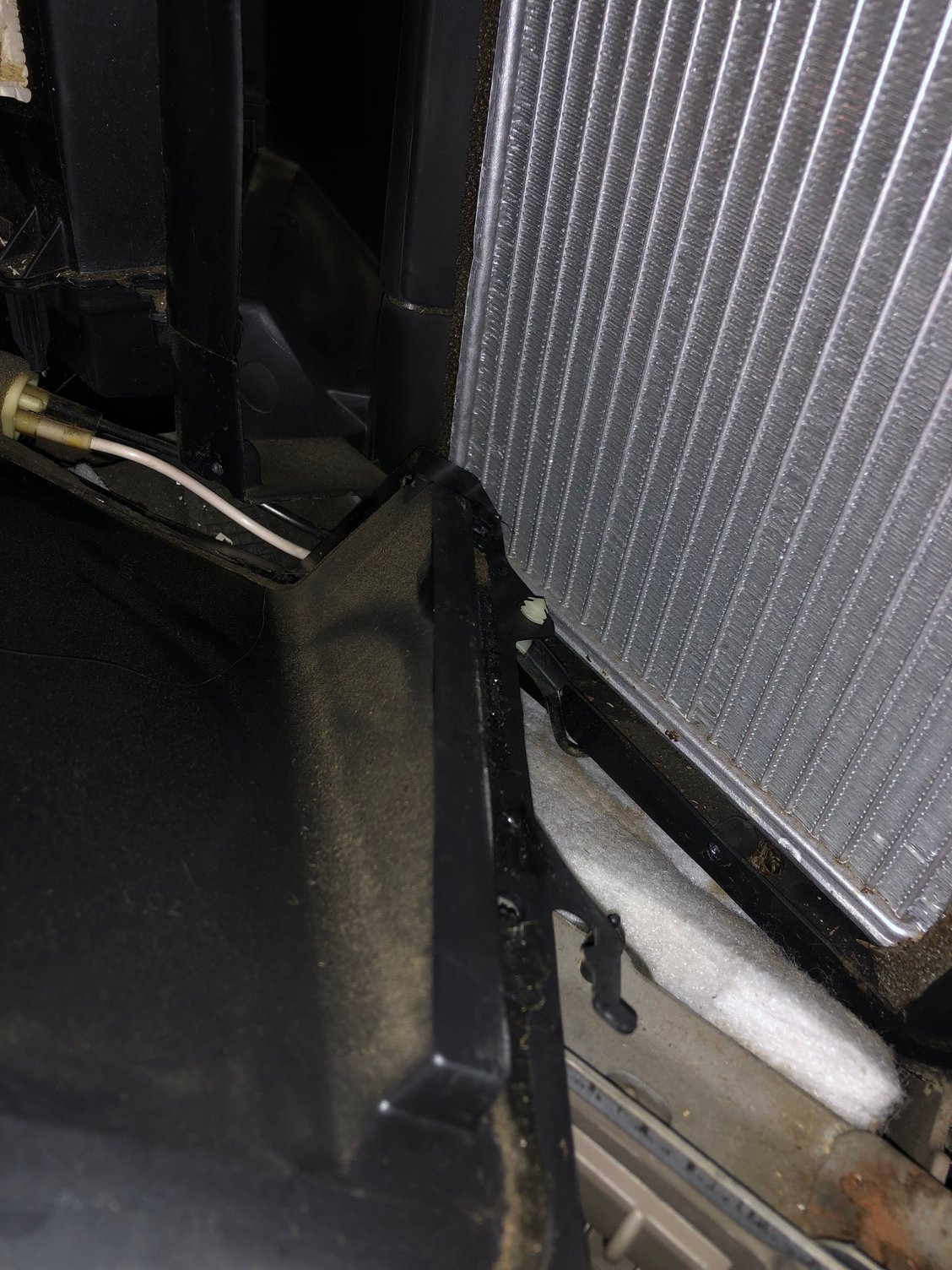

Remove quick connects, i find works best with hands The remove the holders with small pick Now remove and replace core. Be sure to wrap up to prevent rattling and holes .
Put vacuum control back in first, unless you have an 8mm ratcheting wrench, because there isnt room to back off bolt on right with a socket
Then comes actuator

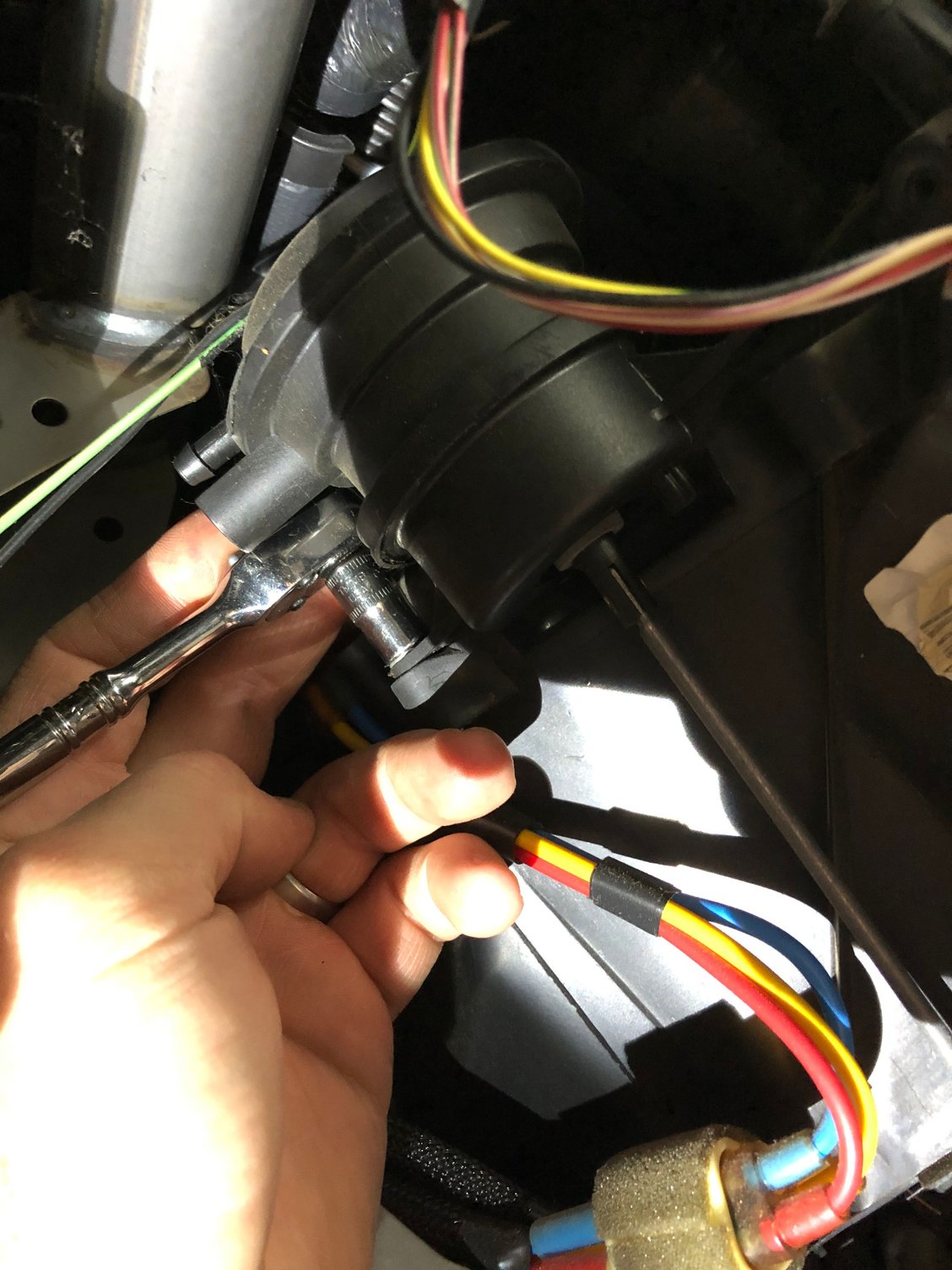

Socket on rear bolt, hard to get your hands in there to get started. I used a deepwell 1/4” drive socket with no extension
Back together, push vacuum lines back in holders
