I thought that as well, in regards to the trans slip.
i just got off work and currently have accelerator pedal position, vehicle speed, gear commanded by module, torque converter slip(actual), torque converter clutch(modulated), torque converter clutch(actual), SS 1-3.
i just got off work and currently have accelerator pedal position, vehicle speed, gear commanded by module, torque converter slip(actual), torque converter clutch(modulated), torque converter clutch(actual), SS 1-3.
Thread Starter
|
Freshman User
Joined: Jul 2019
Posts: 40
Likes: 0
This is everything transmission related I can watch
-coast clutch solenoid control
-electronic pressure control?
-gear commanded by module
-lowest idle throttle position?
-net engine torque?
-overdrive cancel switch/hold switch
-shift indicator light
-shift solenoid 1,2,3
-speed control actuator switch coast
-speed control actuator switch off
-speed control actuator switch on
-speed control actuator switch resume
-speed control actuator switch set/accel
-speed control input switch
-speed control no switch input
-throttle position input
-throttle position mode
-throttle position sensor status
-torque converter clutch-actual
-torque converter clutch-modulated
-torque converter slip-actual
-transmission control indicator light
-transmission range
-transmission range sensor-volts
-unlock convertor for traction control
-vehicle speed
i don’t know which of these actually work for our trucks
-coast clutch solenoid control
-electronic pressure control?
-gear commanded by module
-lowest idle throttle position?
-net engine torque?
-overdrive cancel switch/hold switch
-shift indicator light
-shift solenoid 1,2,3
-speed control actuator switch coast
-speed control actuator switch off
-speed control actuator switch on
-speed control actuator switch resume
-speed control actuator switch set/accel
-speed control input switch
-speed control no switch input
-throttle position input
-throttle position mode
-throttle position sensor status
-torque converter clutch-actual
-torque converter clutch-modulated
-torque converter slip-actual
-transmission control indicator light
-transmission range
-transmission range sensor-volts
-unlock convertor for traction control
-vehicle speed
i don’t know which of these actually work for our trucks
Thread Starter
|
Freshman User
Joined: Jul 2019
Posts: 40
Likes: 0
This is from a stop going to 68 mph. Excuse the commentary.
top left- accelerator pedal position
top middle- VSS
top right-torque converter slip-actual
middle left- transmission range
middle middle- torque converter clutch-actual
middle right- gear commanded by module
bottom left- SS 1
bottom middle- SS 2
bottom right- SS 3
top left- accelerator pedal position
top middle- VSS
top right-torque converter slip-actual
middle left- transmission range
middle middle- torque converter clutch-actual
middle right- gear commanded by module
bottom left- SS 1
bottom middle- SS 2
bottom right- SS 3
Frmr Ford Trans Engr
Joined: Aug 1999
Posts: 24,739
Likes: 2,669
From: SE Florida
That shows that the shift solenoids are being commanded correctly. It doesn't show if that signal gets to the trans or not, the PCM doesn't know that.
throttle position and vehicle speed work, as do the shift solenoid commands. The torque converter, range, and commanded gear are not working, the data doesn't make sense.
throttle position and vehicle speed work, as do the shift solenoid commands. The torque converter, range, and commanded gear are not working, the data doesn't make sense.
Frmr Ford Trans Engr
Joined: Aug 1999
Posts: 24,739
Likes: 2,669
From: SE Florida
This is what you need to do next:
Frmr Ford Trans Engr
Joined: Aug 1999
Posts: 24,739
Likes: 2,669
From: SE Florida
There is no scanner for the E4OD. You need one that can talk to the PCM.1997 diesels were a strange breed. I think Forscan can do it. You can download it free from www.forscan.org. You'll need an ELM327 adapter to connect it to the truck.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Thread Starter
|
Freshman User
Joined: Jul 2019
Posts: 40
Likes: 0

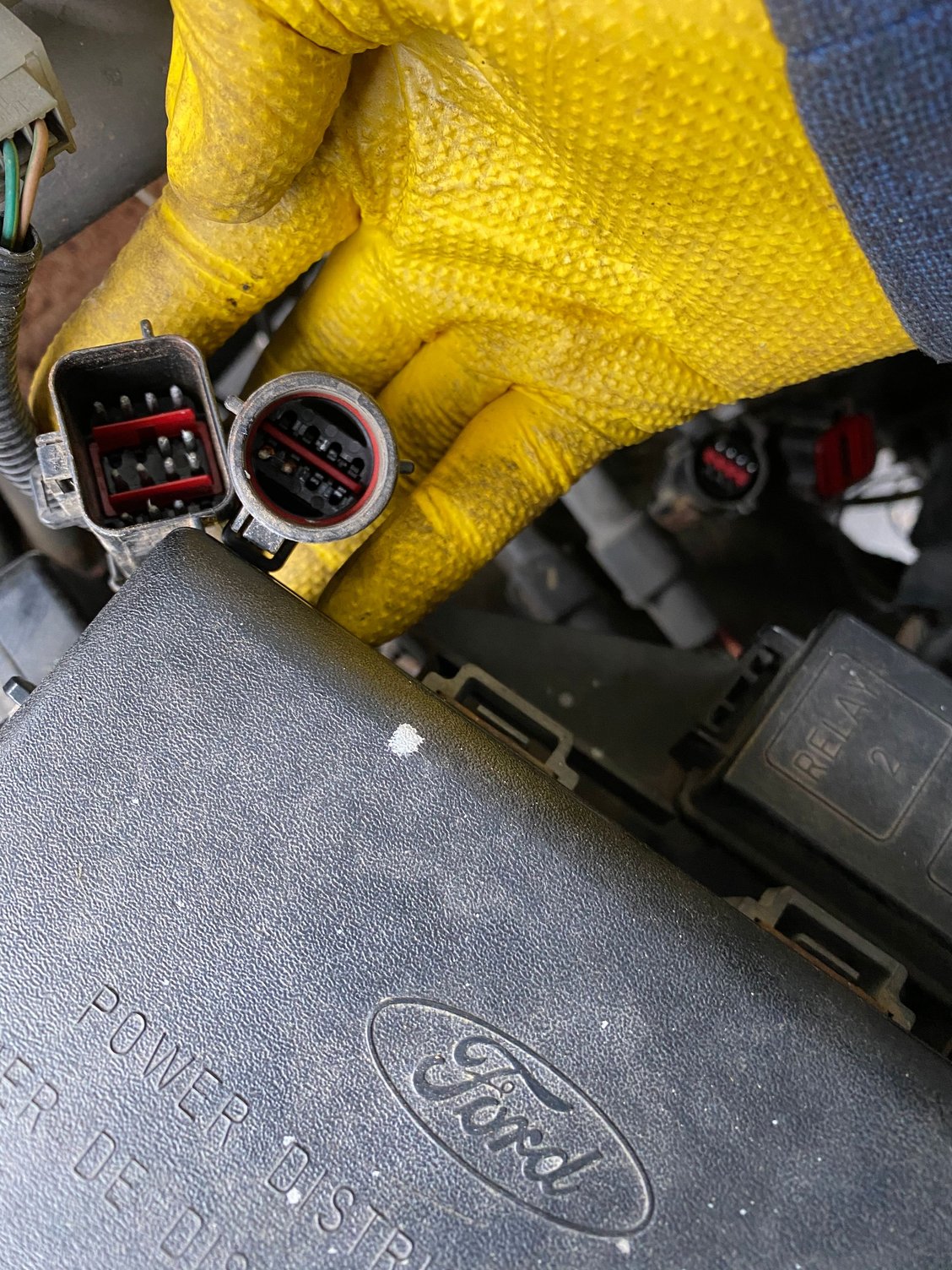

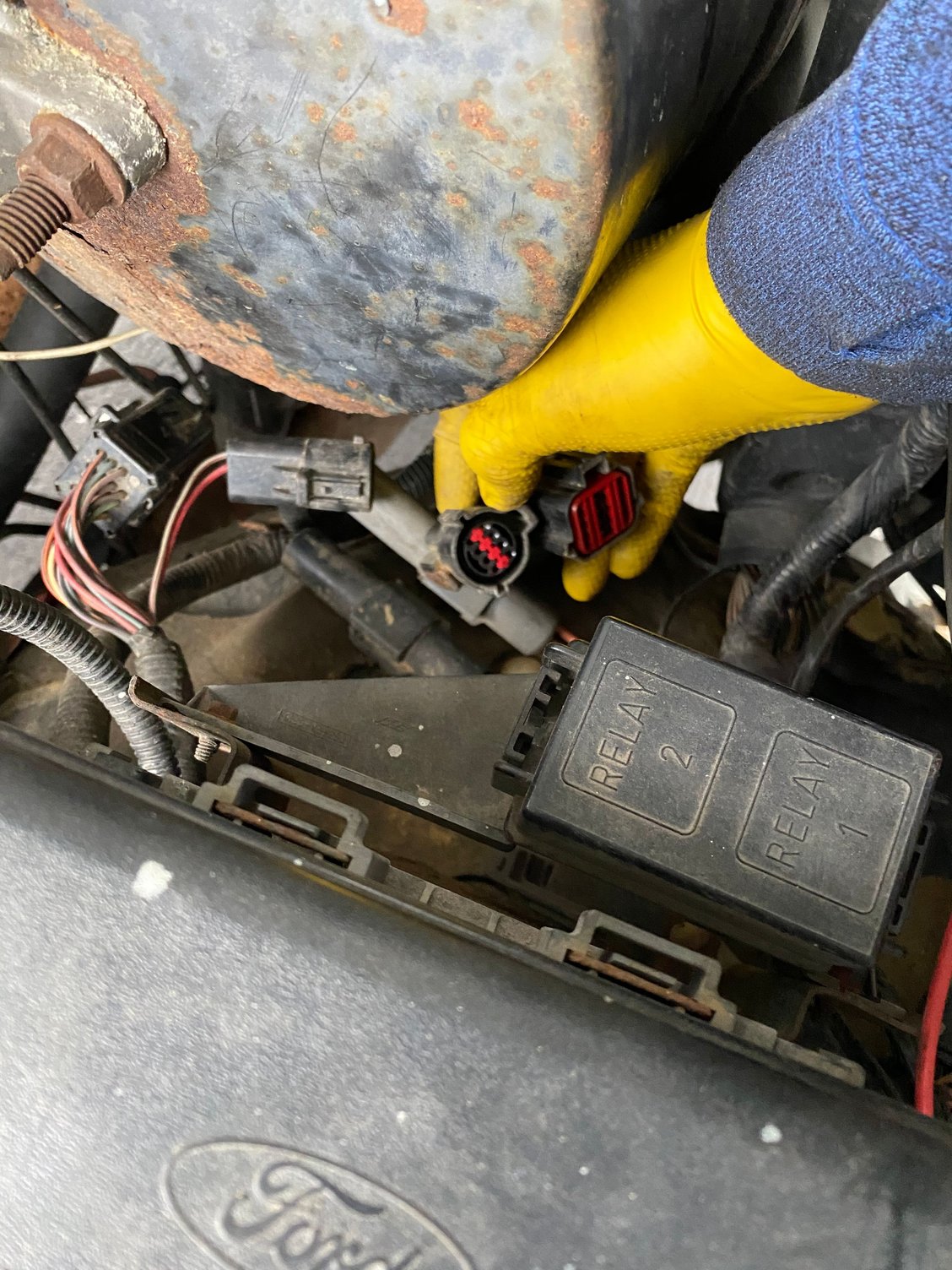

From what I could tell the wiring for the transmission lines up to these two plugs. The circular plug, red wire has 12 V.
i went back to the transmission after that and now I have a dilemma. When I test the red wires on the trans harness and ground to the frame/a bolt I get 1.5V. When I do the same wires but ground to my electric fuel pump I get 12.8 volts. How is this possible? Is the frame/bolt a bad ground and not showing what the power wires are actually getting?
