1986 Dome Light
Thread Starter
|
New User
Joined: Dec 2019
Posts: 7
Likes: 0
1986 Dome Light
Hi! Help!
I have a dome light with a cracked plastic terminal housing which leads me to believe it is disconnected, however what is worse and a whole other problem is that when I switch the map lights on the middle dome light comes on, brighter if I switch on both. Also when those are switched on, the dome light will only work if the door is closed. Something seems reversed... any advice from the wiser among us?
josh
I have a dome light with a cracked plastic terminal housing which leads me to believe it is disconnected, however what is worse and a whole other problem is that when I switch the map lights on the middle dome light comes on, brighter if I switch on both. Also when those are switched on, the dome light will only work if the door is closed. Something seems reversed... any advice from the wiser among us?
josh
Moderator
Joined: Jan 2001
Posts: 56,984
Likes: 2,738
From: Virginia
Here's a diagram. You should have a lightgreen/yellow wire up there. It should be hot all the time 12v. It's for the map lights which can be used at any time. If you can't find a lightgreen/yellow wire up there, that means someone has installed a light with the map light option that your truck was not wired for.
There should be a black/lightblue wire up there, that turns the dome on from the door switches. There should also be a black/pink up there, that turns the dome on from the lightswitch. Do you have a cargo light on back of the cab? If not, that is another clue that your truck did not have the lighting group option. You should have dome lights under the dash on each side also if you have the lighting group option.
There should be a black/lightblue wire up there, that turns the dome on from the door switches. There should also be a black/pink up there, that turns the dome on from the lightswitch. Do you have a cargo light on back of the cab? If not, that is another clue that your truck did not have the lighting group option. You should have dome lights under the dash on each side also if you have the lighting group option.
Thread Starter
|
New User
Joined: Dec 2019
Posts: 7
Likes: 0
Continuing...
Yes, I have both a cargo lamp and floor lighting... the main light turns on when the door is closed and you flip the switches for the map lights... I have never seen the map lights come on. Could I splice into the cargo light wire or should I just look for the third wire yellow and green that I don’t see?
Lead Driver
Joined: Apr 2002
Posts: 5,319
Likes: 1,244
Check the ground screws. IIRC the screws go through the wire end fitting and are also the fixture mounting screws. If the map light has been removed before the connections could have been kluged. It's not a robust design.
Mountain Pass
Joined: Sep 2020
Posts: 167
Likes: 4

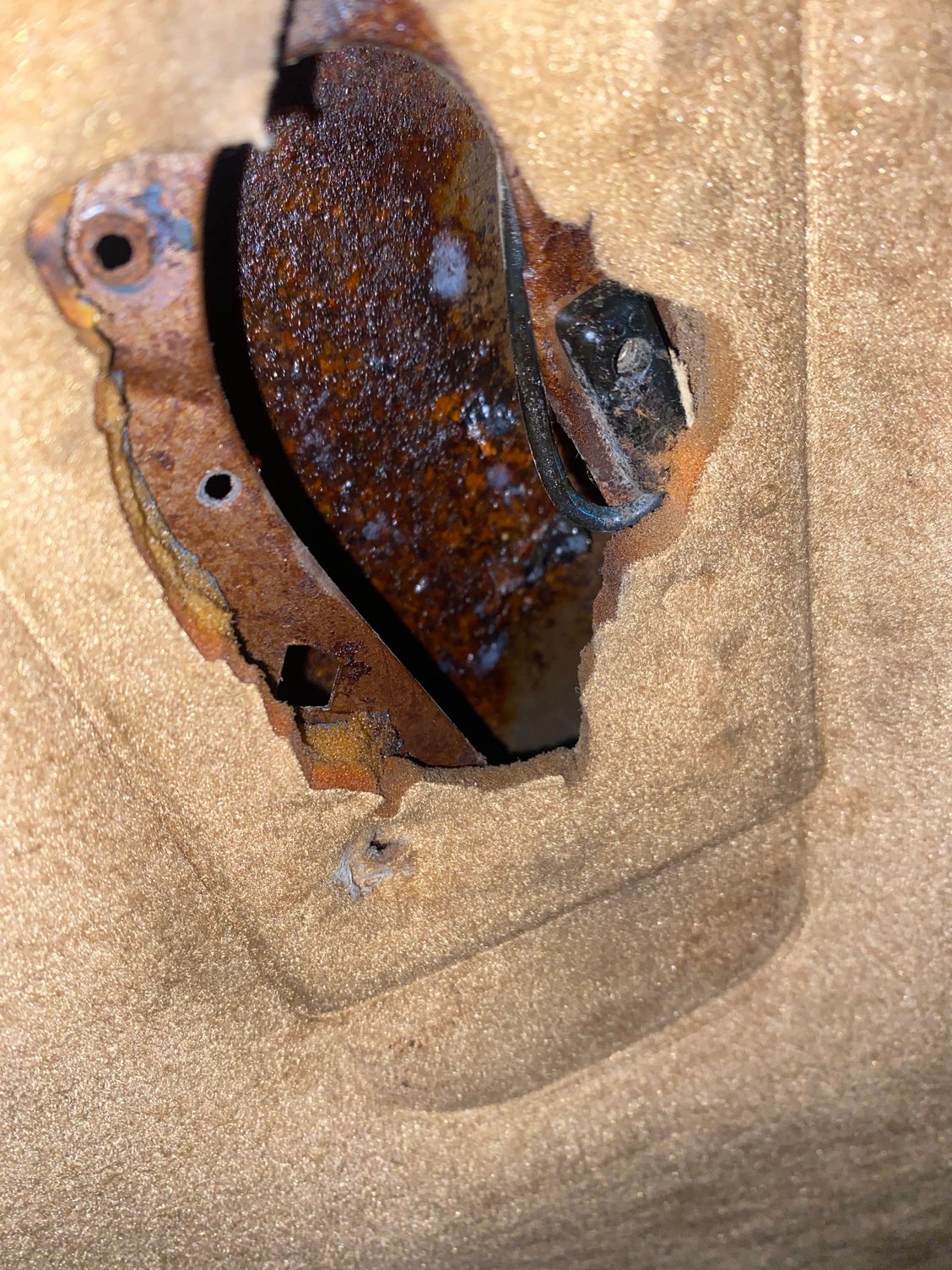

Hey guys having a similar issue with my 86 Bronco. Pulled a dome light from the yard and the main bulk works with open doors as it should but neither switch work. Also there’s only one black wire up there in the photo. Is this normal and if so am I doomed to no light switch?
