Sweet Rita, my '69 F250 working girl treats me right, so I try to return the favor.

Below, Rita strutting her sexy stuff with her lumber load:

Lately she's been letting me know that her column shifter needs some TLC, so I took her advice and decided to quit ignoring the problem. Which was a bit of both tightness and slop in the movement of the shifter tube into which the shifter handle fits. I removed Rita's steering column and set to work. The problem was in the shifter tube, more precisely the tab that slides in the shift collar,

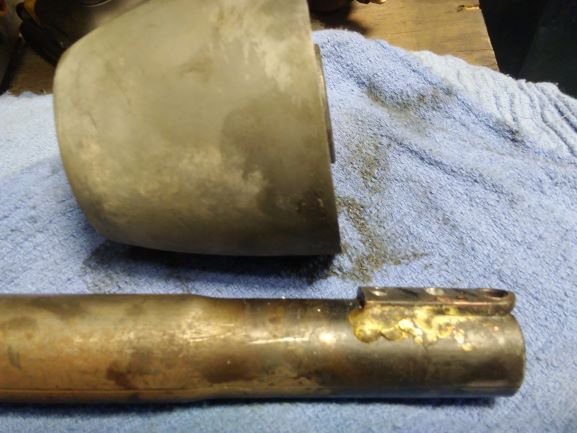

Below, what I found, a little rough on this side:

Above,the two small round indents were intended as reservoirs for lubricant at the factory, which Ford supposed would extend the life of easy shifting out a bit longer. Wrong. It needs to be lubricated periodically, more than Ford expected. Since the collar was not provided with a zerk, it is not easy to get needed lubricant into the collar. Best to remove the shifter stick occasionally and spray some white graphite grease into that tab/collar interface.

Below, a whole lot rougher on this side. This is where the problem stems from:


The large hole is what the shifter handle sticks into. When you pull the shifter to and fro while in neutral, it moves the shifter tube up and down in the collar, in the line directed by the welded on tab. A common problem is for the tab to come loose and you either need a new tube (good luck finding one better than what you already have), or get the tab welded back on. Mine had been brazed in a long-ago attempt to hold the tab on. It was not smoothed, so it caused the shift collar slot to wallow out (thus the slop part) while the rough sides caused the collar to bind up when moved in certain ways.

To fix this, the tab has to be smooth, but that would remove the brazing material that was reinforcing the tab onto the tube. So, re-working the weld of the tab onto the tube was required. The original spot welds by Ford could be weak (probably the case with this tube, and therefore the earlier need to beef it up with additional brazing). But it can't be welded around the edge(as this repair was done) because that interferes with the free and easy movement of the tube in the shift collar. So instead, I made welds that would hold the tab, but not cause binding. Here's how.

First, drill out the small round indents with the correct size spiral bit:

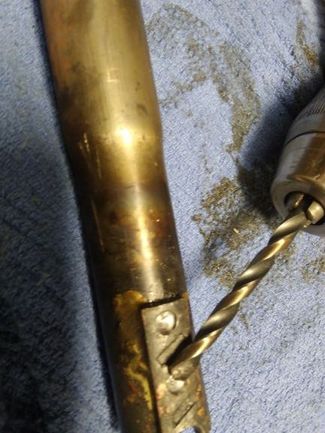

Above, Spiral bit to deepen the round indents of the tab. Get close to the tube but don't go all the way through the tube

Then finish the bottom of the hole with a mill-end bit. This should get you to the top of the tube if you get the depth just right.


Above, mill end bit flattens the bottom of the hole made by the beveled end spiral bit. This puts you to welding right where you want to be, where the tab meets the tube

Then, put a smaller hole through the tube with a smaller spiral bit. This will enable the new weld to key into the tube material, making a stronger weld:


Above, inside of the tube shows the small hole through the tube. Make a through hole in each of the two drilled areas of the tab.

Now you're ready to weld:

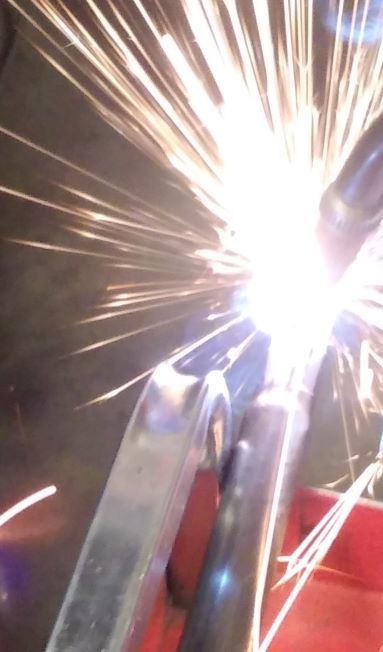

Above, a small wire welder will do the trick

Then dress the tab and tube nicely with files or grinders (be careful!) to ensure no roughness binds the movement of the tube in the shift collar:


Above, files dress the surfaces and contact area without overdoing it

The finished repair should be smooth and free of burrs and distortions so movement is unencumbered:

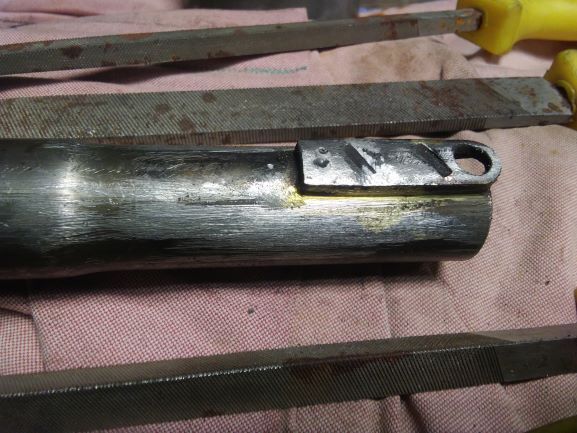

Above, when it looks this spiffy, you're good! Notice that I didn't bother machining new indents for reservoir of lubricant. It didn't work when Ford tried it, so no use doing it again. I'll spray in white graphite lubricant from time to time as described elsewhere.

Next, do yourself a huge favor and put some engine assembly lube on the shift tube and tab, also the inside of the shift collar:

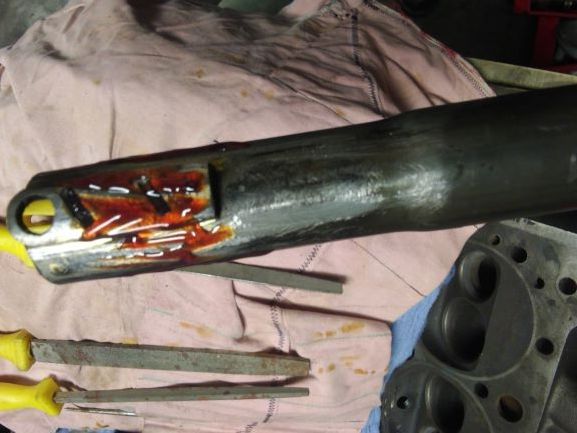

Above, then spread it all around the contact area of the collar and tab and tube circumference

When you're done, it fits and slides like new! Now just get the rest of the shift linkage and transmission adjusted and in good shape and you'll feel like you're driving away from the dealer's lot in your new three-on-the-tree slick, bump, or dent!


Above, perfect fit, perfect action. Rita's happy now.
