alternator harness clocking question
Thread Starter
|
Fleet Mechanic
Joined: Jul 2013
Posts: 1,997
Likes: 237
From: NE Ohio
alternator harness clocking question
I believe my alternator bearing is going bad and I wanted to upgrade to a 100 amp. (1g)
Found a reman AC Delco but it is only a 12 clock. I need to double check mine but I don't think it is clocked at 12.
Anyone know if there is enough slack in the wiring to reach different positions?
Found a reman AC Delco but it is only a 12 clock. I need to double check mine but I don't think it is clocked at 12.
Anyone know if there is enough slack in the wiring to reach different positions?
Thread Starter
|
Fleet Mechanic
Joined: Jul 2013
Posts: 1,997
Likes: 237
From: NE Ohio
saw the taurus tip in a recent thread here and thought I'd go that route instead of stock.
Moderator
Joined: Jan 2001
Posts: 56,977
Likes: 2,733
From: Virginia
Taurus is 3G correct? You are going to have re-wire anyway, so the wire position should not matter, as long as something is not in the way where the wires plug in.
Post Fiend
Joined: Feb 2008
Posts: 5,831
Likes: 121
From: St Albert, Alberta
He is talking about the early Taurus 1G Alt I suspect.
You need to have a large frame 1G alt on your truck to do this swap. The Large case Alts have all the connections on the side, small case Alts on the back. (See below pics)
The Alt can be re-clocked but you need to be careful doing it. Take out the 4 bolts holding the case together. And loosen the stator from the front case. You can then twist the back case and stator to where it needs to be clocked at.
NOTE: YOU MUST turn the stator and back case together or you will damage the stator wiring.
If you end up pulling the back of the case and stator off the rotor all is not lost.
On the back of the case, you will see a small hole just above the bearing housing. Get a chunk of rebar tie wire about 3 " long, on the inside of the case you push the slip ring brushes up in to place then insert the wire to hold them. This wire holds the brushes clear of the slip rings when you put it back together.
Once you reassemble the alt remove the wire. This applies to all Motorcraft Alts 1,2 and 3G
Large case
Small Case
Thread Starter
|
Fleet Mechanic
Joined: Jul 2013
Posts: 1,997
Likes: 237
From: NE Ohio
Anyone know if a large case bracket can be procured from someplace for a 460?
I'm guessing that is what the issue is here? a large case will not fit the smaller case bracket due to the distance between ears?
Just trying to think of ways to work around this.
Might be better to ask in the 460 section but thought I'd try here first and keep it all together.
I'm guessing that is what the issue is here? a large case will not fit the smaller case bracket due to the distance between ears?
Just trying to think of ways to work around this.
Might be better to ask in the 460 section but thought I'd try here first and keep it all together.
Trending Topics
Post Fiend
Joined: Feb 2008
Posts: 5,831
Likes: 121
From: St Albert, Alberta
Anyone know if a large case bracket can be procured from someplace for a 460?
I'm guessing that is what the issue is here? a large case will not fit the smaller case bracket due to the distance between ears?
Just trying to think of ways to work around this.
Might be better to ask in the 460 section but thought I'd try here first and keep it all together.
I'm guessing that is what the issue is here? a large case will not fit the smaller case bracket due to the distance between ears?
Just trying to think of ways to work around this.
Might be better to ask in the 460 section but thought I'd try here first and keep it all together.
If the mounting is as such (See below a 390 but the same idea)) a separate single-bolt adjusting/tensioning arm. You can use either small or large case alternator on this setup. Although it will not be a perfect fit at the extreme end of the slack adjustment you can make it work.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Moderator
Joined: Jan 2001
Posts: 56,977
Likes: 2,733
From: Virginia

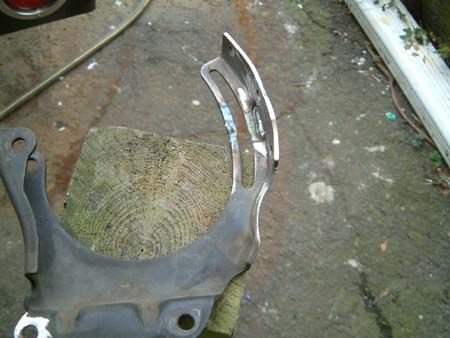

I ran into that with my ranger when I retro fitted a 100 amp GM alternator on it off a Monte Carlo. If you look at the picture above with the red circle, I just took the bolt to the right loose, welded a extension to bring it up higher, and then re-used it like that. That gave me the increased distance I needed to clear the larger alternator.
