- what's the backlash?
Diff Gear Pattern
Post Fiend
Joined: Nov 2001
Posts: 6,748
Likes: 118
From: Tallassee, ALabama

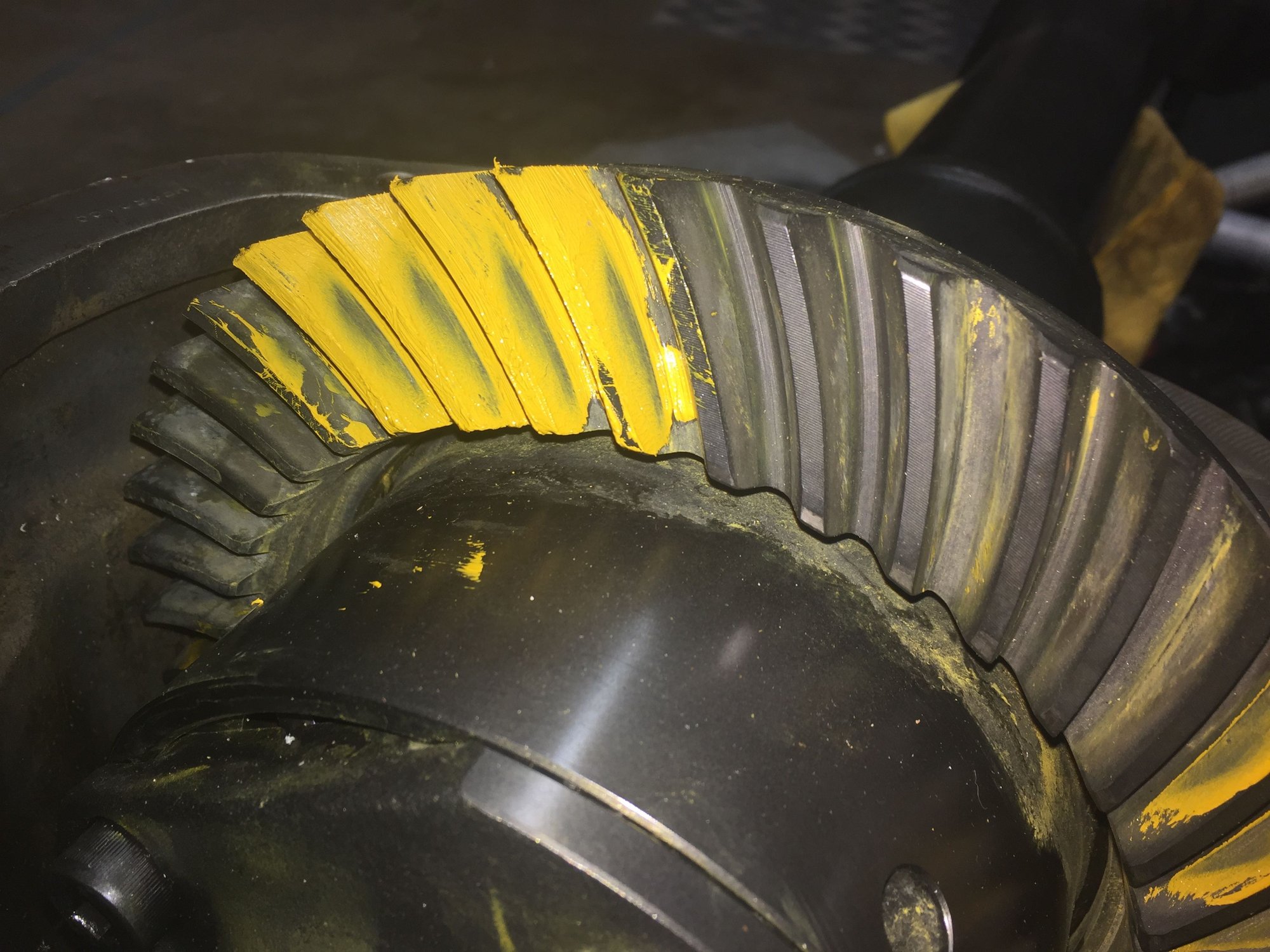

The pattern looks acceptable to me. Compare to the photos from Yukon Gear installation directions
https://www.yukongear.com/downloads/...structions.pdf
https://www.yukongear.com/downloads/...structions.pdf
FTE Leadership Emeritus
Joined: Jul 2002
Posts: 42,561
Likes: 423
From: Long Island USA
The pattern should be oval and not flat on one side like your pictures show.
What manufacturer are the ring and pinion set?
Check out the patterns in this article: https://www.pirate4x4.com/tech/billavista/Gear_Setup/
On the concave side of the teeth, the pattern should be nice and oval.
What manufacturer are the ring and pinion set?
Check out the patterns in this article: https://www.pirate4x4.com/tech/billavista/Gear_Setup/
On the concave side of the teeth, the pattern should be nice and oval.
