While trying to help another builder understand what they are looking at looking for I noticed that I needed to work on my parking brake (OEM hand brake) and it looks like I missing some kind of brace, pully, or pivot point. can someone post pics of the way the front cable leaves the cab and where it goes down the frame, then what it goes thru before it goes to the triangle pivot for the separate brake cable connect to? Help.... Pics are great!



Aod but close to stock









not a very good pic

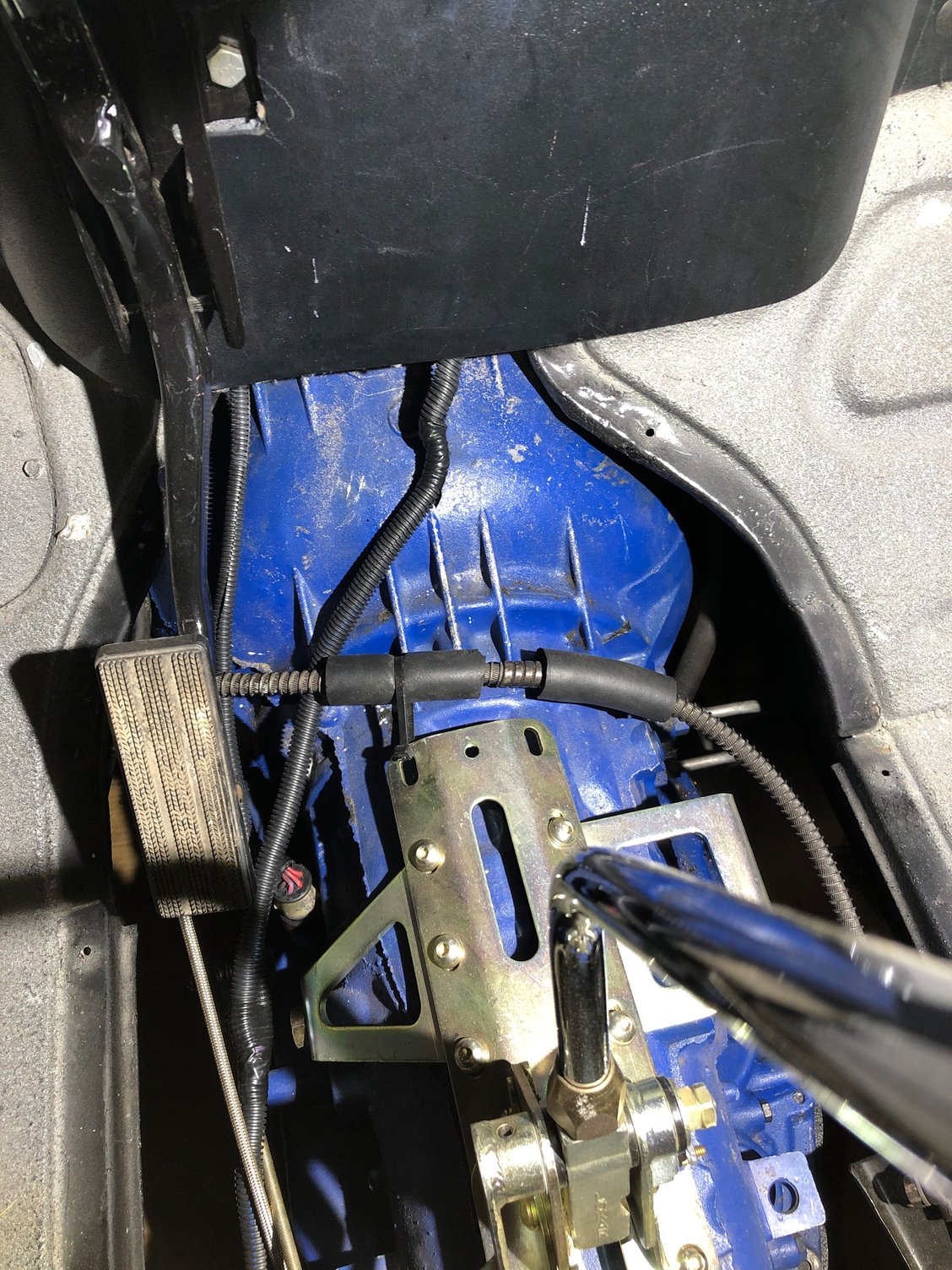

Roy if I see things right the emergency brake runs down the center of the truck and is anchored at the trans mount where the cable sleeve ends and the cable goes to pivot point?



You are correct



I moved the trans crossmember for the aod so I made a mounting plate to use the stock cable at the right side of the trans is your application stock?



not sure if this helps;

https://www.ford-trucks.com/forums/9...ake-parts.html

Let me know what you may need. Mine is done, so I can let the spares go now.

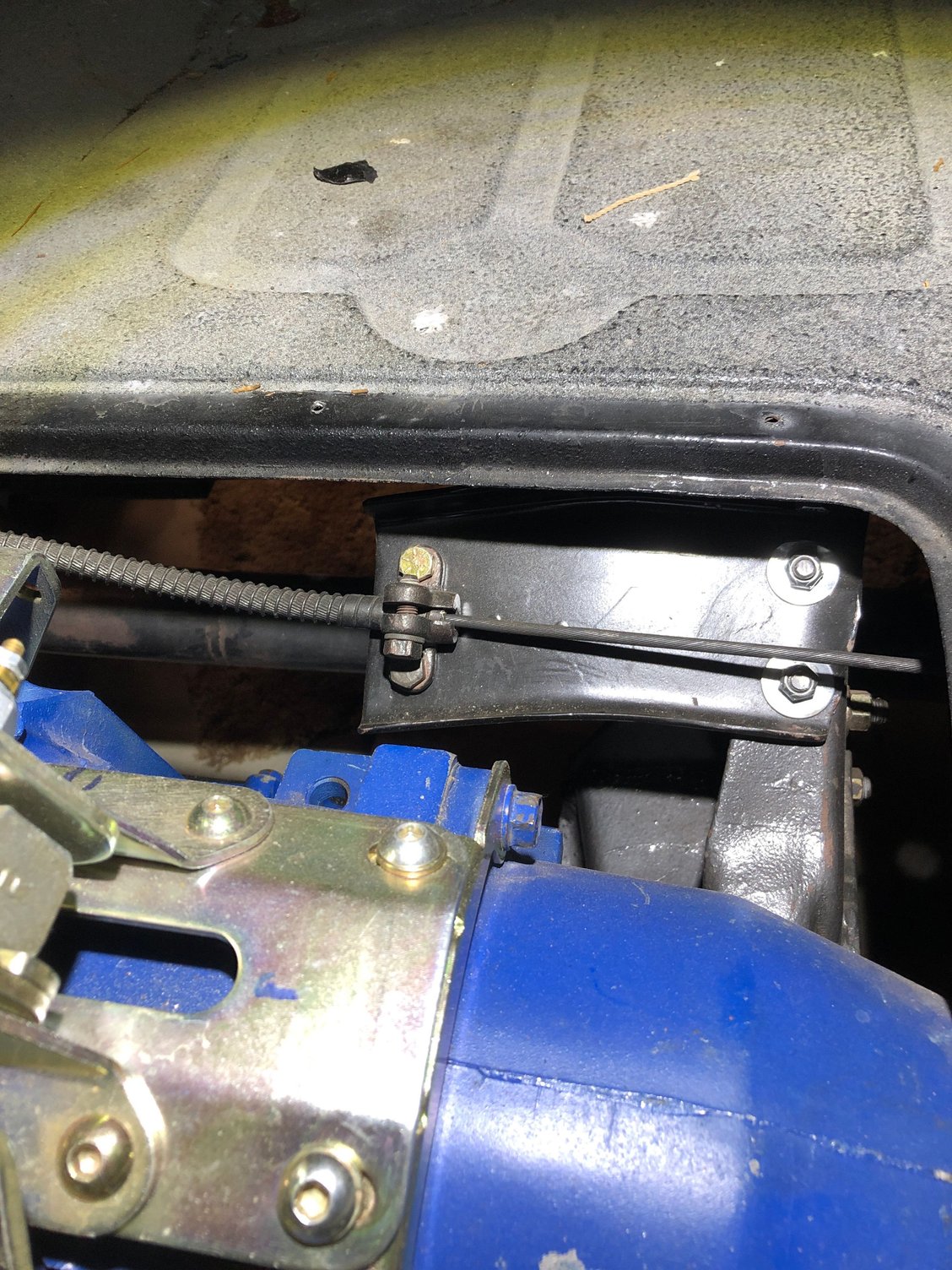

Moe, a couple of pics of my 49...

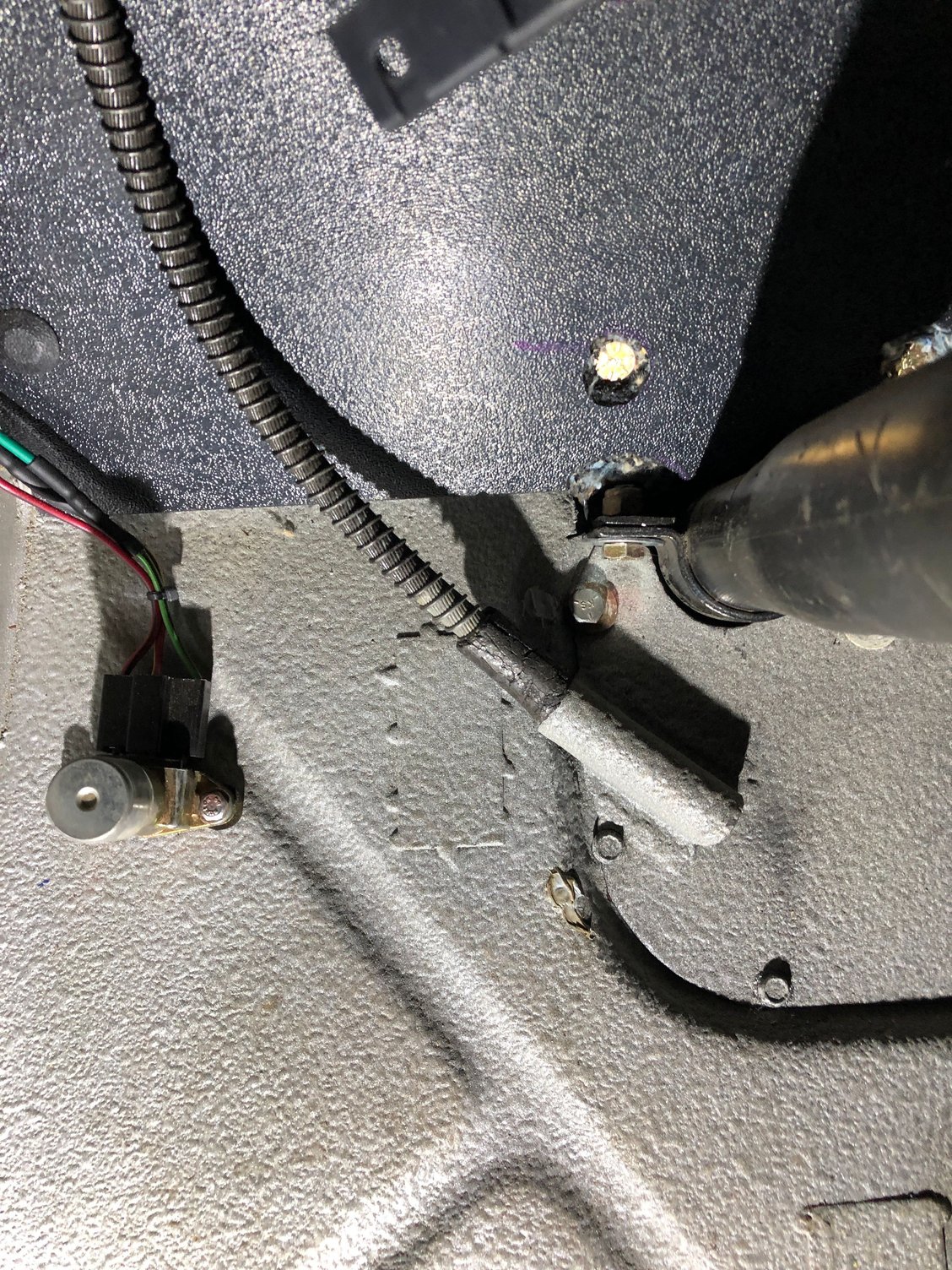

Nice clear pic another cable sup

port

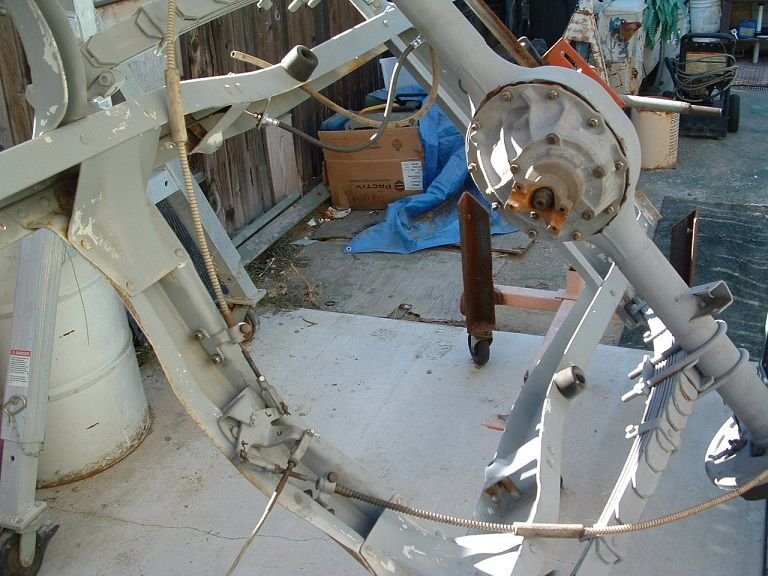

Found this pic on the Internet a while back .... good shot of the bell-crank setup.



Anyone know the part number for the bracket near the trans? Anyone have a spare they can part with? Where did you all get the new boots for the cables?



I get parts from this out fit but their should be a dealer in your area

you can search cablecraft they have dealers I looked in the cat and didn’t see much
