Wiring help

Reply Subscribe

Thread Tools

Search this Thread

Feb 22, 2019 | 12:42 PM

#16

AllaboutMPG

Logistics Pro

Joined: Oct 2011

Posts: 3,953

Likes: 120

From: Mcdonough, GA

Mine is a 2000 xlt and I don't see anything in that location to plug too or a plug. Does your vacuum pump have a connector plugged to it?

Feb 22, 2019 | 12:50 PM

#17

brian42

Lead Driver

Joined: Dec 2006

Posts: 7,092

Likes: 145

From: San Diego, CA

Quote:

Originally Posted by lostfish

I dont see any connections to the vacuum soleniod, it looks like it's located beneath that.

Aaahhh, now I get it. I take back everything I've said so far.

Unfortunately I am at work and can't trace anything out but the line seems to go down somewhere between the battery and vacuum reservoir...

Feb 22, 2019 | 01:03 PM

#18

lostfish

Thread Starter

Junior User

Joined: Sep 2016

Posts: 81

Likes: 0

Quote:

Originally Posted by AllaboutMPG

Mine is a 2000 xlt and I don't see anything in that location to plug too or a plug. Does your vacuum pump have a connector plugged to it?

Yes the vacuum pump has the connector plugged in and the vacuum lines hooked up, the whole unit looks fine. My wifes 00 Ex 7.3 doesn't have this connector either.

Feb 22, 2019 | 01:06 PM

#19

lostfish

Thread Starter

Junior User

Joined: Sep 2016

Posts: 81

Likes: 0

Quote:

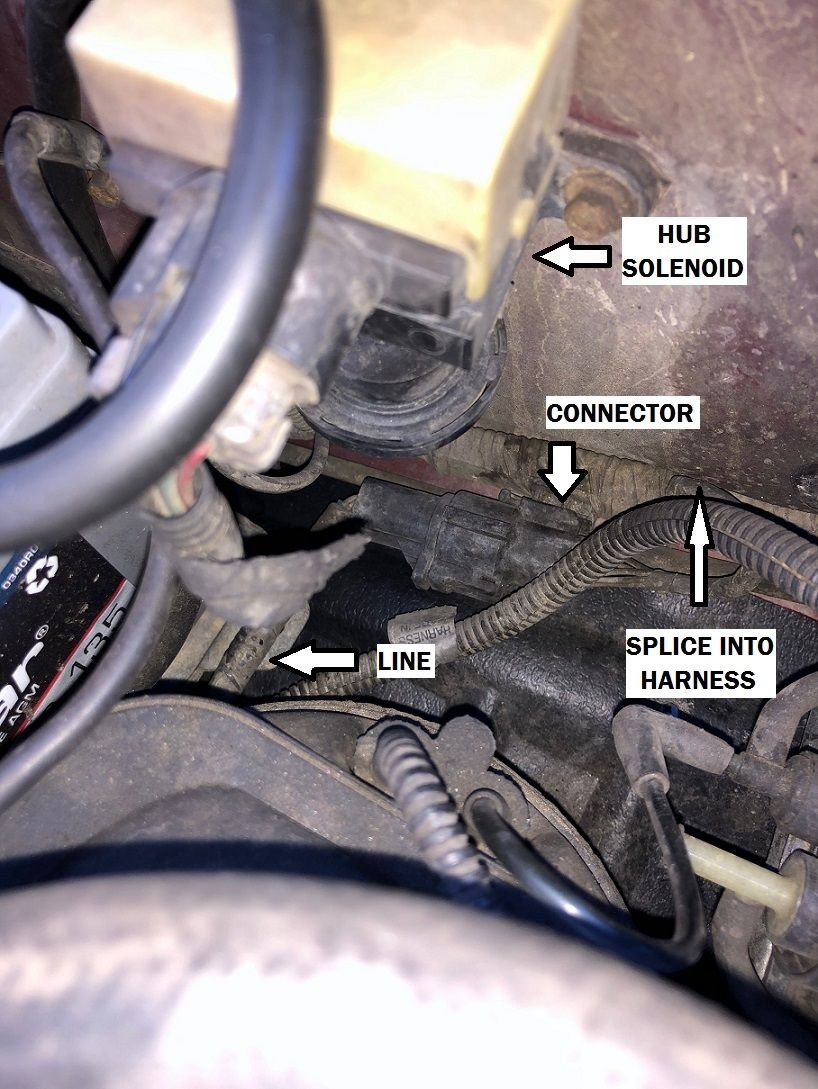

Originally Posted by brian42

Aaahhh, now I get it. I take back everything I've said so far.

Unfortunately I am at work and can't trace anything out but the line seems to go down somewhere between the battery and vacuum reservoir...

That's the connector alright, but mine looks a bit different. Mine is reversed from that picture, where the five wires coming off are facing toward the battery instead, and there is no line coming from it, only the one green chewed up wire facing the cab.

Feb 22, 2019 | 01:29 PM

#20

lostfish

Thread Starter

Junior User

Joined: Sep 2016

Posts: 81

Likes: 0

If I can find the name of that connector and find out what it's purpose is, I can hopefully just replace the part that unplugs and call it a simple fix.

Feb 22, 2019 | 02:13 PM

#21

brian42

Lead Driver

Joined: Dec 2006

Posts: 7,092

Likes: 145

From: San Diego, CA

Quote:

Originally Posted by lostfish

There was an electrical revision/change that started with the 2002 trucks, so even though we have the same functions the 99-01 trucks are wired a bit different than the 02-04 trucks.

Feb 22, 2019 | 02:51 PM

#22

lostfish

Thread Starter

Junior User

Joined: Sep 2016

Posts: 81

Likes: 0

That makes sense, I was going to start to panic haha. Thanks.

Feb 25, 2019 | 04:14 PM

#23

lostfish

Thread Starter

Junior User

Joined: Sep 2016

Posts: 81

Likes: 0

I found a thread where the OP had the same issue, but it wasn't identified what the connector was called, so I thought I'd post it up here in case anyone wanted to read the first couple of posts and hopefully be able to help. Thanks. https://www.ford-trucks.com/forums/1...l#post18502513

FTE Stories

Ford Trucks for Ford Truck Enthusiasts

Top 10 Ford Truck Tragedies

Joe Kucinski

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

Brett Foote

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Michael S. Palmer

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Verdad Gallardo

10 Best Ford Truck Engines We Miss the Most!

Joe Kucinski

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

Brett Foote

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

Michael S. Palmer

10 Most Surprising 2026 Ford Truck Features!

Joe Kucinski

Top 10 Ford Trucks Coming to Mecum Indy 2026

Brett Foote

5 Best / 5 Worst Ford Truck Wheels of All Time

Joe Kucinski

Feb 26, 2019 | 04:24 PM

#24

Walleye Hunter

Hotshot

Joined: Mar 2014

Posts: 10,750

Likes: 1,065

From: Douglassville, PA

I am not able to find that connection in my truck. Here is a connector catalog that is supposed to have all connectors listed in it (if this works).

Feb 26, 2019 | 04:28 PM

#25

lostfish

Thread Starter

Junior User

Joined: Sep 2016

Posts: 81

Likes: 0

Quote:

Originally Posted by Walleye Hunter

I am not able to find that connection in my truck. Here is a connector catalog that is supposed to have all connectors listed in it (if this works).

Yeah I guess some have this and some don't, I was told it is for connecting a dual alternator setup. Doesn't look like the link for the connector catalog came through.

Feb 26, 2019 | 04:29 PM

#26

Walleye Hunter

Hotshot

Joined: Mar 2014

Posts: 10,750

Likes: 1,065

From: Douglassville, PA

Quote:

Originally Posted by lostfish

Yeah I guess some have this and some don't, I was told it is for connecting a dual alternator setup. Doesn't look like the link for the connector catalog came through.

No it didn't and I tried it several times. If you PM me your email address I can email it to you.
