Cab mount measurements

Does anyone know the cab mount measurements for a 77 ford supercab? I'm looking to mount the body onto a newer chassis and I need the measurements so I can find a truck frame that is closest to this to a cost efficient body swap. Will any of the 80s or 90s frames work?

Reply

Old

Dec 28, 2018 | 06:31 PM

#2

mikeo0o0o0

Hotshot

Joined: Apr 2009

Posts: 14,333

Likes: 247

From: Stanley, VA

Club FTE Gold Member

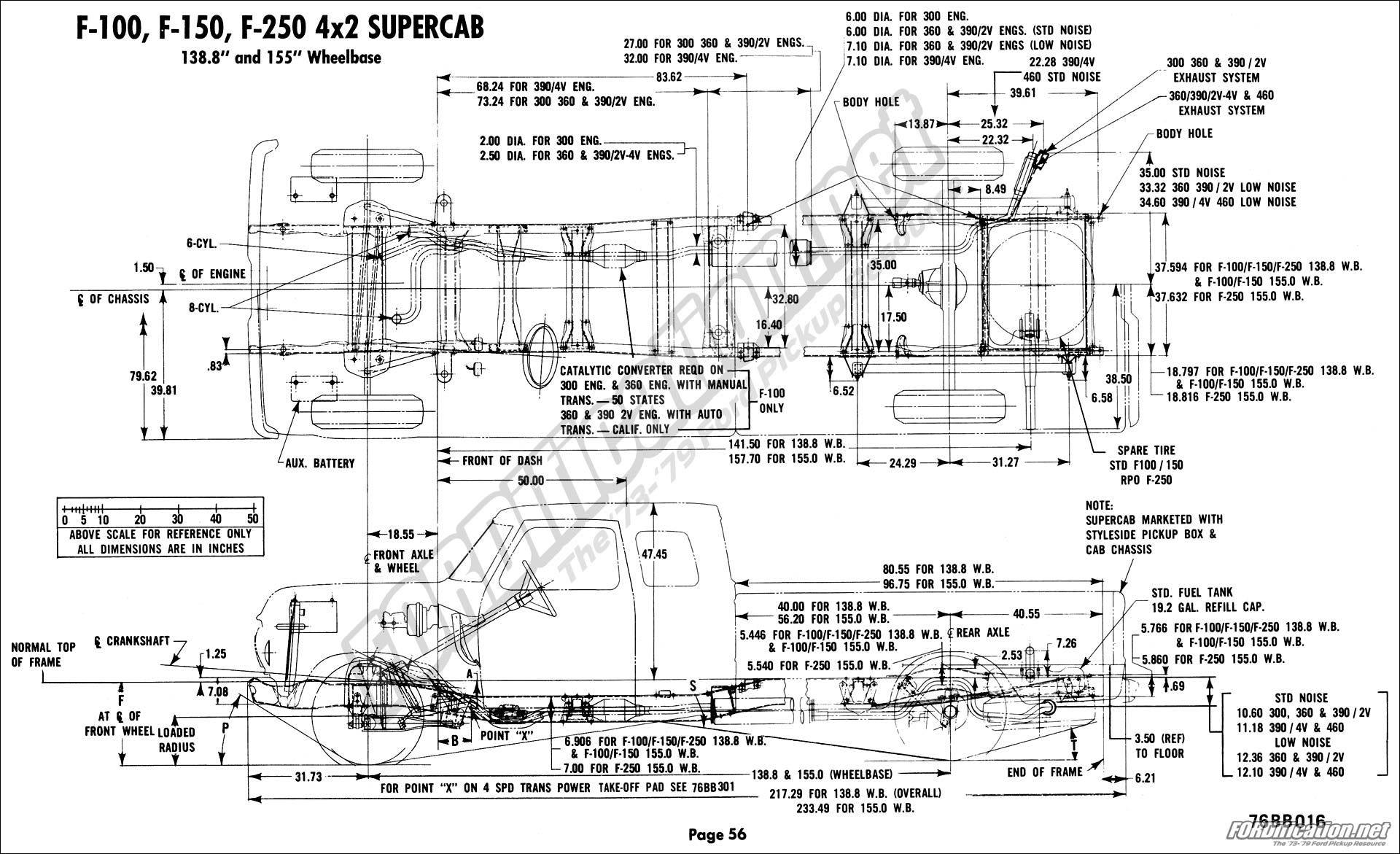

Here's a diagram for a '76 but the dimensions will be the same for a '77. This is from the Ford Body Builders manual.

Reply

Old

Dec 28, 2018 | 06:45 PM

#3

ford390gashog

Fleet Owner

Joined: Jan 2004

Posts: 26,007

Likes: 575

From: Brentwood,CA

Club FTE Gold Member

That's the first diagram from the upfitters guide I have seen. Where did you get it?

Reply

Old

Dec 28, 2018 | 10:54 PM

#4

mikeo0o0o0

Hotshot

Joined: Apr 2009

Posts: 14,333

Likes: 247

From: Stanley, VA

Club FTE Gold Member

Quote:

Originally Posted by ford390gashog

That's the first diagram from the upfitters guide I have seen. Where did you get it?

I have copies of the Body Builders manuals from Ford but on the illustration above I cheated a little

. That one is from fordification.net. Posting from their library was easier than scanning and posting one of my copies.

Reply

Old

Jan 2, 2019 | 08:31 PM

#5

Kevin Malfy

New User

Joined: May 2016

Posts: 13

Likes: 0

Would you be able to send the diagram for a 79 f350 camper special extended cab rwd with a 400 if you have it?

Reply

Old

Jul 8, 2023 | 08:03 AM

#6

mustang81

Laughing Gas

Joined: Jan 2006

Posts: 883

Likes: 7

From: New-brunswick,Canada

Quote:

Originally Posted by mikeo0o0o0

Here's a diagram for a '76 but the dimensions will be the same for a '77. This is from the Ford Body Builders manual.

that can be usefull in the near futur. where did you get that?

Reply
