Charge cable routing
Posted this over in the Excursion sub-forum, but didn't get much response, so I thought I'd try here.
I'm having challenges with some battery terminal clamps on my '01 7.3L Excursion, so I thought I'd go ahead and just replace all the battery cables while I'm at it. That then got me thinking about replacing/upgrading the power cable off the alternator. Between the routing of it, and the wiring loom covering most of it, it's not an easy task to follow the routing of the alternator cable. After it leaves the alternator, it goes across the valley of the engine and then disappears. At that point, does it go down to the starter/starter relay? Basically I'm trying to figure out the proper length of the cable. I will likely just cut the old cable and leave it in place.
thank,
Herb
I'm having challenges with some battery terminal clamps on my '01 7.3L Excursion, so I thought I'd go ahead and just replace all the battery cables while I'm at it. That then got me thinking about replacing/upgrading the power cable off the alternator. Between the routing of it, and the wiring loom covering most of it, it's not an easy task to follow the routing of the alternator cable. After it leaves the alternator, it goes across the valley of the engine and then disappears. At that point, does it go down to the starter/starter relay? Basically I'm trying to figure out the proper length of the cable. I will likely just cut the old cable and leave it in place.
thank,
Herb
Postmaster
Joined: Nov 2015
Posts: 4,807
Likes: 125
From: Colorado Springs
Herb,

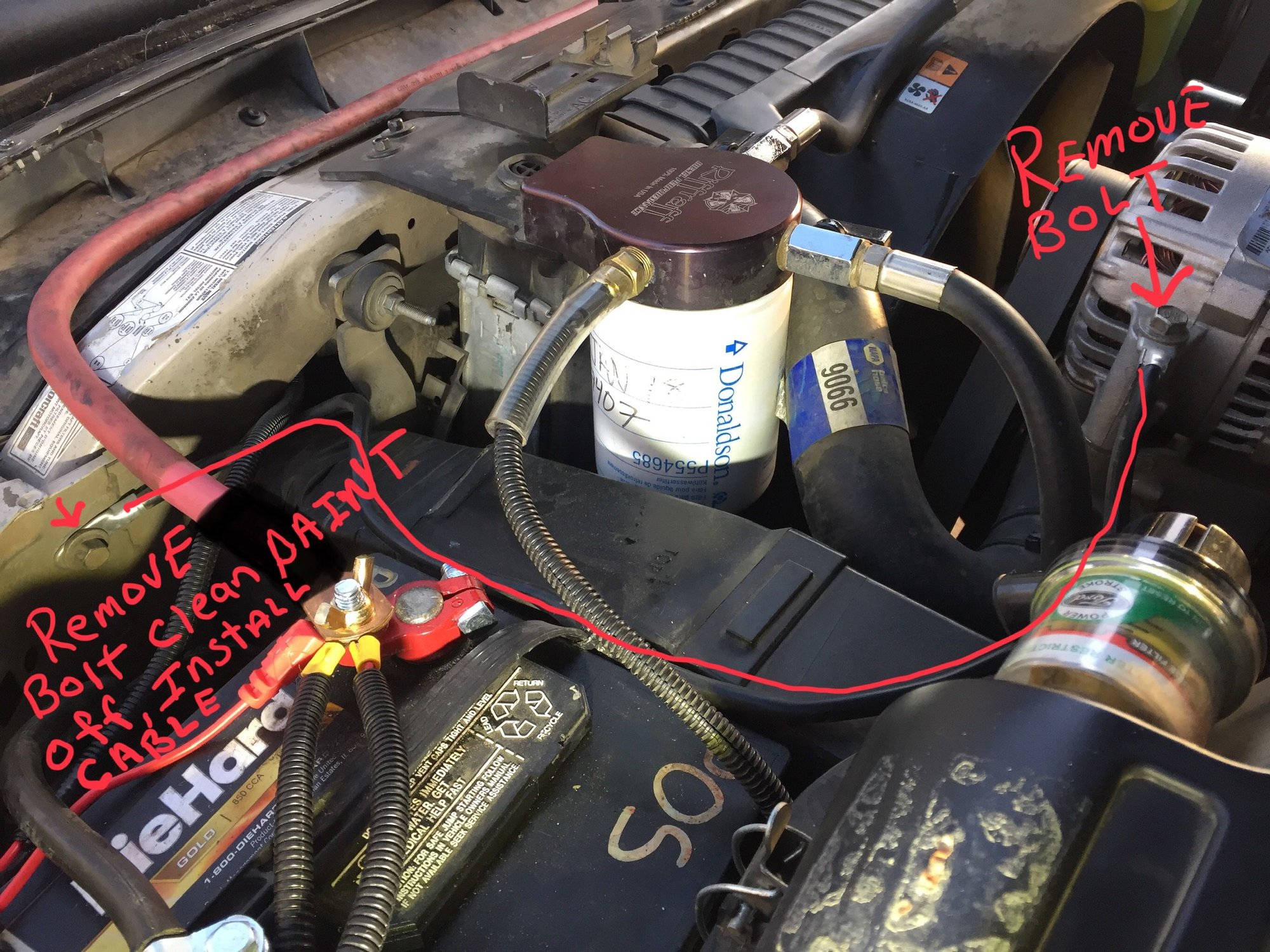

I left the stock wiring in play and added a 4/0 cable from the alternator back to the firewall, along to the passengers side fender well, then a fuse, then to the passengers battery. I also added a 4/0 cable from the passengers side to the DS battery. I bought a pre-made ground cable and went from the alternator mounting bracket to the frame. I can get you lengths if you need them.
Trucks in signature
I left the stock wiring in play and added a 4/0 cable from the alternator back to the firewall, along to the passengers side fender well, then a fuse, then to the passengers battery. I also added a 4/0 cable from the passengers side to the DS battery. I bought a pre-made ground cable and went from the alternator mounting bracket to the frame. I can get you lengths if you need them.
Trucks in signature
Thread Starter
|
Cross-Country
Joined: Jun 2011
Posts: 97
Likes: 1
From: Southern New Mexico
Herb,
I left the stock wiring in play and added a 4/0 cable from the alternator back to the firewall, along to the passengers side fender well, then a fuse, then to the passengers battery. I also added a 4/0 cable from the passengers side to the DS battery. I bought a pre-made ground cable and went from the alternator mounting bracket to the frame. I can get you lengths if you need them.
Trucks in signature
I left the stock wiring in play and added a 4/0 cable from the alternator back to the firewall, along to the passengers side fender well, then a fuse, then to the passengers battery. I also added a 4/0 cable from the passengers side to the DS battery. I bought a pre-made ground cable and went from the alternator mounting bracket to the frame. I can get you lengths if you need them.
Trucks in signature
I can figure out those lengths easy enough. I would be interested in the length of your ground cable, and where you attached it to on the frame, and what fuse setup you went with.
thanks,
Herb
Postmaster
Joined: Nov 2015
Posts: 4,807
Likes: 125
From: Colorado Springs
Thanks John. I guess I should have considered leaving the stock cable in place and attached, and then just supplementing it. One of those, why-didn't-I-think-about-it moments.
I can figure out those lengths easy enough. I would be interested in the length of your ground cable, and where you attached it to on the frame, and what fuse setup you went with.
thanks,
Herb
I can figure out those lengths easy enough. I would be interested in the length of your ground cable, and where you attached it to on the frame, and what fuse setup you went with.
thanks,
Herb
