Help! 3oT set up

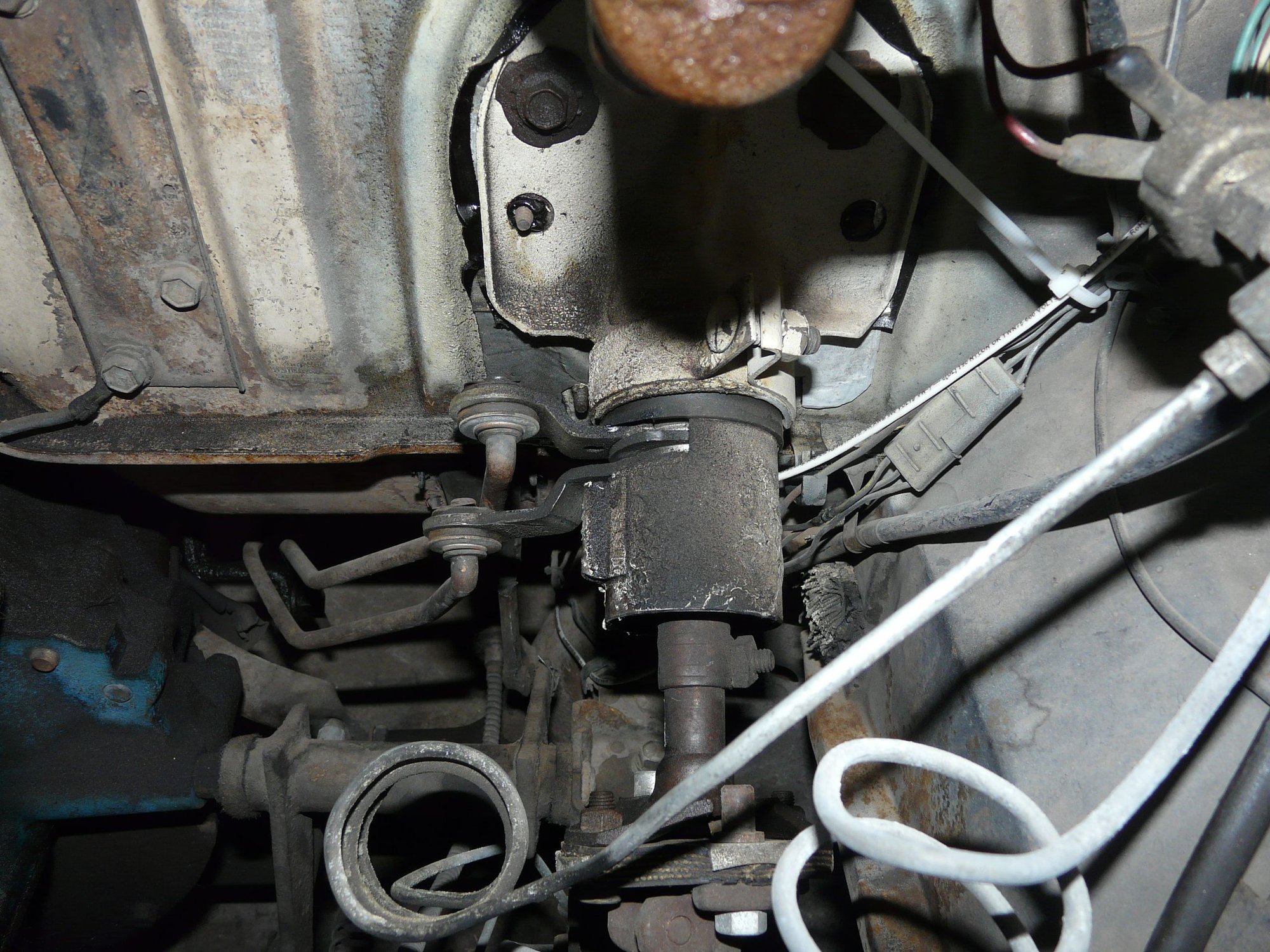

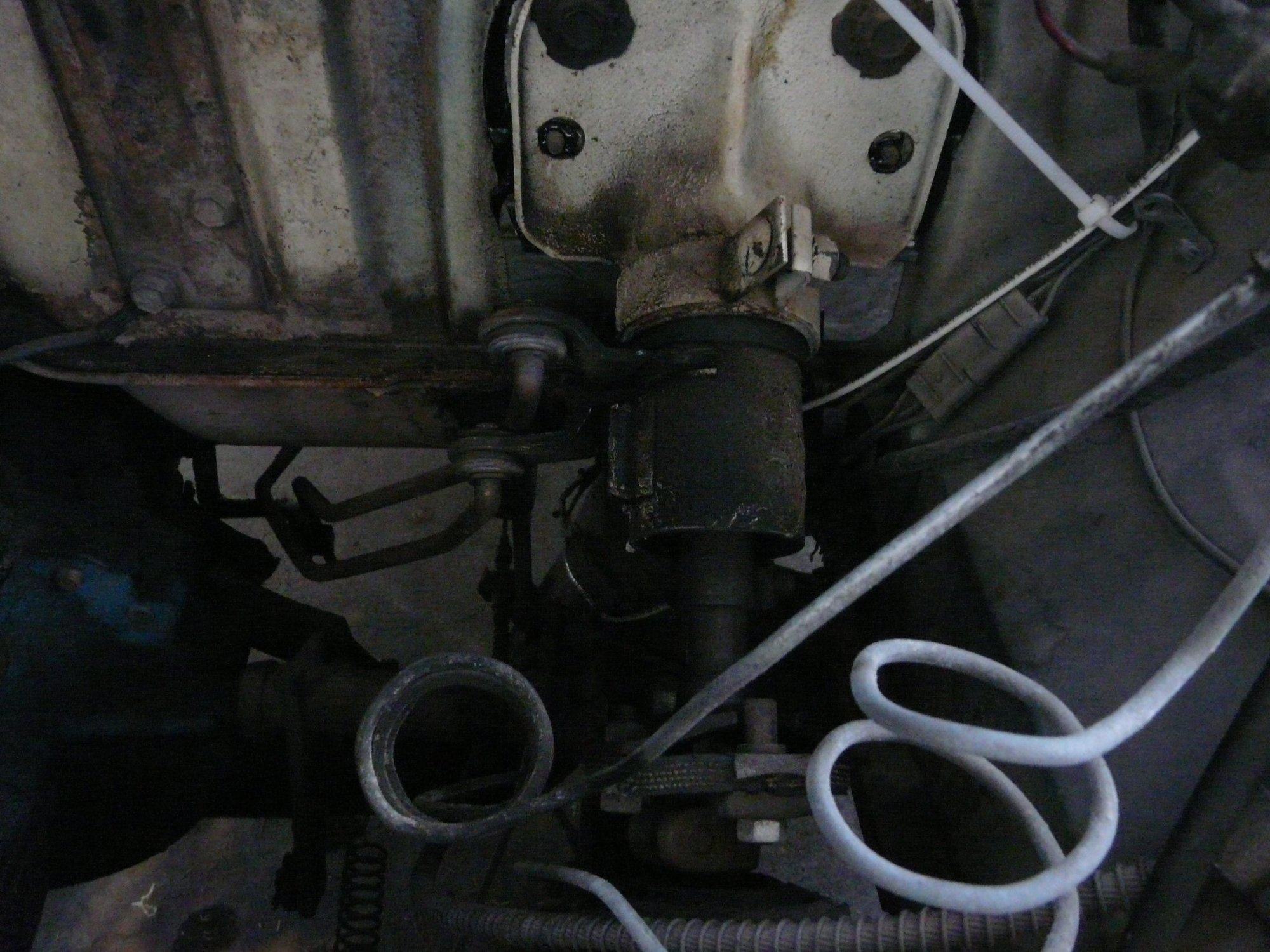

That’s how it’s currenrly set up. And the shift linkages are parallel top one (longer) to the rear of tranny and bottom (shorter) to the front.
Hey Guys, so I took a apart the steering column to replace those plastic washers/insulators for the shift arms. I rebuilt it back to what it was before I took it apart. But the lower arm rubs on the upper linkage. Bushings aren’t the problem.
Could any take pictures of how it is set up on your Trucks? I found one diagram but it has conflicting pictures for the same year and tranny set up.
Pictures of how the arms are oriented on the column, the orientation and path of the shift links too. That would be greatly appreciated
Thread Starter
|
Junior User
Joined: Oct 2018
Posts: 55
Likes: 0
Appreciate it!
Senior User
Joined: Feb 2017
Posts: 111
Likes: 1
your longer arm appears to be fairly thick closer to the column, especially if you compare to other pictures posted
It also looks like the spacer in between is sitting in a groove? May be the angle of your photo
if you look at other photos the arms appear flat with no groove
Sure you got the spacers in right order?
Here is a picture of what it should look like
http://www.fordification.com/tech/images/3spd_04.jpg
It also looks like the spacer in between is sitting in a groove? May be the angle of your photo
if you look at other photos the arms appear flat with no groove
Sure you got the spacers in right order?
Here is a picture of what it should look like
http://www.fordification.com/tech/images/3spd_04.jpg
Thread Starter
|
Junior User
Joined: Oct 2018
Posts: 55
Likes: 0
Trending Topics
Senior User
Joined: Feb 2017
Posts: 111
Likes: 1
verify you have the down rods in the right place.
in your picture they look like they cross?
They should be side by side as in other posted pics
the lever closest to firewall essentially goes straight down to trans lever closest to engine
the bottom rod runs parallel to top rod, down towards trans then crosses over top rod. Mine crosses close to the trans. .
if you look at your pic it looks like it crosses under, which it probably causing your bind and not engaging the trans
Johns 1st pic is what I am talking about. Very different from how your pic shows
in your picture they look like they cross?
They should be side by side as in other posted pics
the lever closest to firewall essentially goes straight down to trans lever closest to engine
the bottom rod runs parallel to top rod, down towards trans then crosses over top rod. Mine crosses close to the trans. .
if you look at your pic it looks like it crosses under, which it probably causing your bind and not engaging the trans
Johns 1st pic is what I am talking about. Very different from how your pic shows
