Wire issues

I'm re pinning an mlp for a 93 f250 E4OD tranny and i can't find a diagram anywhere that shows which wire goes where. Its a six pin connector. Any help would be great

Aug 29, 2018 | 10:38 PM

85e150

Super Moderator

Joined: Apr 2004

Posts: 34,466

Likes: 2,798

https://www.ford-trucks.com/forums/1...l#post18166995

Contest, which forum answers first.

Good luck with your project.

Aug 30, 2018 | 07:09 AM

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,666

Likes: 301

From: Easton,Ks

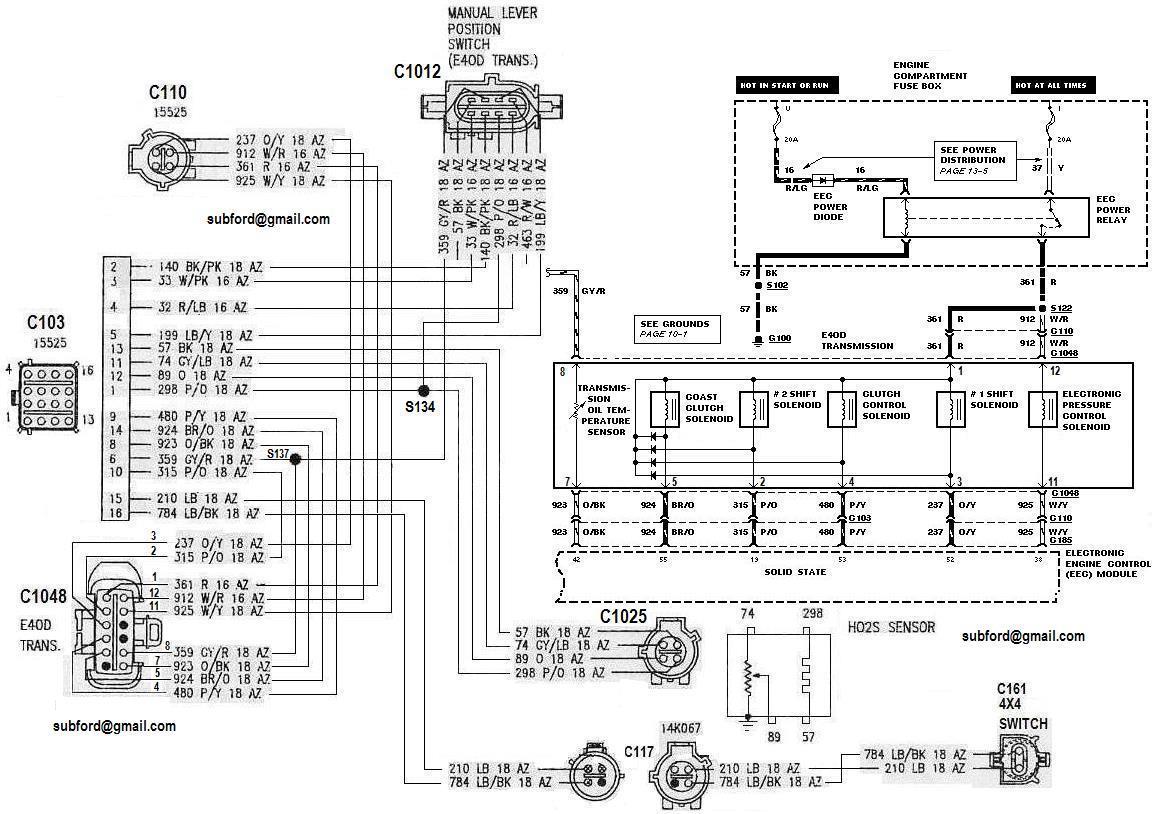

Does this help?
Attachment 277397

/

Aug 30, 2018 | 12:48 PM

Msword

Thread Starter

New User

Joined: Aug 2018

Posts: 5

Likes: 0

That's it. But I'm using the newer connector. Are the 4 wires closer to the tranny or are the 2 wires?

Aug 30, 2018 | 03:04 PM

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,666

Likes: 301

From: Easton,Ks

The plugs:
Attachment 283234

/

Aug 30, 2018 | 03:21 PM

Msword

Thread Starter

New User

Joined: Aug 2018

Posts: 5

Likes: 0

Thanks guys. I got it working. Now i need to figure out why my reverse lights aren't working. Bk/P wire grounding out somewhere i think. Every time i put it in reverse it blows the fuse. New tranny and mlp. not sure what's going on. Going to have to take it in to have the codes read. It's running hot. Stays around 210 on flat road at highway speed and gets hot quick. Five miles and its already hot. Has an external cooler. Engine runs cool, never goes above half way on the temp gauge. Gonna replace coolant sensor since i know that can cause issues
