Wire issues

I'm re pinning an mlp for a 93 f250 E4OD tranny and i can't find a diagram anywhere that shows which wire goes where. Its a six pin connector. Any help would be great

Reply
Old Aug 29, 2018 | 10:38 PM
  #2
85e150's Avatar
85e150
Super Moderator
20 Year Member
Community Builder
Liked
Community Favorite
Joined: Apr 2004
Posts: 34,494
Likes: 2,809
Club FTE Gold Member
https://www.ford-trucks.com/forums/1...l#post18166995

Contest, which forum answers first.

Good luck with your project.

Reply
Old Aug 30, 2018 | 07:09 AM
  #3
subford's Avatar
subford
Fleet Owner
20 Year Member
Photogenic
Photoriffic
Top Answer: 1
Joined: Aug 2005
Posts: 23,667
Likes: 301
From: Easton,Ks

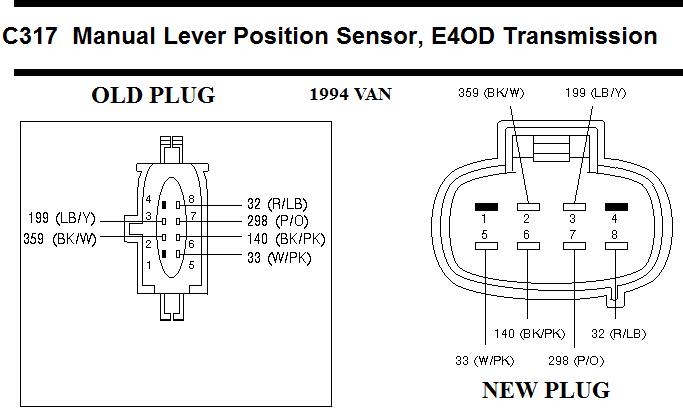

Does this help?
Attachment 277397

/

Reply
Old Aug 30, 2018 | 12:48 PM
  #4
Msword's Avatar
Msword
Thread Starter
|
New User
Joined: Aug 2018
Posts: 5
Likes: 0
That's it. But I'm using the newer connector. Are the 4 wires closer to the tranny or are the 2 wires?

Reply
Old Aug 30, 2018 | 03:04 PM
  #5
subford's Avatar
subford
Fleet Owner
20 Year Member
Photogenic
Photoriffic
Top Answer: 1
Joined: Aug 2005
Posts: 23,667
Likes: 301
From: Easton,Ks
The plugs:
Attachment 283234

/

Reply
Old Aug 30, 2018 | 03:21 PM
  #6
Msword's Avatar
Msword
Thread Starter
|
New User
Joined: Aug 2018
Posts: 5
Likes: 0
Thanks guys. I got it working. Now i need to figure out why my reverse lights aren't working. Bk/P wire grounding out somewhere i think. Every time i put it in reverse it blows the fuse. New tranny and mlp. not sure what's going on. Going to have to take it in to have the codes read. It's running hot. Stays around 210 on flat road at highway speed and gets hot quick. Five miles and its already hot. Has an external cooler. Engine runs cool, never goes above half way on the temp gauge. Gonna replace coolant sensor since i know that can cause issues
