ICM placement
Reading about ICM sez to coat back side in dielectric grease, so presumably heat sink isn’t grounded to fender well…
I’m looking to have mine in-cab behind dash in my ‘52. Any reason I can’t mount to firewall (which has insulation fabric)?
Thanks
I’m looking to have mine in-cab behind dash in my ‘52. Any reason I can’t mount to firewall (which has insulation fabric)?
Thanks
FTE Legend
Joined: Jun 2006
Posts: 31,930
Likes: 1,499
From: Ottawa, Ontario
Do not use dielectric grease.. it's an insulator and defeats the whole purpose of putting the module in a heatsink, use thermal paste Yes.. I know dielectric grease is what many of the parts houses say to use and often what they provide, this is just another example of how they got it all wrong.. like when they say a Black TFI replaces a Grey module.
Thread Starter
|
Laughing Gas
Joined: May 2015
Posts: 826
Likes: 21
From: Golden, CO
Ahh, yes, thank you… didn't catch that distinction before, as when I pulled this one from a junkyard it looked like there was 'something' (maybe?) on the backside of the sink where it attached to the fender well.
Trending Topics
Thread Starter
|
Laughing Gas
Joined: May 2015
Posts: 826
Likes: 21
From: Golden, CO
I'm assuming since I didn't remove the module from the sink I can just leave it "as is"?
I'm using the AllDataDIY site, which is where I saw the reference to dielectric grease:
"Use Silicone Dielectric Compound WA-10 D7AZ-19A331-A (ESE-M1C171-A) or equivalent."
I'm using the AllDataDIY site, which is where I saw the reference to dielectric grease:
"Use Silicone Dielectric Compound WA-10 D7AZ-19A331-A (ESE-M1C171-A) or equivalent."
Do not use dielectric grease.. it's an insulator and defeats the whole purpose of putting the module in a heatsink, use thermal paste Yes.. I know dielectric grease is what many of the parts houses say to use and often what they provide, this is just another example of how they got it all wrong.. like when they say a Black TFI replaces a Grey module.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Fleet Owner
Joined: Aug 2005
Posts: 23,667
Likes: 301
From: Easton,Ks

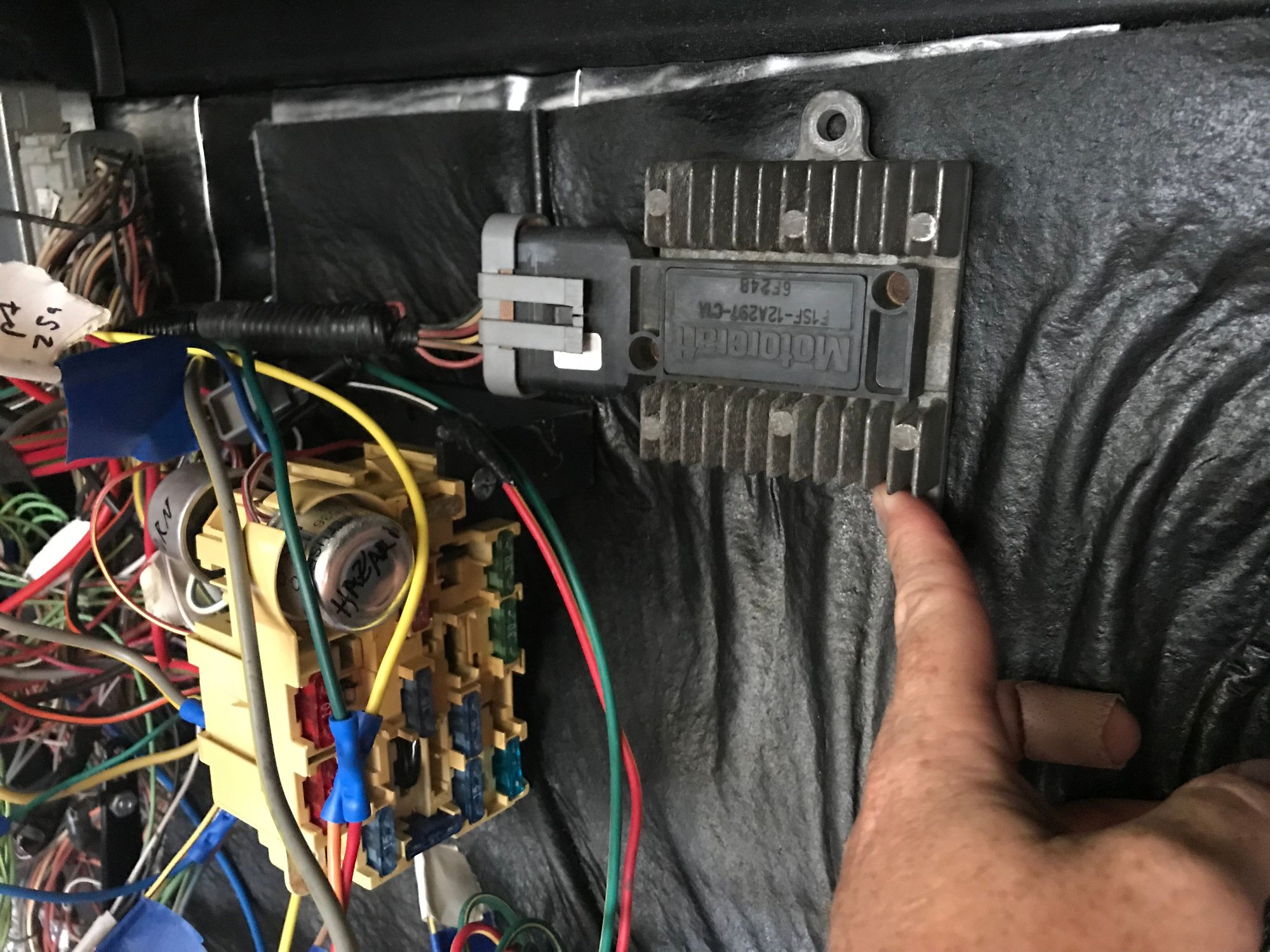

I do not see any sign of the White thermal paste in your photo.
