Various connectors with nothing connected.
What are these for? All are by the rear of the truck. All within about a foot or so of the tailgate.

The two that are by one another are on the driver side. The one that has the most wires going to it is also on the driver side. The last one is about in the middle.

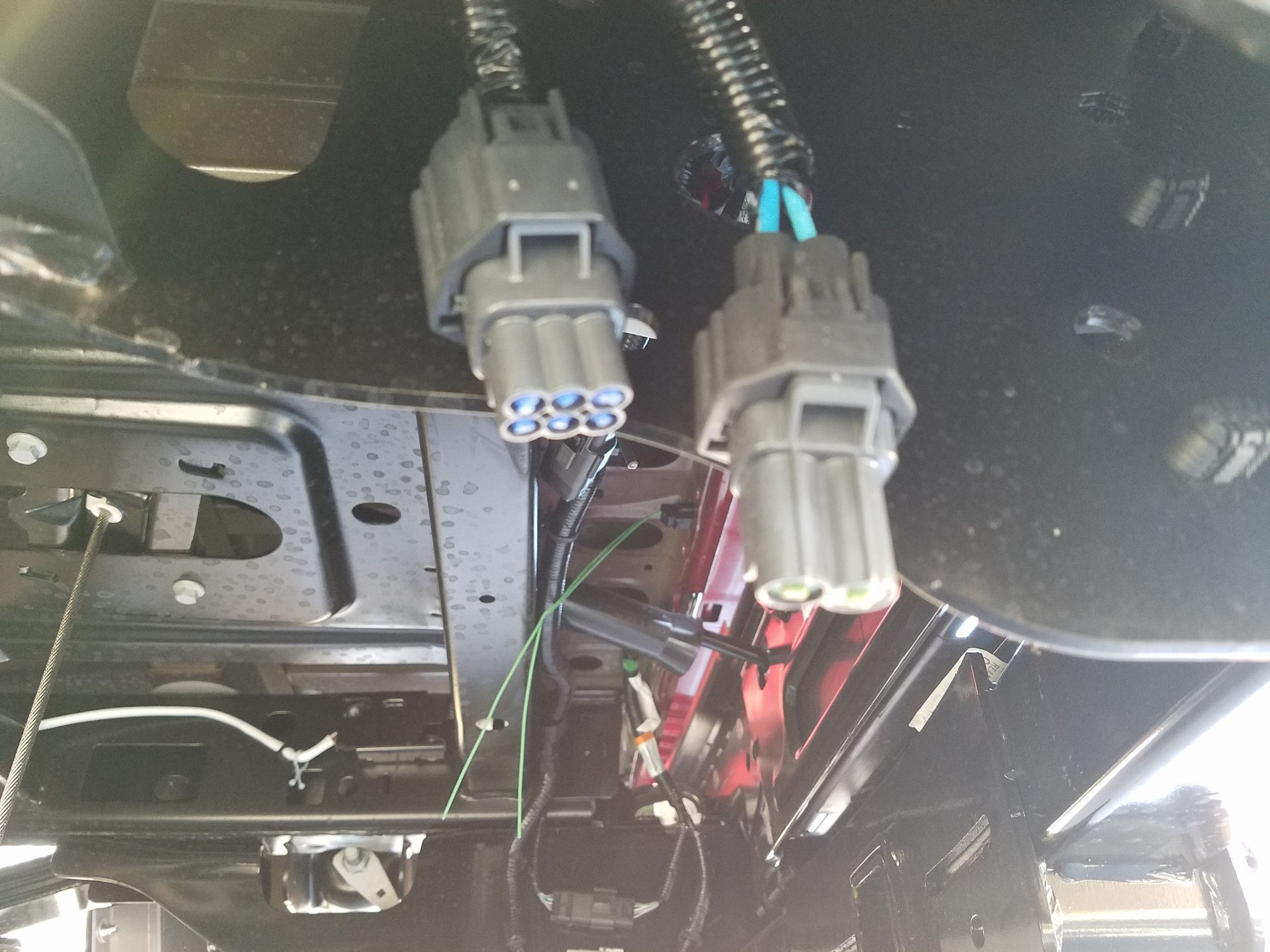

Drivers side rear.







Drivers side tucked up high.







Rear middle. By seven way connector.

Reply Like
  #2
Old 03-18-2018, 05:16 PM
RONMCHUGH's Avatar
RONMCHUGH
RONMCHUGH is offline
Romcjr

Join Date: Jul 2008
Location: Waller,TX.
Posts: 779
Received 34 Likes on 16 Posts
Could they be Blis connectors ?

Reply Like
  #3
Old 03-18-2018, 05:18 PM
RONMCHUGH's Avatar
RONMCHUGH
RONMCHUGH is offline
Romcjr

Join Date: Jul 2008
Location: Waller,TX.
Posts: 779
Received 34 Likes on 16 Posts
Duplicate post .

Reply Like
  #4
Old 03-18-2018, 05:19 PM
InkMing's Avatar
InkMing
InkMing is offline
Senior User
Thread Starter
Join Date: Nov 2017
Location: NoVa (Northern Virginia)
Posts: 193
Likes: 0
Received 0 Likes on 0 Posts
I have BLIS. So ruling that out.

Where is the fifth wheel connector?

Reply Like
  #5
Old 03-18-2018, 06:01 PM
FaC's Avatar
FaC
FaC is offline
5th Wheeling
Join Date: May 2006
Posts: 44
Received 4 Likes on 3 Posts
The first picture is the connectors for the Ford in-bed 7 wire connector. No idea on the other two

Reply Like
  #6
Old 03-18-2018, 07:57 PM
srkr's Avatar
srkr
srkr is offline
Cargo Master
Join Date: Jul 2008
Posts: 2,535
Received 440 Likes on 192 Posts
Power running boards.

Reply Like
  #7
Old 03-18-2018, 08:31 PM
Paulgl32's Avatar
Paulgl32
Paulgl32 is offline
Mountain Pass
Join Date: Nov 2017
Posts: 129
Received 1 Like on 1 Post
Tag for interest

Reply Like

Trending Topics

  #8
Old 03-18-2018, 08:36 PM
Bill_The_PA's Avatar
Bill_The_PA
Bill_The_PA is offline
Posting Guru
Join Date: Feb 2018
Location: Burton NB Canada
Posts: 1,361
Received 4 Likes on 2 Posts
There is a connection up by the Spare tire that is for the Trailer camera and trailer TPMS

Reply Like
  #9
Old 03-19-2018, 07:32 AM
InkMing's Avatar
InkMing
InkMing is offline
Senior User
Thread Starter
Join Date: Nov 2017
Location: NoVa (Northern Virginia)
Posts: 193
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by srkr
Power running boards.
Going to say no to that one. I have the power running boards.

Reply Like
  #10
Old 03-19-2018, 07:33 AM
InkMing's Avatar
InkMing
InkMing is offline
Senior User
Thread Starter
Join Date: Nov 2017
Location: NoVa (Northern Virginia)
Posts: 193
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Bill_The_PA
There is a connection up by the Spare tire that is for the Trailer camera and trailer TPMS
That might be it.

Reply Like
  #11
Old 03-19-2018, 09:16 AM
InkMing's Avatar
InkMing
InkMing is offline
Senior User
Thread Starter
Join Date: Nov 2017
Location: NoVa (Northern Virginia)
Posts: 193
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by InkMing

For those playing along at home, FaC nailed the two connectors that are on the driver side rear. The pair work together for the in bed 7-way plug.

Reply Like
  #12
Old 03-19-2018, 10:39 AM
Rustofer's Avatar
Rustofer
Rustofer is offline
Mountain Pass
Join Date: Feb 2017
Location: Vancouver Island
Posts: 200
Received 9 Likes on 8 Posts
So the sixty-four dollar question: Is the 2-wire connector (shown above) always hot, or is it controlled like the hot wire of the 7-way trailer plug?

Reply Like
  #13
Old 03-19-2018, 11:48 AM
Bill_The_PA's Avatar
Bill_The_PA
Bill_The_PA is offline
Posting Guru
Join Date: Feb 2018
Location: Burton NB Canada
Posts: 1,361
Received 4 Likes on 2 Posts
Originally Posted by Rustofer
So the sixty-four dollar question: Is the 2-wire connector (shown above) always hot, or is it controlled like the hot wire of the 7-way trailer plug?
only hot when your connected and the truck realizes this lol.

Reply Like
  #14
Old 03-19-2018, 11:53 AM
Bill_The_PA's Avatar
Bill_The_PA
Bill_The_PA is offline
Posting Guru
Join Date: Feb 2018
Location: Burton NB Canada
Posts: 1,361
Received 4 Likes on 2 Posts
Originally Posted by InkMing
For those playing along at home, FaC nailed the two connectors that are on the driver side rear. The pair work together for the in bed 7-way plug.
what a lot of folks are doing who purchased the trailer camera/TPMS pkg are buying a different plate and mounting it all in the bed instead of on the bumper. For the life of me I can’t remember who sells that cover plate.

EDIT it’s Nicholas manufacturing.
