In my previous post about shimmy on my F4, I decided, because of the excellent feedback I received, that I would add shocks to the front. To add shocks I need to remove the springs and add a shock bracket is place of the bottom leaf of the spring. When I pulled out the spring the center bolt was broken just under the nut, so the spring fell apart. When I put the spring back together I used a 7/16" center bolt instead of a 3/8" like the original. I had to lightly ream the center holes for the 7/16" bolt. I found quite a lot of rust between the leaves. I cleaned them with my needle scaler and a wire wheel on my pedestal grinder. I also beveled all the sharp edges on the ends of the leaves where they rub the leaf above them. I will paint it before I install it back in the truck. Then I will remove the other one and repeat. I still have to machine the lower shock studs and drill the frame for the upper mounts. I will do that after I get the other spring done.
The new system here is going to take a little getting used to, pictures load totally different.
Thanks, Mark
The new system here is going to take a little getting used to, pictures load totally different.
Thanks, Mark
#2
Saturday, I pulled the passenger side front spring and cleaned it like I did the drivers spring side a couple of weeks ago. I had to replace several leaves in this spring as it was rust pitted a lot worse than the other one. I checked the "feel" of the drivers side spring, when I reinstalled it, against the rusty passenger side spring. I was amazed at how smooth and easy the cleaned spring moved. The truck has to ride a lot better when done. Today I painted the spring, u-bolts, and upper and lower shock mounts.

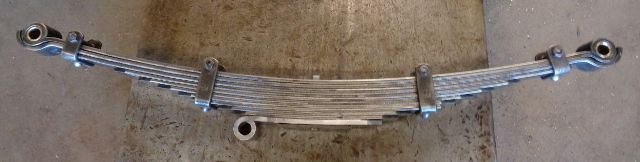

The cleaned and painted spring ready to reinstall.
These are the lower shock mounting studs I machined.

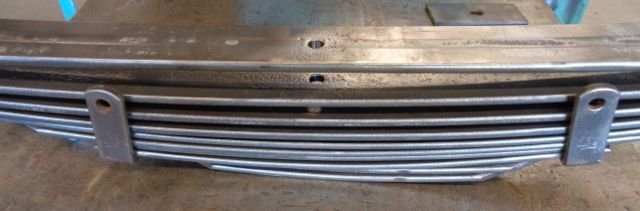

These are the upper shock mounts, painted and ready to install.
Thanks, Mark
The cleaned and painted spring ready to reinstall.
These are the lower shock mounting studs I machined.
These are the upper shock mounts, painted and ready to install.
Thanks, Mark
#4
Howard, The upper shock mounts are from a '56-'66 F100-F350. Some applications used the same upper mount for both front and rear. The lower spring leaf with the shock mount eye is from a '71 F600 U-Haul truck that I parted out. I narrowed them to match my springs and used them in place of the bottom leaf. Ray, raytasch, gave me the idea of the shock mounts in another thread that I had posted on front end shimmy. He posted several photos to show what he had used for shocks and mounts on his '49 F4. He used the upper mount, shock and lower mount from a '56 F350. I already had the lower mounts, so I went with those, but used the same upper mounts that Ray used. I did make new bushings for the springs.
Thank you, Mark
Thank you, Mark
#5
I finished installing the passenger side front spring a few minutes ago. I drove the truck part way down my driveway to see how it rides. My drive is pretty rough and the truck rode much, much better and all the front end squeeks are gone. I don't have the shocks on yet, maybe this Saturday.
