Flareside diamond plate protector progress

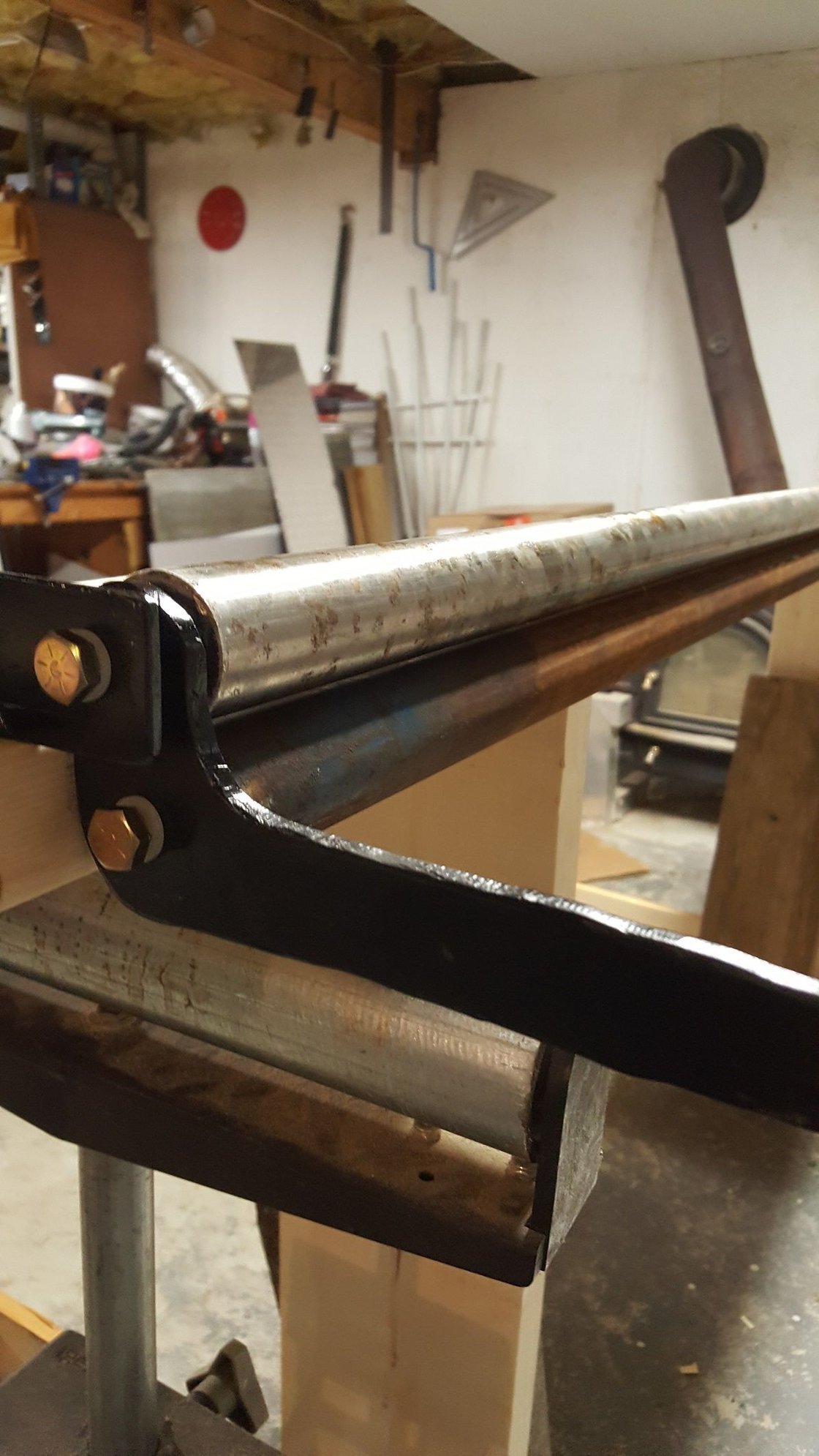

Put together a 2-roll former.
Seems to actually work!




IT is 70" long in order to make the tailgate and bed rail protectors.....


And it Fits!

Reply
Old Nov 25, 2017 | 08:24 AM
  #2
FuzzFace2's Avatar
FuzzFace2
FTE Legend
10 Year Member
Photogenic
Community Builder
Liked
Joined: Nov 2015
Posts: 30,912
Likes: 4,123
From: Angier, NC
Club FTE Gold Member
Nice.
Where did you find the rollers and are they solid?
Dave ----

Reply
Old Nov 25, 2017 | 09:17 AM
  #3
reamer's Avatar
reamer
Thread Starter
|
Logistics Pro
20 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Jan 2001
Posts: 3,789
Likes: 26
From: Connecticut
Solid 1.5" dia.
Local steel place...$1 a pound and 35% off on "Black Friday" yesterday

Reply
Old Nov 25, 2017 | 02:59 PM
  #4
reamer's Avatar
reamer
Thread Starter
|
Logistics Pro
20 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Jan 2001
Posts: 3,789
Likes: 26
From: Connecticut
First Test bend with Diamond plate, I call it a fail, but great data was gathered.

*Both internal and external bars deflect way too much......

* internal bar does not roll during pressing, Sooooo Ill weld angle Iron to it to keep it from deflecting.

* External bar rolls so I can go with a much larger Dia to lower the deflection.....but how to get a larger dia circle to rotate in the smaller one's diameter???


Reply
Old Nov 25, 2017 | 05:17 PM
  #5
Oz Econoline's Avatar
Oz Econoline
Senior User
Joined: Sep 2014
Posts: 353
Likes: 0
For a fail it still looks pretty good

Reply
Old Nov 25, 2017 | 07:16 PM
  #6
FuzzFace2's Avatar
FuzzFace2
FTE Legend
10 Year Member
Photogenic
Community Builder
Liked
Joined: Nov 2015
Posts: 30,912
Likes: 4,123
From: Angier, NC
Club FTE Gold Member
Originally Posted by Oz Econoline
For a fail it still looks pretty good
I was thinking the same thing.....good looking fail.


I have the same issue with flex on my home made brake and it has 4" "L".
For me it was good enough so I live with it.

Dave ----

Reply
