Another horn question
Thread Starter
|
Elder User
Joined: Feb 2005
Posts: 509
Likes: 2
From: Lebanon OR
Another horn question
Looking for info on how the horn is wired in my 65 F100 4x4. I don't have a horn in the truck but there is a relay. I have the push button off the steering wheel and can see the top of the contact brush with it's insulator. What I'm wondering about is where I should start with the test tight. What should have power when grounded? How is the relay wired?
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
Looking for info on how the horn is wired in my 65 F100 4x4. I don't have a horn in the truck but there is a relay.
I have the push button off the steering wheel and can see the top of the contact brush with its insulator.
What I'm wondering about is where I should start with the test tight. What should have power when grounded? How is the relay wired?
I have the push button off the steering wheel and can see the top of the contact brush with its insulator.
What I'm wondering about is where I should start with the test tight. What should have power when grounded? How is the relay wired?

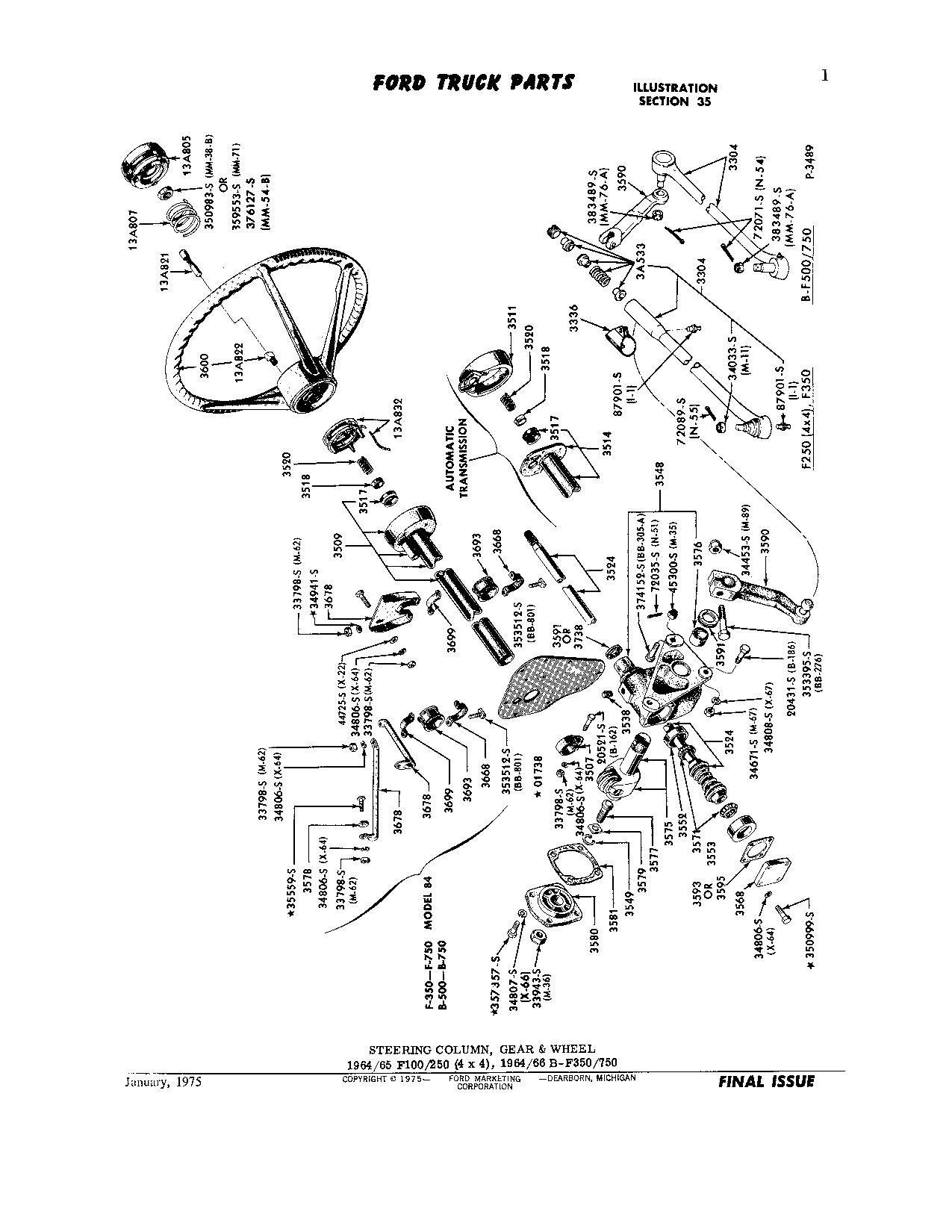

The horn brush contains a tiny copper wire, when it snaps, the horn no longer blows. If the insulator is missing, the horn brush will not work.
The horn is wired thru the T/S switch.
The horn relay is located next to the starter solenoid on the fender apron. 1961/65 F100/250 4WD & 1966 F250 4WD use a different relay than 1965/66 F100/250 2WD & 1966 F100 4WD
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
It depends on if the copper wire is intact, the insulator is in place and the T/S switch.
Thread Starter
|
Elder User
Joined: Feb 2005
Posts: 509
Likes: 2
From: Lebanon OR
I didn’t know the relays were different. I’d like to replace mine and was going to order one from DC or Mac. I figure I should replace it when I install the horn but I’m guessing the previous owner removed the horn when it wasn’t working for some reason.
Thread Starter
|
Elder User
Joined: Feb 2005
Posts: 509
Likes: 2
From: Lebanon OR
OK well currently I can't get any action with the test light on the end of that brush. Should I have the ignition on for that to work? Wouldn't think so...
Lead Driver
Joined: Jul 2011
Posts: 6,599
Likes: 34
From: Rockingham, VA
You should have battery voltage to the one contact on the horn relay (yellow wire). That comes off the starter relay and is hot all the time. The steering wheel button provides the ground for that circuit to energize the relay (blue w/ yellow stripe). The wire going to the horn(s) is yellow w/ green stripe.
Trending Topics
Mountain Pass
Joined: Jul 2017
Posts: 169
Likes: 5
From: Ahwatukee
What Jolly Joe said. Ignore the ignition switch and check for 12 volts at the relay yellow wire. If you have it, then ground the blue/yellow wire directly from the relay with a jumper wire and the horn should blow. If it does blow, then you can troubleshoot the blue/yellow wire, its connectors, and the horn button. If it does NOT blow, then you have a bad relay or problem with the yellow/green wire which goes directly to the horns.
Good luck!
Bob
Good luck!
Bob
