2017 SD Upfitter Connections
New User
Joined: Mar 2018
Posts: 10
Likes: 0
help...
So I so I guess I'm asking if I can identify my motor to my vehicle VIN number. I received my truck back in pieces from an auto mechanic in town and I'm trying to figure out if he gave me my block back the block that was matched up with my truck from the factory?
More Turbo
Joined: Apr 2017
Posts: 628
Likes: 12
From: Madison WI
Thanks for all the info in this thread. I just contacted my dealer about possibly getting them to install upfitters in my 2017 F350 Lariat 6.2L DRW. He said he didn't think it'd be a problem - asked me to confirm if it had the moonroof, electronic dimming rear view mirror, power rear glass, and then asked me to email him my VIN. He quoted me ~$240 for just the overhead console and told me he'd email me back all the rest of what I'd need. Will let you guys know how it goes.
My truck came w/o the Ultimate package but with lots of the goodies added in separately. 2 things I really wish it had - upfitters and the heated steering wheel. Not even going to try and see what it'd cost to get a heated steering wheel added after the fact!
My truck came w/o the Ultimate package but with lots of the goodies added in separately. 2 things I really wish it had - upfitters and the heated steering wheel. Not even going to try and see what it'd cost to get a heated steering wheel added after the fact!

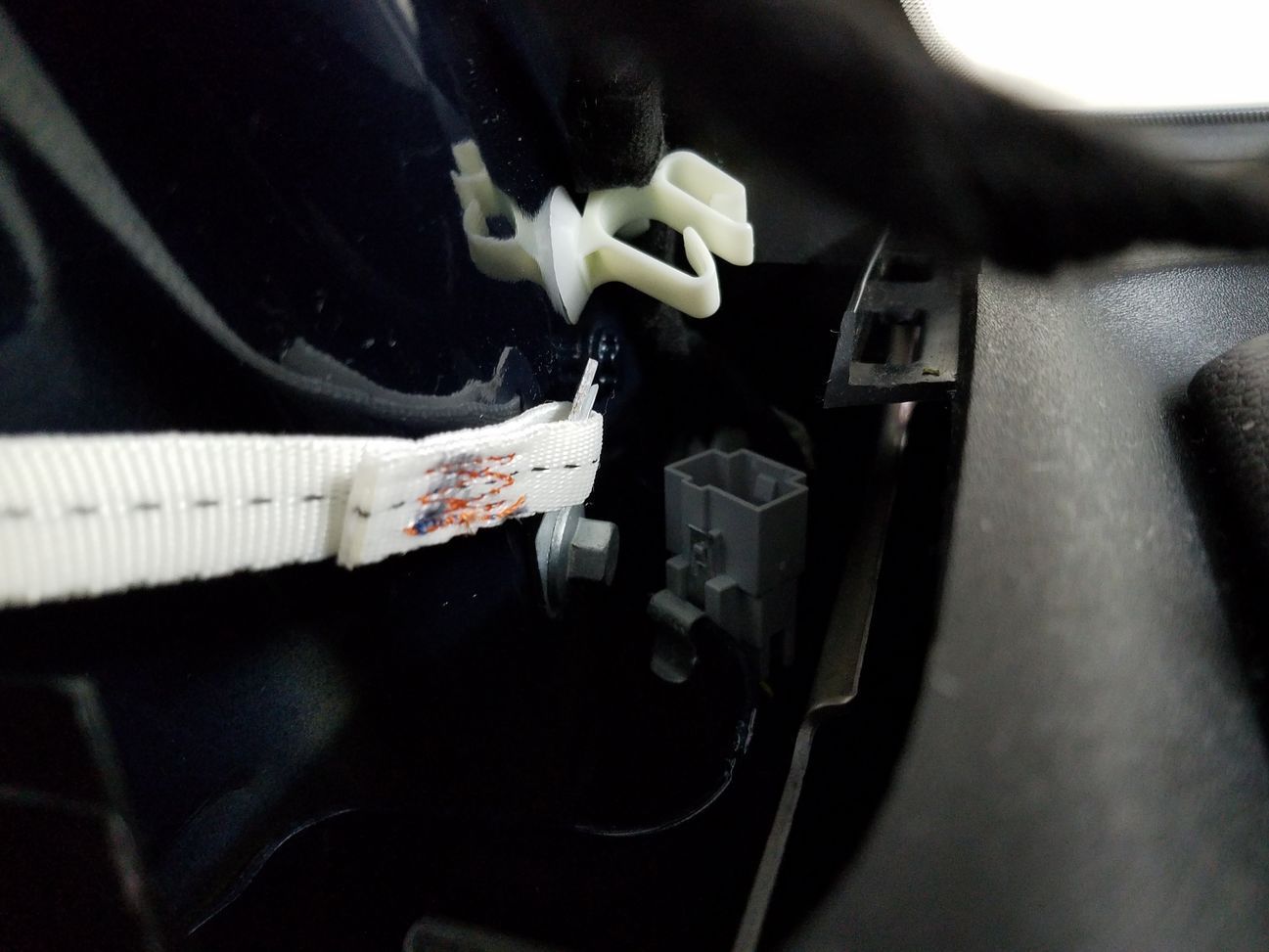

You must have this connector in your left a-pillar. A 10mm socket to remove two bolts from the grab handle, and you're in.
The link is at the top of the forum under "Tech Info - Read First", or better yet, click here: https://www.ford-trucks.com/forums/1...-switches.html
Posting Guru
Joined: Mar 2018
Posts: 1,962
Likes: 11
From: Fairbanks, AK
If you have time and ability, install the Upfitters yourself. Parts cost me less than $380. I have only the power rear window. More options, more costly for the console.
The link is at the top of the forum under "Tech Info - Read First", or better yet, click here: https://www.ford-trucks.com/forums/1...-switches.html
The link is at the top of the forum under "Tech Info - Read First", or better yet, click here: https://www.ford-trucks.com/forums/1...-switches.html
More Turbo
Joined: Apr 2017
Posts: 628
Likes: 12
From: Madison WI
Thank you for the pics and documenting your install process. I read that thread front to back and even forwarded it along to my dealer (they've a couple of really good gear heads over there too). I plan to take apart just enough of the A-pillar this weekend to see if I've the necessary connectors in place or not.
Posting Guru
Joined: Feb 2018
Posts: 1,555
Likes: 516
Since 1968, manufacturers have been required to stamp the block and transmission case with either a partial or full VIN. The stamping on the block and transmission will contain all or some of the VIN sequence. Find the VIN stamp on the block and see if it jives with your vehicle VIN. You will likely find a number of casting marks on the block and these are just references to the manufacturing process of the block (pour date and plant, engineering casting code and such). The VIN will be stamped. It should go without saying but if you find the VIN stamp and it bears no relationship to your vehicle VIN, then you do not have a matching block.
Posting Guru
Joined: Mar 2018
Posts: 1,962
Likes: 11
From: Fairbanks, AK
Good luck to you. With a XLT Ultimate, I'd be surprised if that connector isn't there. If they have problems sourcing parts with your VIN, find a truck with your current overhead console options (Moonroof, Power Rear Window, etc.), AND the correct interior color, and have them use THAT VIN to look for parts.
New User
Joined: Feb 2017
Posts: 6
Likes: 0
Wires inside Cab
Has anyone accessed the upfitter wires on a 2017+ from inside the cab?
I have switch #1 wired to backup lights, but I have a bad habit of leaving them turned on, thereby blinding the person behind me.
In my 2016 truck, I purchased a small programmable speaker and wired that in parallel with the backup light circuit. That way, when I had them on it would hear a subtle "ding... ding... ding..." alerting me that I'm using the lights.
That really helped!
I want to do that on the 2017, but not sure where to access the wires inside the cab.
I have switch #1 wired to backup lights, but I have a bad habit of leaving them turned on, thereby blinding the person behind me.
In my 2016 truck, I purchased a small programmable speaker and wired that in parallel with the backup light circuit. That way, when I had them on it would hear a subtle "ding... ding... ding..." alerting me that I'm using the lights.
That really helped!
I want to do that on the 2017, but not sure where to access the wires inside the cab.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Cross-Country
Joined: Jul 2019
Posts: 86
Likes: 1
From: https://t.me/pump_upp
Posting Guru
Joined: Mar 2018
Posts: 1,962
Likes: 11
From: Fairbanks, AK
Has anyone accessed the upfitter wires on a 2017+ from inside the cab?
I have switch #1 wired to backup lights, but I have a bad habit of leaving them turned on, thereby blinding the person behind me.
In my 2016 truck, I purchased a small programmable speaker and wired that in parallel with the backup light circuit. That way, when I had them on it would hear a subtle "ding... ding... ding..." alerting me that I'm using the lights.
That really helped!
I want to do that on the 2017, but not sure where to access the wires inside the cab.
I have switch #1 wired to backup lights, but I have a bad habit of leaving them turned on, thereby blinding the person behind me.
In my 2016 truck, I purchased a small programmable speaker and wired that in parallel with the backup light circuit. That way, when I had them on it would hear a subtle "ding... ding... ding..." alerting me that I'm using the lights.
That really helped!
I want to do that on the 2017, but not sure where to access the wires inside the cab.
Postmaster
Joined: Jan 2019
Posts: 3,422
Likes: 20
The passthru wires are located on the passenger side near the floor board. The upfitter switches are under the hood on the drivers side behind the fuse box. You would have to run a wire under the hood from the drivers side uppfiter wire to the passenger side passthru wire. Then you would have to locate the passthru wire on the passenger side near the floorboard and connect whatever you want to that wire. Pretty simple.
Senior User
Joined: Feb 2004
Posts: 428
Likes: 16
From: Northeast PA
The passthru wires are located on the passenger side near the floor board. The upfitter switches are under the hood on the drivers side behind the fuse box. You would have to run a wire under the hood from the drivers side uppfiter wire to the passenger side passthru wire. Then you would have to locate the passthru wire on the passenger side near the floorboard and connect whatever you want to that wire. Pretty simple.
Sadly it sounds less user friendly than I was hoping for adding interior accessories.
I was hoping there would be a pre-made load side inside the cab somewhere.
I just ordered a truck and I added upfitters on it.
So I think I am understanding your post correctly, for any powered add ons inside the cab they make you run a jumper wire from a load side (upfitter output) wire under the hood and across the truck to these pass through wires? it seems "kind" of hokey of them to do that.
They could have easily added the wire to have the load / output wires in both locations (inside cab and underhood) and then up to the user to designate which gets used for which.
Thanks for the explanation. Very helpful.
