Wiring Harness
I did a search on wiring 56 ford f-100 and did not come up with anything. I checked a couple of the build threads, but did not find anything there either. Is there a build thread/s that really gets into installing a new harness in early model F-100's?
Laughing Gas
Joined: May 2010
Posts: 1,125
Likes: 191
From: Wharton, PA
Are you looking at repairing what you have or doing a complete rewire? I recently rewired mine using a American Autowire kit. It came with complete instructions, which you can see here.
http://www.americanautowire.com/shop...-56-ford-truck
http://www.americanautowire.com/shop...-56-ford-truck
Thread Starter
|
Laughing Gas
Joined: Jul 2007
Posts: 1,100
Likes: 2
Complete rewire. Those American Auto wire kits look nice. Seems like they are about the same price as Ron Francis, no? I was hoping to seem some detailed photographs of how members actually ran the wires in different locations, along with some good recommendations for various kits guys have used. I have two of the all black wire kits with the small letters that I have to use on two of my truck, but am looking for a third harness for my third truck. Have three to do, none done yet and short one harness. I seem to keep buying parts but dont get them installed. Easier to buy the parts than to install them, lol.
Laughing Gas
Joined: May 2010
Posts: 1,125
Likes: 191
From: Wharton, PA
I have a few pics in my albums...and can post more if you want. I really like the ease of the kit I bought. Didn't have any issues at all.
Once you mount the fuse box everything just falls into place when you start running the wires.
Once you mount the fuse box everything just falls into place when you start running the wires.
Thread Starter
|
Laughing Gas
Joined: Jul 2007
Posts: 1,100
Likes: 2
Sounds good Indy. I will check out your build thread, but meanwhile would love to see more pictures of how you routed wires, what you used for mounting harness to firewall, frame, or hid wires. Exit firewall.......all of anything and everything you want to share. It would be nice if we got a good response from other members as well. One thread with just "wiring" and photos. I will add mine to it as I go too.
Fleet Owner
Joined: Dec 2000
Posts: 25,420
Likes: 5,428
From: Central PA
I replaced the wiring harness on my 54 with a stock looking harness I got from MidFifty. The only tip I can give you , since you are not staying stock, is this: if your old harness is still in place, only remove about a foot or two of the old and then put in the new. Keep working it like that as you work your way around the truck. The obvious place to go through the firewall is at the original place, in front of the driver seat. This worked for me and should also work for a new style harness.
Good luck. It is not as hard as some think if you go step by step.
Good luck. It is not as hard as some think if you go step by step.
Fleet Mechanic
Joined: Mar 2007
Posts: 1,532
Likes: 29
From: northeast Ga
I have used Rebel , Ron France , Detail Zone , and EZ wire , all are very good every thing is marked , just think and plan what you are doing , If you are using electric wipers , you have to remove the motor wire from the fire wall forward bunch to the under cab bunch , Wires are in bunches , front lights , horn , and electric fan , then you have engine management . then under dash and steering column , then you have rear lights and gas sending unit that will be changed if you have tank behind seat . Much easier than you think
Trending Topics
Thread Starter
|
Laughing Gas
Joined: Jul 2007
Posts: 1,100
Likes: 2
Thanks Abe. The original harness were broken, bent, and burnt wires so I removed and put in a five gallon bucket. Wish I would have thought about what you said before I did that. I will be starting from scratch in all three trucks. Thanks for the advise, do you have any pictures of what you did? In the stock harness you used, were the colors all just like the original?
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Thread Starter
|
Laughing Gas
Joined: Jul 2007
Posts: 1,100
Likes: 2
Thanks DR. Makes sense. I do have electric wipers so I will check the wiring I have before I go thru the wall with that cluster. I put my tank outside, so will make sure that one comes out of the cab cluster to exit under the cab.
Laughing Gas
Joined: May 2010
Posts: 1,125
Likes: 191
From: Wharton, PA

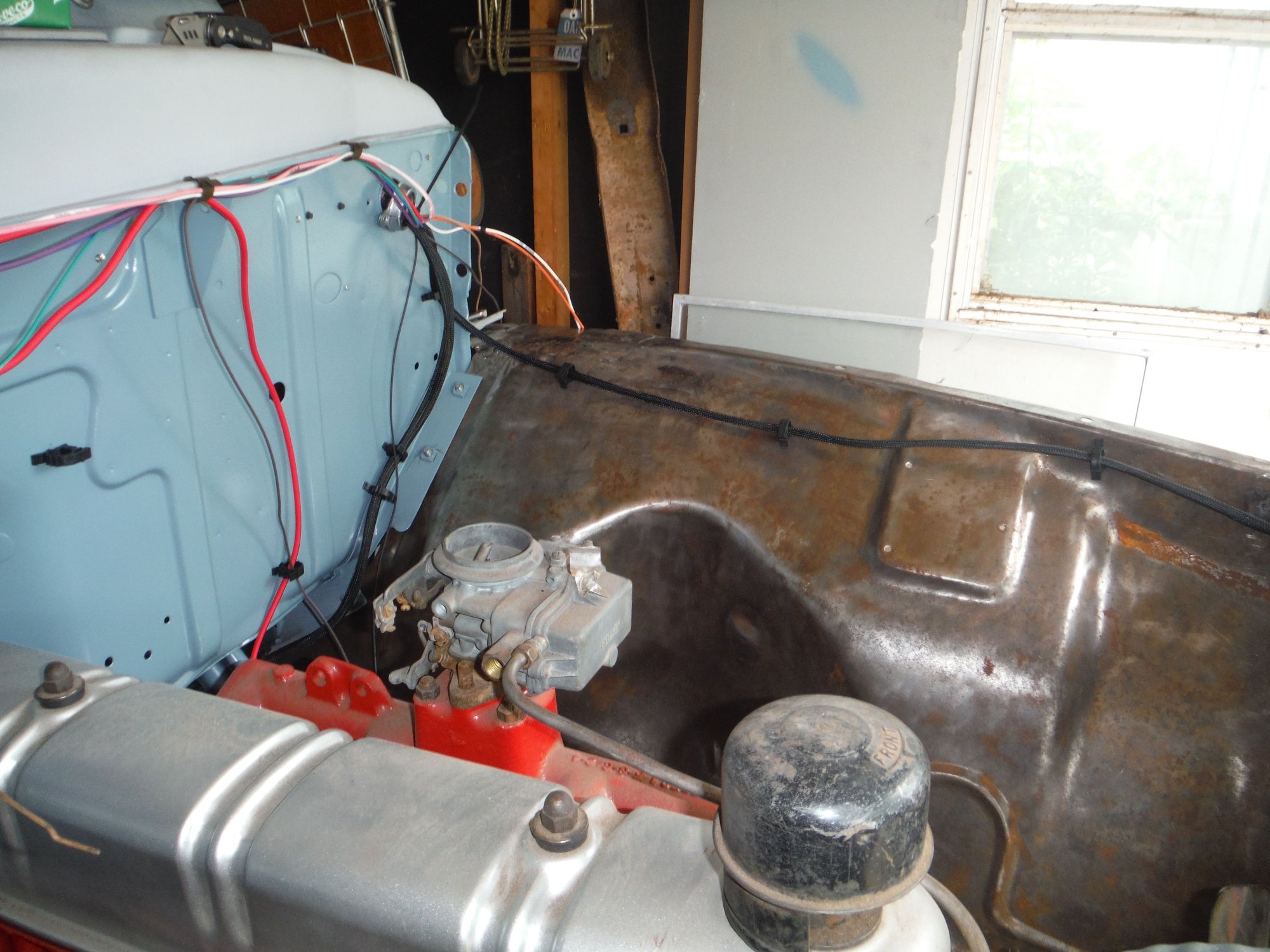

Here are 2 links to posts I made of my wiring. First is one of wiring kit and the other has a few pics of the install. I will post more tonight once I get home.
https://www.ford-trucks.com/forums/1364884-wiring-kit.html
https://www.ford-trucks.com/forums/1377948-starting-rewire.html
https://www.ford-trucks.com/forums/1364884-wiring-kit.html
https://www.ford-trucks.com/forums/1377948-starting-rewire.html
Fleet Owner
Joined: Dec 2000
Posts: 25,420
Likes: 5,428
From: Central PA
Thanks Abe. The original harness were broken, bent, and burnt wires so I removed and put in a five gallon bucket. Wish I would have thought about what you said before I did that. I will be starting from scratch in all three trucks. Thanks for the advise, do you have any pictures of what you did? In the stock harness you used, were the colors all just like the original?
