frame bracing
I just put a 302 and AOD in my '56. Either had to, or chose to remove the cross member for the 292 and manual transmission I removed. I now need to see some examples of cross members. Will probably make one from scratch. Think I will need something to support the transmission as well as prevent the frame from torqueing. Thanks for any pics and/or advise.
Hotshot
Joined: Oct 2009
Posts: 16,192
Likes: 4,805
From: Burbank, WA
As I'm sure you're aware, your new crossmembers should mimic the originals by connecting the top and bottom of the frame rails together to prevent the rails from twisting. Beyond that, it's simply a matter of building them in such a way that they don't interfere with the other workings of the truck, ie; exhaust routing, etc.
Senior User
Joined: Apr 2015
Posts: 459
Likes: 5
From: Buffalo NY
Im getting ready to make one myself. To add to the above I would make the mount by the cab wings with a drop out so the trans can be removed later without pulling the engine if you ever have an issue.
Thread Starter
|
Elder User
Joined: Jan 2014
Posts: 531
Likes: 8
From: Bakersfield, CA
Those are my thoughts also. At first glance it looks like the transmission mount is well back of the cab wings. Wondering if anyone found themselves needing a trans support as well as a cross member. My design skills are limited so I was hoping to just copy someone.
Senior User
Joined: Aug 2007
Posts: 164
Likes: 0
I kept the original cross member when we installed a SBF with an AOD. When we discovered that we couldn't take the trans out without pulling the motor we made a drop-out section in the original cross member. It was a PITA working under the truck but we were successful.
Thread Starter
|
Elder User
Joined: Jan 2014
Posts: 531
Likes: 8
From: Bakersfield, CA
I suppose in hindsight I wished I had done it that way. My memory is for S*IT these days but it seems like it was in the way when I was trying to remove the rivets it shared with the front suspension hangers. Additionally I recall reading some posts where others thought it was necessary to remove it. Anyways now I have to do something to stop the bleeding.
FTE Legend
Joined: Oct 2005
Posts: 283,924
Likes: 8,374
From: northwestern Ontario

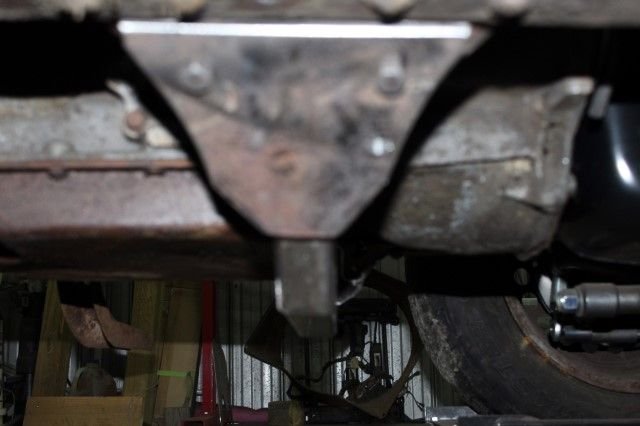

I made this and it bolts back from once it came but doesn't hang down as low as the original. I also made the trans cross member as well.
