5 pin connector under dash

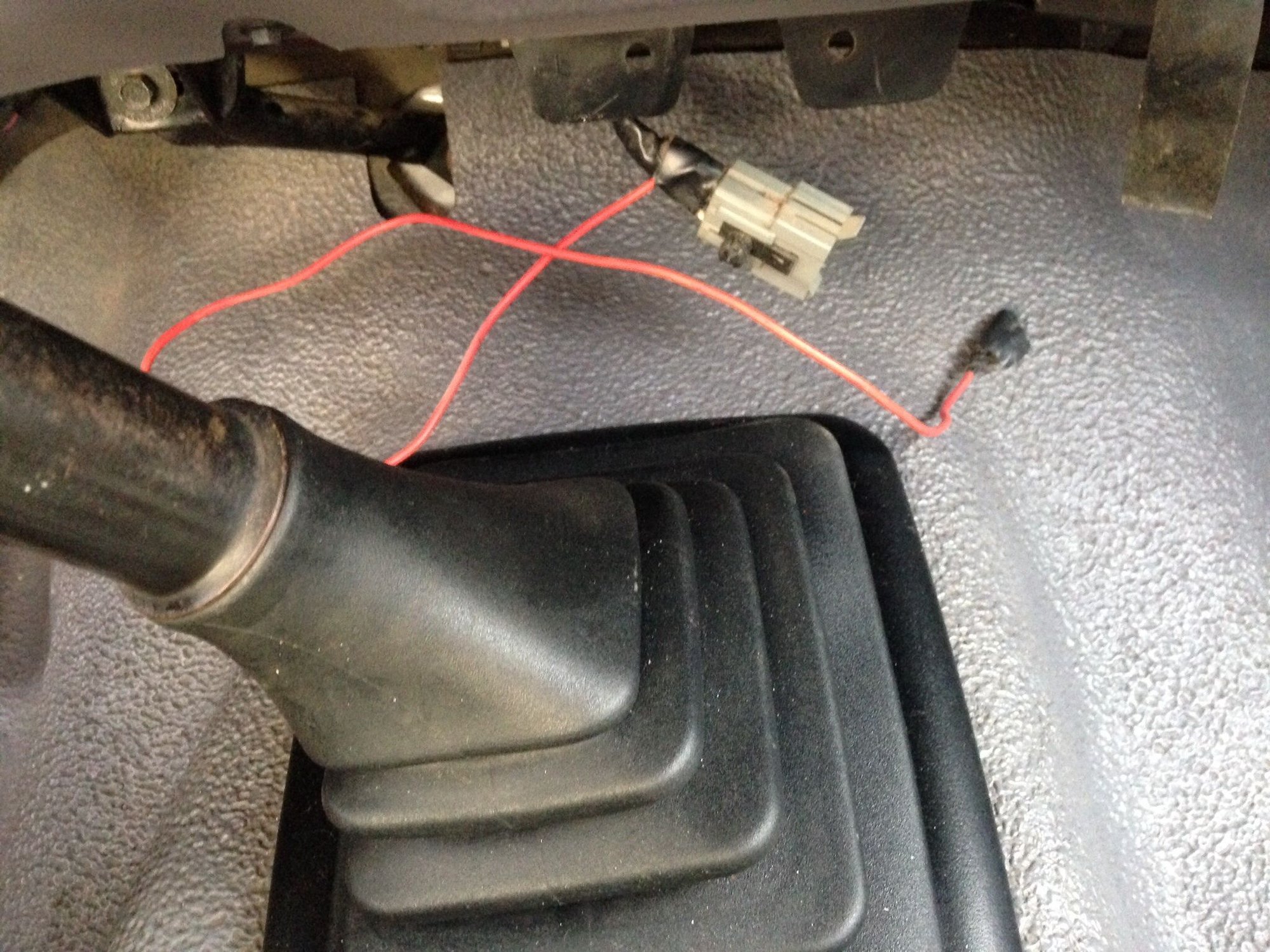

Can anyone tell me about this.... trailer brake controller?

Reply

Old

Mar 16, 2015 | 04:59 PM

#2

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Yes that is a trailer brake controller connector C210 that plugs into a pigtail that you buy at a trailer store.

The controller wiring:

The pigtail that plugs in to C210:

/

Reply

Old

Mar 16, 2015 | 09:37 PM

#3

tacticalmedic469

Junior User

Joined: Feb 2015

Posts: 65

Likes: 0

From: Texas

Hey subford, I have the brake control same wiring, but under the hood on the driver's side the red/white/blue are cut. I just bought this truck used and can't get running lights at the rear plug. Any thoughts? Sorry storchmj I didn't mean to hop your thread..

Reply

Old

Mar 17, 2015 | 07:00 AM

#4

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by tacticalmedic469

Hey subford, I have the brake control same wiring, but under the hood on the driver's side the red/white/blue are cut. I just bought this truck used and can't get running lights at the rear plug. Any thoughts? Sorry storchmj I didn't mean to hop your thread..

Sorry I do not have any wiring information for your 2004 F-series truck.
You need to post in a different Forum if you have not already done so.
