Rear Bumper Build/Prototype
As some might know, I have been tinkering around the idea of building a custom rear bumper with a pullout storage rack. I could not find a feasable way to make it because of the two crossmembers. So with the help of a few(too many) red bull vodkas, I redrew the whole rear bumper in consideration of making this a "prototype" for fellow members due to the lack of aftermarket rear bumpers.
Front bumper build:
https://www.ford-trucks.com/forums/1...per-ideas.html
This bumper was built to directly bolt onto a stock application, with a hitch receiver. I did not find it feasable to have a "built- in" hitch receiver with the proper dot class rated hitch receivers. Therefore this bumper to built to bolt onto a "stock" application.

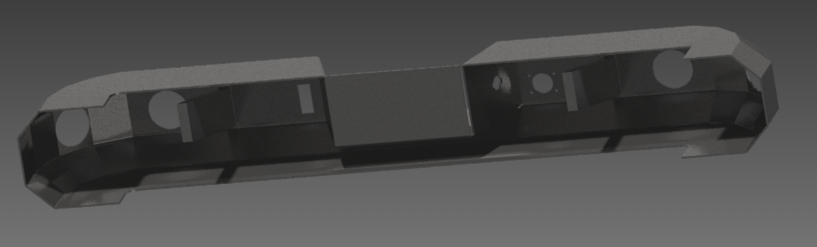

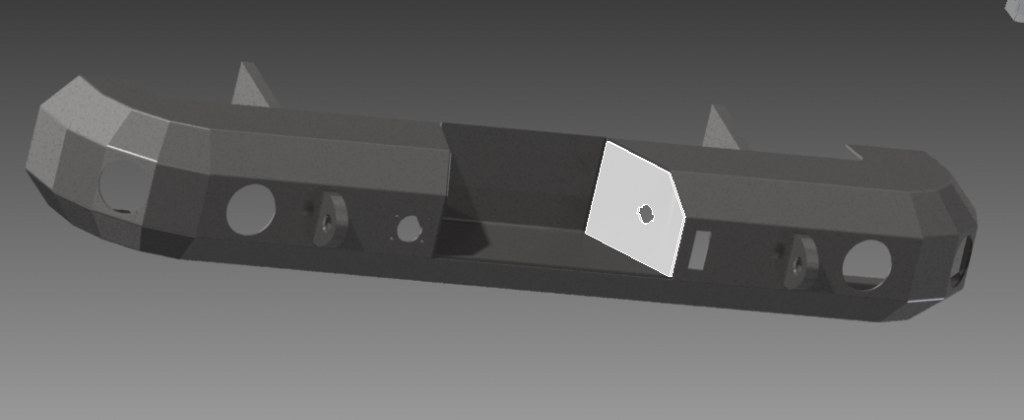

This bumper is drawn out for my truck. It has a hole for an aftermarket 7 pin connector on the left. the slot on the right is for a quick connect for my winch(see link)
I also tied in 4 backup lights. the two middle ones would be tied into the reverse lights, and the two corners ones would run off my f650 dash.
the two stock license plate illumiantion lights are incorporated into bumper
1" plate for 1" shackles. 1" plate would bolt directly to frame. So all pulling will be directly from frame.
suggestions, comments welcome
-JOSH
Front bumper build:
https://www.ford-trucks.com/forums/1...per-ideas.html
This bumper was built to directly bolt onto a stock application, with a hitch receiver. I did not find it feasable to have a "built- in" hitch receiver with the proper dot class rated hitch receivers. Therefore this bumper to built to bolt onto a "stock" application.
This bumper is drawn out for my truck. It has a hole for an aftermarket 7 pin connector on the left. the slot on the right is for a quick connect for my winch(see link)
I also tied in 4 backup lights. the two middle ones would be tied into the reverse lights, and the two corners ones would run off my f650 dash.
the two stock license plate illumiantion lights are incorporated into bumper
1" plate for 1" shackles. 1" plate would bolt directly to frame. So all pulling will be directly from frame.
suggestions, comments welcome
-JOSH
9 ECHO 1
Joined: Aug 2009
Posts: 12,467
Likes: 58
From: Missouri
Where are you located? I also have been trying to get a custom bumper. I like your design. Pretty much my ONLY requirement for my bumper is 1) Be beautiful, 2) Have a tire gate with a can holder, much like the one pictured below. The one below is the bumper I would like, but it was a one off prototype and the company hasnt returned my calls. Shame, because they are local to me. I would love to incorporate some back up lights like you have, and I love the angled idea on a switch.
Laughing Gas
Joined: Apr 2011
Posts: 851
Likes: 14
Why not have a slot for the 4 pin trailer connector next to the round 7 plug? Also a hole to mount an air chuck where it would be somewhat protected would be nice for those of us with OBA.
Also don't forget about spare tire access.
Also don't forget about spare tire access.
Fleet Mechanic
Joined: Mar 2009
Posts: 1,856
Likes: 52
From: Sacramento Delta, CA
If the vehicle you are going to put the precious bumper on is long or hard to see behind (or if you are just a bad backer upper in tight trees and places like me) you may want to consider adding aftermarket radar to that bumper like me.
Car LCD Display Parking Reverse 4 Sensors Backup Radar Price: US $21.14
Car LCD Display Parking Reverse 4 Sensors Backup Radar | eBay
The wiring to the display is delicate, but the cpu seems well made. BTW, you won't find this written anywhere, but each sensor displays individually. In other words, if the object is only or is closer on the driver's side, then driver's side sensor will only display or will display closer than the sensor on the passenger side.
[O.T. - I have doubts about backup cameras in the bumper -- I have an ebay unit I may try in the bumper for hitching. But I think I am going with a downward facing hi-def camera from the back of the van roof.]
Car LCD Display Parking Reverse 4 Sensors Backup Radar Price: US $21.14
Car LCD Display Parking Reverse 4 Sensors Backup Radar | eBay
The wiring to the display is delicate, but the cpu seems well made. BTW, you won't find this written anywhere, but each sensor displays individually. In other words, if the object is only or is closer on the driver's side, then driver's side sensor will only display or will display closer than the sensor on the passenger side.
[O.T. - I have doubts about backup cameras in the bumper -- I have an ebay unit I may try in the bumper for hitching. But I think I am going with a downward facing hi-def camera from the back of the van roof.]
Thread Starter
|
Elder User
Joined: Jan 2006
Posts: 718
Likes: 0
The 4 pin doesnt have a retaining bracket like the 7 pins. I'll have to dig a little deeper to see what I can do
This bumper is for my truck. All I would have to do is go back into my file, add or delete brackets and holes to fit any of the customers needs.
At this time I am not willing to share the cad file
This bumper is for my truck. All I would have to do is go back into my file, add or delete brackets and holes to fit any of the customers needs.
At this time I am not willing to share the cad file
