I will be replacing the factory fuse block with the Painless Products 12 circuit fuse panel and doing my own headlight relay modification. Last Saturday I started with the headlight mod, I'll do the fuse block next weekend. I had to start by moving my AUX battery solenoid closer to the firewall along the drivers side inner fender and extending the AUX battery cable to the battery. I also replaced the aftermarket battery try with a real Ford AUX battery tray thanks to HIO Silver for finding this one!

I ordered the Painless fuse block and some small wire loom, I dug up the wire from our spare wire box and the hardware I already have in stock.





First I had to figure out where my headlight B+ leads are in the factory wiring harness. I also had to set a baseline voltage to determine if I'm really doing any good with this project so I installed a power supply on my MAIN battery and set the system voltage to 12.5 VDC. I measured the voltage at the drivers side headlight at 10 VDC.



I pulled the connector off on the drivers side and identified the headlight lead.



I pulled a piece of 12 Gauge wire thruogh the radiator support and protected it with wire loom. This will supply B+ to the passenger side headlight.



The new location of my battery isolation solenoid.

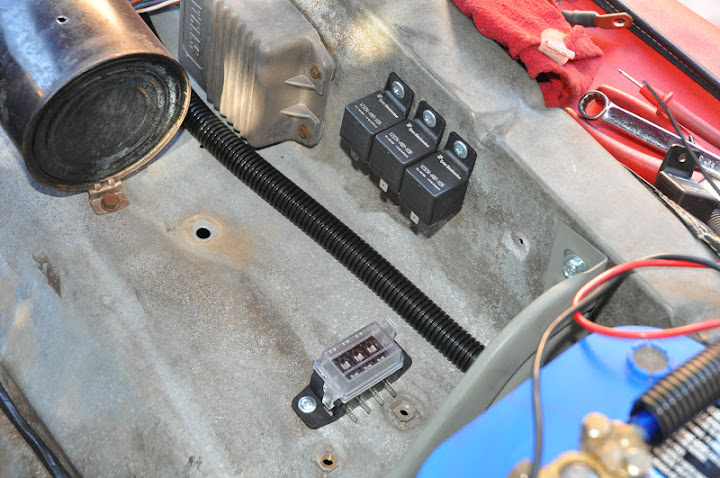

2 relays for the headlight and the third relay will be used for ether High beams or marker lights. I'll have to review the factory wiring schematic to determine the path. I also installed a fuse block to protect the new circuit.



After wiring everything in place the is my voltage going to the drivers side headlight.





I wired up the other side and now my headlights are nice and bright. Next week I will start the Painless fuse block install. That should also help clean up some mess under the hood so I can neaten up everything with wire loom and make it all look pretty.
