Yeah, the puddle lights turned out pretty good. Still working on the writeup and I'll post up a link when its ready.
I tried to size up my amber marker lights yesterday and found out that I need 4 per side instead of 3. I couldn't get the spacing I want with 3 so I have a few more on the way

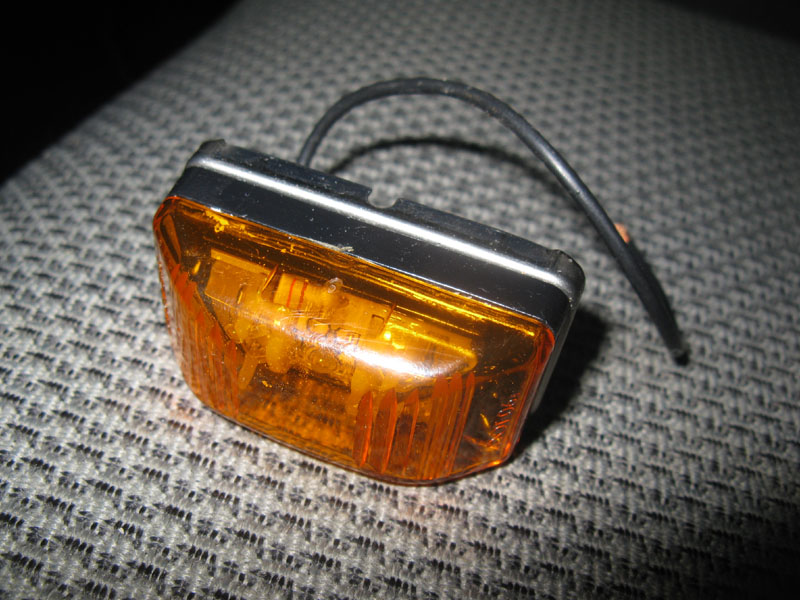

By the way, here's the marker lights I'm going to use.
M11 series Truck Clearance Marker Lights
Yeah, the puddle lights turned out pretty good. Still working on the writeup and I'll post up a link when its ready.
I tried to size up my amber marker lights yesterday and found out that I need 4 per side instead of 3. I couldn't get the spacing I want with 3 so I have a few more on the way
By the way, here's the marker lights I'm going to use.
M11 series Truck Clearance Marker Lights
Thread Starter
|
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV
Thread Starter
|
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV

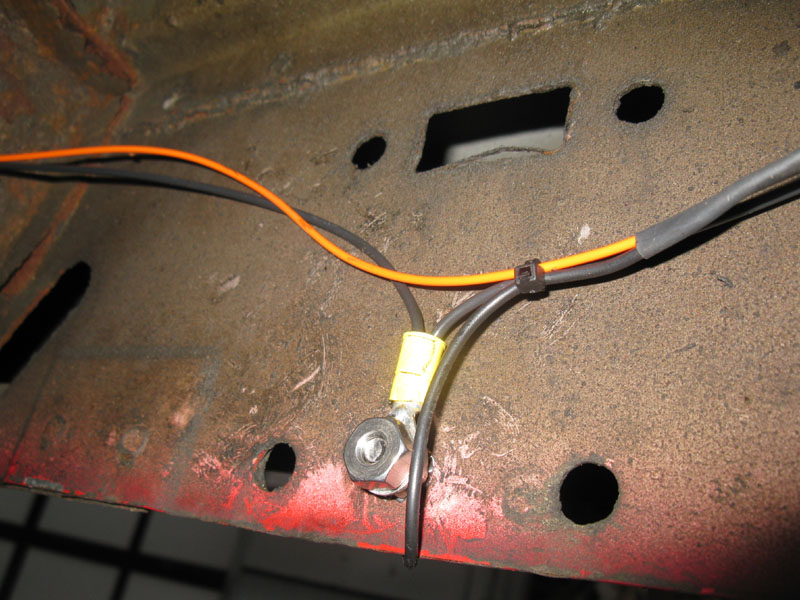

The ground is just the stud that you bolt them on with. I actually ran a ground wire to each stud. Superbrightleds.com part number M11PC-A3. Here's a few more pics...

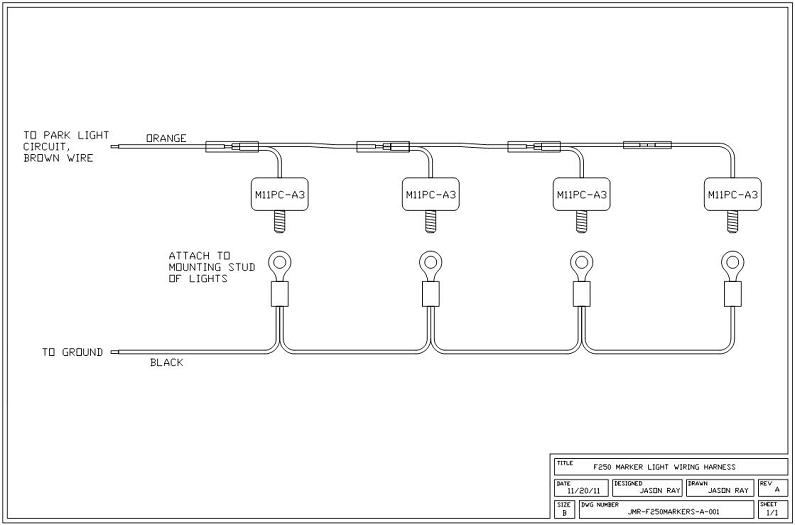

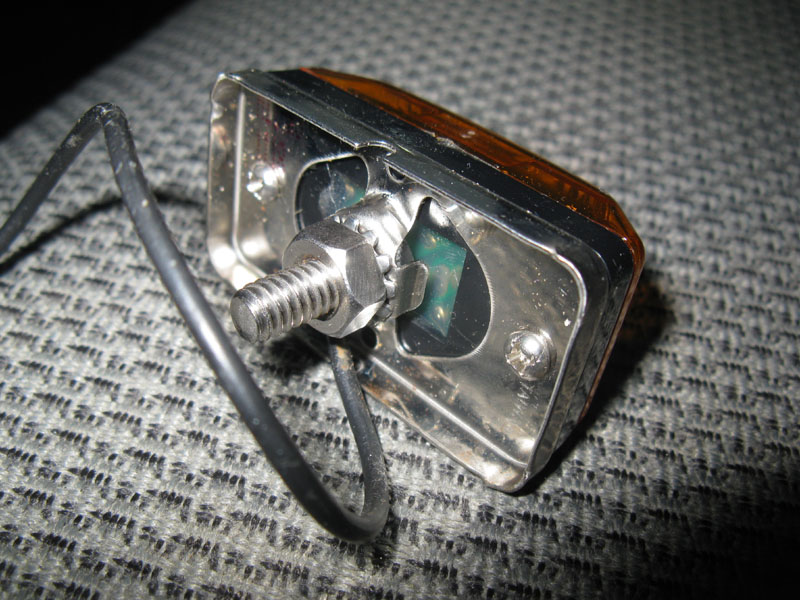

This drawing shows how I did the wiring for the lights and the next pic is a close up of one of the lights on the backside.
This drawing shows how I did the wiring for the lights and the next pic is a close up of one of the lights on the backside.
Thread Starter
|
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV
I brought mine inside the cab. Only reason was, I already had an easy way in on the driver's side. When I installed the Pop & Lock tailgate lock, the wires weren't long enough to go up to the firewall through the plastic plug (the way I normally get wires in/out) so I drilled a hole to poke the loom up through. So, I used this loom to get into the cab.
Problem with that was, I had to drill another hole in the pass side to match. Then had to snake the wire across behind the dash to the driver's side since there's no park light wire in the pass side loom.

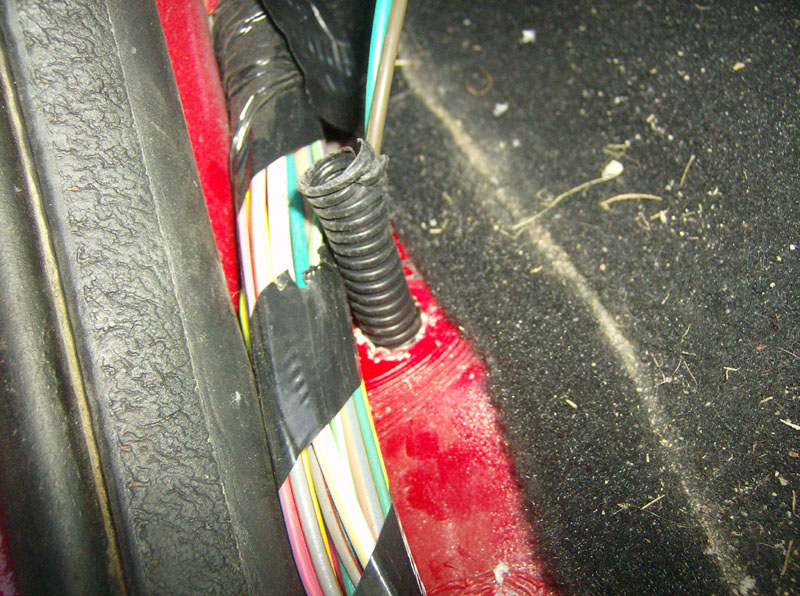

Here's the hole I was talking about:
Problem with that was, I had to drill another hole in the pass side to match. Then had to snake the wire across behind the dash to the driver's side since there's no park light wire in the pass side loom.
Here's the hole I was talking about:
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
Thread Starter
|
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV

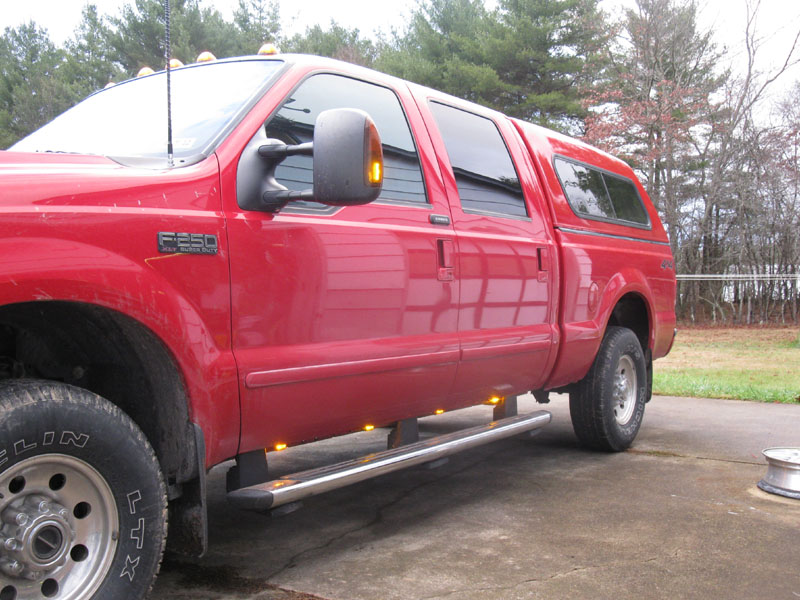

Ok, all the marker light details are here:
2004 F250 Marker Lights
Lighting projects are always fun and these ones didn't disappoint. I'm really surprised I was able to get all three done this time of year. Weather's holding out really well so far.
2004 F250 Marker Lights
Lighting projects are always fun and these ones didn't disappoint. I'm really surprised I was able to get all three done this time of year. Weather's holding out really well so far.
Senior User
Joined: Oct 2011
Posts: 377
Likes: 0
That's right. Its made by PEAK and was (maybe still is?) sold at Sam's Club stores.
more info here... 2004 F250 Reverse Backing Alert System
more info here... 2004 F250 Reverse Backing Alert System
Thread Starter
|
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV
Thanks
The aux reverse lamps are crazy-useful. I've already used them a ton, wish I would've installed those years ago.
The aux reverse lamps are crazy-useful. I've already used them a ton, wish I would've installed those years ago.
