Dome light Wiring
Hi, I am having a problem with wiring in my dome light into my 48 Ford, I have a dome light with the centre bulb and the 2 reading lamps on each side with a switch to turn them off and on, with 2 wires coming from it. I have the easywire fuse box and the push buttons for the doors, But I'm am just not to sure how to wire this in, if anyone can help with a drawing that would be great, thanks.
Cargo Master
Joined: Feb 2008
Posts: 2,793
Likes: 128
From: Windermere Valley,B.C. Ca
Hum, Julie will be along shortly (?) but here is a cyberspace guess. For the map lights to work without having to have the door open you would need two power wires, one fused but always hot for the map lights and one switched by the door switches to turn on the interior / dome light when you open the door. Both circuits are going to require a ground so is there a ground via one of the mounting screws and is it into the metal body, not plastic?
OH, here comes the diminutive one!
OH, here comes the diminutive one!
Cargo Master
Joined: Feb 2008
Posts: 2,793
Likes: 128
From: Windermere Valley,B.C. Ca
JULIE HELP!
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
Ok Try one of these depending on your set up, switch types and local control (switch on the light?).
For mine I mounted a second very dim light for the door switches and left the overhead (above the back window) on a seperate switch. I did it that way so at night th elight high in the cab wouldn't blind you - the small one under the dash for the door switches provides just enough light to let you see what you are doing in the lower half of the cab.
There are lots of variables, but pick one of these based on what configuration you want. "HOT BUS" is hot power on all the time, "SWITCHED BUS" is power turned on with your ignition switch.
For mine I mounted a second very dim light for the door switches and left the overhead (above the back window) on a seperate switch. I did it that way so at night th elight high in the cab wouldn't blind you - the small one under the dash for the door switches provides just enough light to let you see what you are doing in the lower half of the cab.
There are lots of variables, but pick one of these based on what configuration you want. "HOT BUS" is hot power on all the time, "SWITCHED BUS" is power turned on with your ignition switch.
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
If your switches have a single tab, they provide a ground through the body of the switch for the circuit when the switch botton extends. So, you have to run power to the light first, then a wire down to each switch to provide a ground (and thus light on) when the door opens.
If your door switches have two tabs on the back, then power runs into the switch (which is not grounded by the switch case contacting the door jam) then out to the light which is grounded.
You can not have both the switches and the light providing a ground - only one or the other. And which ever one doesn't provide the ground, gets the power applied to it.
Cargo Master
Joined: Feb 2008
Posts: 2,793
Likes: 128
From: Windermere Valley,B.C. Ca
If your switches have a single tab, they provide a ground through the body of the switch for the circuit when the switch botton extends. So, you have to run power to the light first, then a wire down to each switch to provide a ground (and thus light on) when the door opens.
Trending Topics
Thread Starter
|
Junior User
Joined: Aug 2010
Posts: 80
Likes: 0
From: Saskatoon, SK. Canada
Yes my door contacts do have the two male contacts, one of which is comes out and is grounded to the body.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
So you have one of the posts on the switch that has a wire running to ground?!? That's probably the problem. That should have power flowing into one tab then when the button pops open (and closes the switch) power should also flow out the other tab and then up to the light - which is grounded.
Best way to be sure is take a meter and check to see if (when the button is allowed to pop up) if the switch provides continuety between the two contacts, or if the switch provides continuety between either (or both ) of the contacts and the switch casing.
Then check to see if your light casing has continuety to ground (via the case itself or tabs on the back or the switch) - probably does, and the door switches probably provide continuety between the posts. If that's the case, then any of the drawings above will work - depending on what configuration you want. The 56 drawing is OEM.
If your light case is not grounded and you HAVE TO use the door switches as grounds, then you can wire it like this:
.
Best way to be sure is take a meter and check to see if (when the button is allowed to pop up) if the switch provides continuety between the two contacts, or if the switch provides continuety between either (or both ) of the contacts and the switch casing.
Then check to see if your light casing has continuety to ground (via the case itself or tabs on the back or the switch) - probably does, and the door switches probably provide continuety between the posts. If that's the case, then any of the drawings above will work - depending on what configuration you want. The 56 drawing is OEM.
If your light case is not grounded and you HAVE TO use the door switches as grounds, then you can wire it like this:
FTE Chapter Leader
Joined: May 2001
Posts: 3,322
Likes: 20
From: Rhode Island
Ok Try one of these depending on your set up, switch types and local control (switch on the light?).
For mine I mounted a second very dim light for the door switches and left the overhead (above the back window) on a seperate switch. I did it that way so at night th elight high in the cab wouldn't blind you - the small one under the dash for the door switches provides just enough light to let you see what you are doing in the lower half of the cab.
There are lots of variables, but pick one of these based on what configuration you want. "HOT BUS" is hot power on all the time, "SWITCHED BUS" is power turned on with your ignition switch.

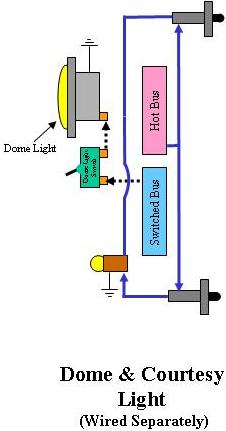

Attachment 28299
Attachment 28300
Attachment 28301
For mine I mounted a second very dim light for the door switches and left the overhead (above the back window) on a seperate switch. I did it that way so at night th elight high in the cab wouldn't blind you - the small one under the dash for the door switches provides just enough light to let you see what you are doing in the lower half of the cab.
There are lots of variables, but pick one of these based on what configuration you want. "HOT BUS" is hot power on all the time, "SWITCHED BUS" is power turned on with your ignition switch.
Attachment 28299
Attachment 28300
Attachment 28301
What if I wanted to have a switch at 4 doors, Im building a 56 f100 crew cab and am going to have two stock dome lights, and 4 stock style door switches.
I would like both lights to come on when any of the doors are opened, as well as from the headlight switch.
I would also like to be able to turn both the dome lights on from either switch on the actual dome lights.
can it be done?
under dash curtisity lights might be nice too.
Hotshot
Joined: Oct 2009
Posts: 16,168
Likes: 4,767
From: Burbank, WA
You have 2 choices. You can change your switches to the grounded type and follow the above diagram, which would make life very simple. Or you can reverse the power flow as shown and run hot wires to all of your switches that will send juice to the lamp, which would be grounded. That's a lot of extra wire and a lot more areas for problems, which is why the OEM went the other way.
Elder User
Joined: Jan 2011
Posts: 859
Likes: 3
From: Newberg, OR
Then connect the second wire from the switch to ground. One thing not discussed here (or at least I haven't seen it) is the difference in how the dome light is grounded. Sounds like OEM dome lights are one wire with the ground thru the light base. If that is right then it won't work with modern one wire door switches. But this tread was started with the idea of using a modern dome light with integrated reading lights.
