stc fitting installed on a pump.

Thread Tools

Search this Thread

Old Jul 14, 2010 | 08:00 PM
Share
  #1
cheezit's Avatar
cheezit
Thread Starter
|
Post Fiend
15 Year Member
Joined: Oct 2009
Posts: 12,123
Likes: 35
From: N. Fort Worth, tx
Club FTE Silver Member

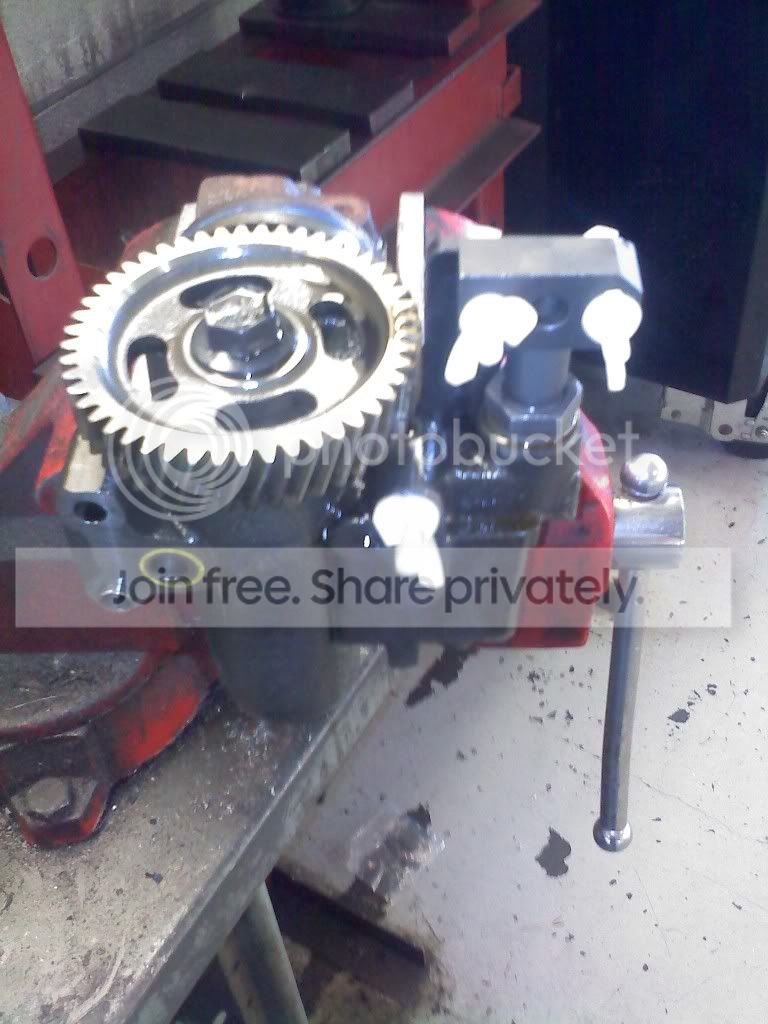

stc fitting installed on a pump.




sorry not real excting but if you have done it right it should look just like this one.
this would be for a 2005-2009 6.0..... 2009 in not a typo they were still in the e-van.

Reply
0
Old Jul 14, 2010 | 08:12 PM
Share
  #2
rickatic's Avatar
rickatic
Postmaster
Joined: Apr 2009
Posts: 3,839
Likes: 2
Geez buddy, where were these pics when I did mine?

Reply
0
Old Jul 14, 2010 | 08:13 PM
Share
  #3
cheezit's Avatar
cheezit
Thread Starter
|
Post Fiend
15 Year Member
Joined: Oct 2009
Posts: 12,123
Likes: 35
From: N. Fort Worth, tx
Club FTE Silver Member

on my cell phone. all ya had to do was ask.

Reply
0
Old Jul 14, 2010 | 09:05 PM
Share
  #4
bradyracing's Avatar
bradyracing
Senior User
Joined: Feb 2004
Posts: 254
Likes: 0
From: Webb, MS
What are the nylon bolts and wingnuts for?

Reply
0
Old Jul 14, 2010 | 09:07 PM
Share
  #5
cheezit's Avatar
cheezit
Thread Starter
|
Post Fiend
15 Year Member
Joined: Oct 2009
Posts: 12,123
Likes: 35
From: N. Fort Worth, tx
Club FTE Silver Member

the nylon nuts and bolts are there to hold the alignment tool to keep the "T" block on the same axis as the branch tube.
they are remove after the lock nut is tighten down and prior to installing the pump back in to the engine.

Reply
0
Old Jul 14, 2010 | 09:08 PM
Share
  #6
Powerstroke_wannabe's Avatar
Powerstroke_wannabe
Posting Guru
20 Year Member
Joined: May 2003
Posts: 1,990
Likes: 1
From: Middleburg, FL
Club FTE Silver Member

If I'm not mistaken, they're for proper alignment of the fitting. Once done, the nylon pieces are discarded.

Reply
0
Old Jul 14, 2010 | 09:08 PM
Share
  #7
rickatic's Avatar
rickatic
Postmaster
Joined: Apr 2009
Posts: 3,839
Likes: 2
Just giving you a little... you sent me the instructions

Reply
0

Trending Topics

Old Jul 14, 2010 | 09:09 PM
Share
  #8
Powerstroke_wannabe's Avatar
Powerstroke_wannabe
Posting Guru
20 Year Member
Joined: May 2003
Posts: 1,990
Likes: 1
From: Middleburg, FL
Club FTE Silver Member

Cheezit beat me to it. Should have known.....

Reply
0
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level

 Verdad Gallardo
story-1

Top 10 Fords at 2026 Carlisle Ford Nationals

 Joe Kucinski
story-2

3 Best / 3 Worst Parts of Modern Ford Ownership

 Brett Foote
story-3

10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches

 Pouria Savadkouei
story-4

Every 2026 Ford Engine Explained

 Brett Foote
story-5

10 Ugly Ford Trucks That We Still Kinda Love

 Joe Kucinski
story-6

10 Things Every Truck Owner NEEDS (2026 Edition)

 Michael S. Palmer
story-7

Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath

 Verdad Gallardo
story-8

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

 Joe Kucinski
story-9

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

 Brett Foote
Old Jul 14, 2010 | 09:12 PM
Share
  #9
cheezit's Avatar
cheezit
Thread Starter
|
Post Fiend
15 Year Member
Joined: Oct 2009
Posts: 12,123
Likes: 35
From: N. Fort Worth, tx
Club FTE Silver Member

but it's my thread so I can..

Just an fyi if anyone needs pics of something please let me know. If I have that in my stall and can take a picture I will.

Reply
0
Old Jul 14, 2010 | 09:17 PM
Share
  #10
bradyracing's Avatar
bradyracing
Senior User
Joined: Feb 2004
Posts: 254
Likes: 0
From: Webb, MS
That makes sense. I'm running the older pump but I have the STC update kit in a bag for future projects and I was just curious.

Reply
0
Old Jul 14, 2010 | 09:23 PM
Share
  #11
MudhenGIB's Avatar
MudhenGIB
Senior User
Joined: May 2010
Posts: 245
Likes: 0
Club FTE Silver Member

I had to order the 15/16s crows foot wrench online, no one local had such a size in stock. The instructions that were provided in the kit were very good.

Reply
0
Old Jul 27, 2010 | 09:28 PM
Share
  #12
FSeybert's Avatar
FSeybert
Mountain Pass
20 Year Member
Joined: Oct 2004
Posts: 186
Likes: 1
From: New Mexico
Thanks for posting these pics. What is the torque spec for the fitting? My bag came sans instructions. It did however come with a new IPR screen and o-ring.

Reply
0
Old Jul 27, 2010 | 10:13 PM
Share
  #13
jetact's Avatar
jetact
Elder User
Joined: Dec 2004
Posts: 944
Likes: 0
From: Happy Valley, Oregon
Cheezit,

What is the part number for that. I have seen just the fitting and also a fitting with a connector bracket. I have an 05. Build dat of 10/04. Thanks for the help

Reply
0
Old Jul 27, 2010 | 10:35 PM
Share
  #14
m-chan68's Avatar
m-chan68
Lead Driver
15 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2010
Posts: 5,505
Likes: 257
From: Woodbridge, Ontario, CA
Club FTE Silver Member

Originally Posted by jetact
Cheezit,

What is the part number for that. I have seen just the fitting and also a fitting with a connector bracket. I have an 05. Build dat of 10/04. Thanks for the help
4C3Z-9B246-F

Reply
0
Old Jul 27, 2010 | 10:36 PM
Share
  #15
jetact's Avatar
jetact
Elder User
Joined: Dec 2004
Posts: 944
Likes: 0
From: Happy Valley, Oregon
M-chan

Thanks for the help. I will be ordering it so I can start my project.

Reply
0
