Had some problems with the trans in my pickup and Im trying to take off the top cover and take a look inside to see what the problems are.
I was driving the other day went to shift into second, shifter went down, let out the clutch and nothing. Wobbled the shifter around until I got it into a gear and limped it home.
I took the shifter when it was in neutral, and got all the bolts that hold the top cover out but it wont come off. Its loose and will wiggle around but I dont want to force it and mess it up.
What am I missing?
I was searching earlier and saw a thread on replacing the plugs that had a write up but now cant find it
Had some problems with the trans in my pickup and Im trying to take off the top cover and take a look inside to see what the problems are.
I was driving the other day went to shift into second, shifter went down, let out the clutch and nothing. Wobbled the shifter around until I got it into a gear and limped it home.
I took the shifter when it was in neutral, and got all the bolts that hold the top cover out but it wont come off. Its loose and will wiggle around but I dont want to force it and mess it up.
What am I missing?
I was searching earlier and saw a thread on replacing the plugs that had a write up but now cant find it
Postmaster
Joined: Sep 2008
Posts: 2,995
Likes: 0
From: raymond alberta
by top cover do you mean the shift ball cover or the whole shift tower...you will never get the whole shift tower out with the tranny in unless you pull the interior appart and get the doghouse out...but the shift ball cover on the other hand, there are 3 small bolts?
remove the shifter first makes it easier...if you look at the bolt on the shifter take the nut completely off on the RIGHT side of the shifter then give the bolt head on the left side a twist in one direction or another and the bolt should pop out...goofy little design that people overlook...
once you get that off the cover should pull off over the shift ball/stem...it should be a little tight due to the rubber seal, then the ball will come out, check out the shift ball seats and see if they are even there at all...if not replace them...make sure the two pins that keep the ball straight are not worn down...other than that you cant really tell much though there
my guess is you have worn out shifter forks...that requires you to either pull the tranny or the seat and the floor (carpet or whatever you have) then the doghouse cover...
remove the shifter first makes it easier...if you look at the bolt on the shifter take the nut completely off on the RIGHT side of the shifter then give the bolt head on the left side a twist in one direction or another and the bolt should pop out...goofy little design that people overlook...
once you get that off the cover should pull off over the shift ball/stem...it should be a little tight due to the rubber seal, then the ball will come out, check out the shift ball seats and see if they are even there at all...if not replace them...make sure the two pins that keep the ball straight are not worn down...other than that you cant really tell much though there
my guess is you have worn out shifter forks...that requires you to either pull the tranny or the seat and the floor (carpet or whatever you have) then the doghouse cover...
Thread Starter
|
Mountain Pass
Joined: Jun 2009
Posts: 248
Likes: 0
From: East Wenatchee, WA
I have the ball out, and I also have the carpet pulled back and the have the piece that is bolted/glued to the floor of the cab off. Then I pulled out all the bolts that hold the cover on the trans and pulled off the electrical connector. It still wont come off
Cargo Master
Joined: Jun 2002
Posts: 2,033
Likes: 32
From: Aurora,Colorado
Try depressing the clutch pedal and then pulling up on the shift tower.
Postmaster
Joined: Sep 2008
Posts: 2,995
Likes: 0
From: raymond alberta
okay your pulling the whole tower through the cab...they can take some wiggling and adjusting and pulling, it will come eventually and once its out look at the shift forks and you will see why it is like it is to get out, and get back in, it will look like its going in crooked, let it, it will straighten out
i used a srewdriver to pry on it a bit...it should be able to wiggle and move enough to get some space between it and the tranny, just be carefull with that gasket thats in there
if im on the same page he is depressing the clutch pedal wont help...they are hard ot get out because of the way the shift forks are, its hard to eplain but one wraps around to one side and the other one goes to the other side so natually it wont want to come straight up and out it needs to be twisted, the clutch wont do anything here, or having it in any other gears, the forks are still in the collars either way, so the only thing you can do it twist and pull and play arounf with it, let it go the way it trys to and it should gome out, but dont force anything, pry very lightly up on the tower at the front of the tranny
you should get some pics if you can
i used a srewdriver to pry on it a bit...it should be able to wiggle and move enough to get some space between it and the tranny, just be carefull with that gasket thats in there
if im on the same page he is depressing the clutch pedal wont help...they are hard ot get out because of the way the shift forks are, its hard to eplain but one wraps around to one side and the other one goes to the other side so natually it wont want to come straight up and out it needs to be twisted, the clutch wont do anything here, or having it in any other gears, the forks are still in the collars either way, so the only thing you can do it twist and pull and play arounf with it, let it go the way it trys to and it should gome out, but dont force anything, pry very lightly up on the tower at the front of the tranny
you should get some pics if you can
Thread Starter
|
Mountain Pass
Joined: Jun 2009
Posts: 248
Likes: 0
From: East Wenatchee, WA

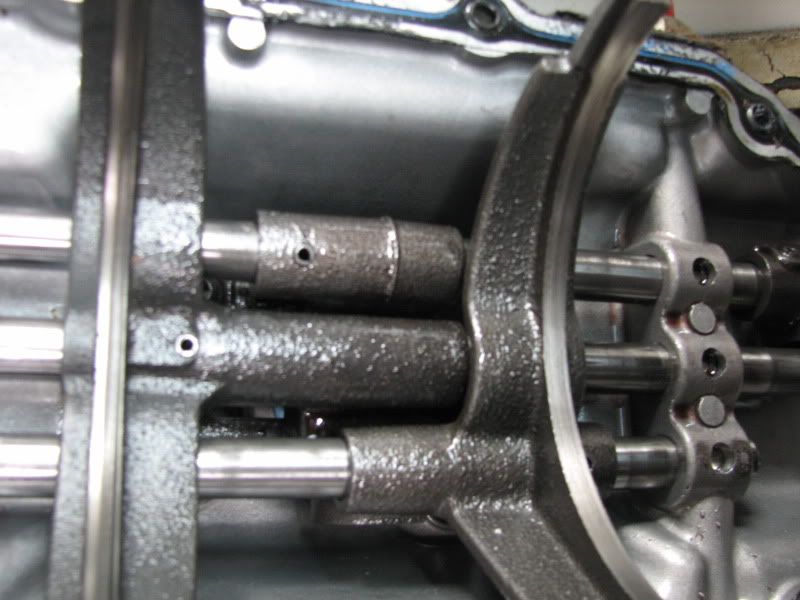

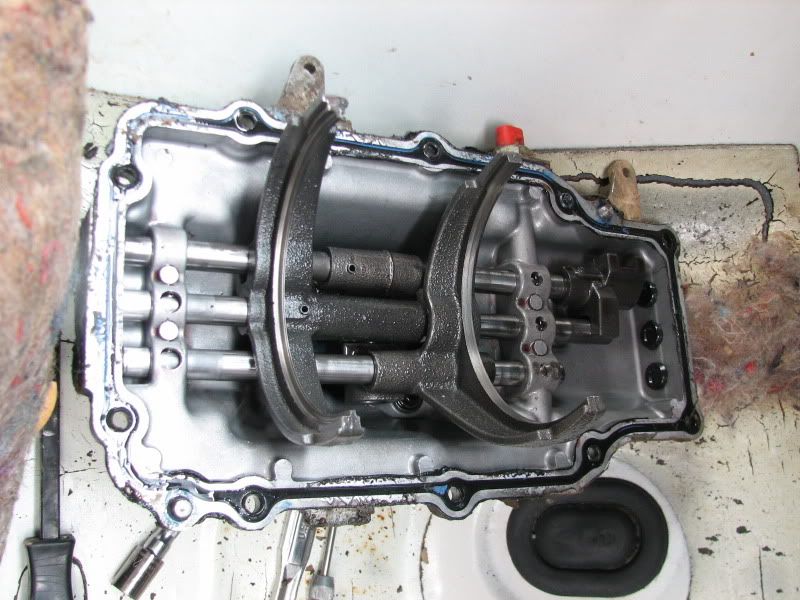

Ok so I got it apart today, and it looks like the shift fork that is closer to the engine is shot.
Not really sure what its supposed to look like but it doesnt look right thats for sure
The gears inside are looking pretty good no excessive wear, and the teeth look good.
Fluid looks a bit low but I think the plugs that people talk about on here are the culprit.
Are they the ones here and on the other side?
Not really sure what its supposed to look like but it doesnt look right thats for sure
The gears inside are looking pretty good no excessive wear, and the teeth look good.
Fluid looks a bit low but I think the plugs that people talk about on here are the culprit.
Are they the ones here and on the other side?
Thread Starter
|
Mountain Pass
Joined: Jun 2009
Posts: 248
Likes: 0
From: East Wenatchee, WA
Trending Topics
Postmaster
Joined: Sep 2008
Posts: 2,995
Likes: 0
From: raymond alberta
look for tranny shops, you can get good forks from a junkyard...just make sure they arent bent...but yea, the front one is definately shot, if you can find a better one replace the rear one while youre there.
those plugs can be a problem yes, i had one blown out on me, used a coin and some silicon...problem solved, but if they are in there and visibly leaking just replace them
those plugs can be a problem yes, i had one blown out on me, used a coin and some silicon...problem solved, but if they are in there and visibly leaking just replace them
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Lead Driver
Joined: Feb 2002
Posts: 7,959
Likes: 592
From: Greater Austin, Texas
I must be blind, I don't see what y'all are talking about on the fork, it looks fine to me. What do your shift pins (inside the hole where the ball sits) look like? That is a much more common failure point on these transmissions than the forks.
FYI you can get an entire top cover with new forks on eBay usually.

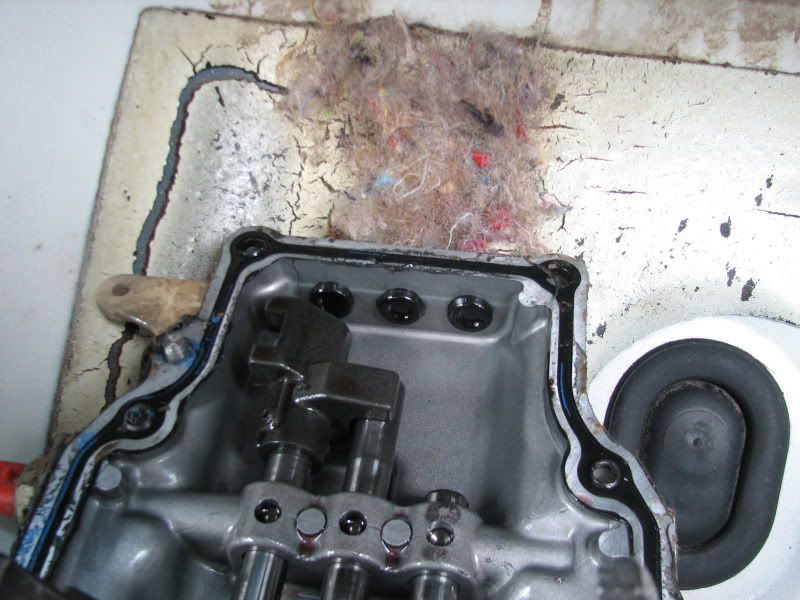

The plugs are the three black plugs visible in your last picture. Get new ones from Ford and glue them back in with Permatex Ultra-Blue sealant.
