48-52 brake question
Hotshot
Joined: Oct 2009
Posts: 16,165
Likes: 4,767
From: Burbank, WA
The Ford parts catalog lists 48-51 front brake drums as being 11 13/16" ID, and 51-52 as 12" ID.
Rear drums 48-51 are 12" ID, and 51-55 are also 12" ID, but listed under a different part number.
Rear drums 48-51 are 12" ID, and 51-55 are also 12" ID, but listed under a different part number.
Hotshot
Joined: Jan 2001
Posts: 16,876
Likes: 3,122
From: SE Wisc. (the Rust Belt)
I just sold a set of four drums for a late '51-52 F-2. They are different than the earlier trucks. I bought the set to use on my '49 but found they were different. As far as I could tell the only difference was the depth of the drum, not the width of the braking surface or the inside diameter. I didn't measure my '49 drums though so there could be a slight difference. The shoes were the same, front and back, on my '49.
Thread Starter
|
Elder User
Joined: Jan 2008
Posts: 658
Likes: 0
From: N.W. Mo.
Thanks for the info.
My 52 F3 has 12" brakes but I was not sure about the earlier 48-51's or if the F-2's & F-3's were the same.
From this I think the F-2's had 12" but the 48-50 F-3's had larger.
What I am really looking at is the backing plates for a project. I am told that '53-'56 F-2 backing plates will work for what I want but was wondering about the earlier ones.
In the parts book what different front backing plates are listed for F-2's for 48-56 and in what years are the F-3's different.
Thanks again for the info.
I will go back through it again and sort it all out.
My 52 F3 has 12" brakes but I was not sure about the earlier 48-51's or if the F-2's & F-3's were the same.
From this I think the F-2's had 12" but the 48-50 F-3's had larger.
What I am really looking at is the backing plates for a project. I am told that '53-'56 F-2 backing plates will work for what I want but was wondering about the earlier ones.
In the parts book what different front backing plates are listed for F-2's for 48-56 and in what years are the F-3's different.
Thanks again for the info.
I will go back through it again and sort it all out.
Trending Topics
Fleet Owner
Joined: Jul 2004
Posts: 27,290
Likes: 1,055
From: NM

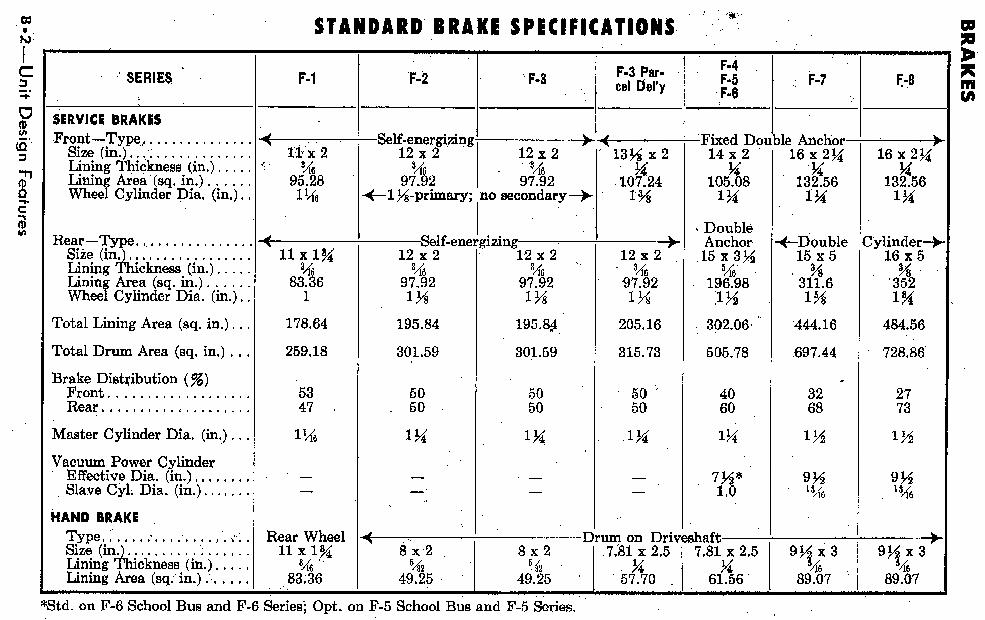

Here are the listings for front brakes from the CD:
C = F-1
D = F-2
Y = F-3
The column to the right of the diameter is shoe width
Below are the listing for the backing plates
C = F-1
D = F-2
Y = F-3
The column to the right of the diameter is shoe width
Below are the listing for the backing plates
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Hotshot
Joined: Oct 2009
Posts: 16,165
Likes: 4,767
From: Burbank, WA
Yes, I have an original (not reprint) 48-55 Ford Chassis Parts paper catalog. It shows 48-51 D,Y front brake drum as 11 13/16 ID p/n 8 D-1125-A, and 51-52 D,Y 12" ID p/n 1D-1125-B. Neither mentions anything about width. I'm assuming there was some running change mid-year in 51 for front brakes.
For front brake backing plate, I list 51-55 D,Y, and 53-55 J (parcel delivery) as being the same. 1D-2012-B (RH) and 1D-2013-B (LH). But if you find 51's somewhere, be sure they aren't the early style that fit 48-51. They are not side specific (L and R use the same plate). It appears the 52-56 F-250/350 will work for your 52 F-3.
Fleet Owner
Joined: Jul 2004
Posts: 27,290
Likes: 1,055
From: NM
I think the 12" is a nominal dimension, and includes probably 0.060" or more for turning over its life. I also think that F-250 backing plates past '56 are the same, '56 is just the limits of my CD. Very common Bendix pieces. (Number Dummy?)
Thread Starter
|
Elder User
Joined: Jan 2008
Posts: 658
Likes: 0
From: N.W. Mo.
Ok
It looks like mid 51-56 f1 & f2 & f250 should be the same and work.
Now the search begins.
Any one have an extra set they aren't going to use.
The backing plates are the only part I need.
Thanks Richard
It looks like mid 51-56 f1 & f2 & f250 should be the same and work.
Now the search begins.
Any one have an extra set they aren't going to use.
The backing plates are the only part I need.
Thanks Richard
Thread Starter
|
Elder User
Joined: Jan 2008
Posts: 658
Likes: 0
From: N.W. Mo.
Ross
This is n O/T project.
I am working on a 1929 model A hot rod that has 49 F1 brakes on the front.
I want to put the aluminum finned Buick drums on it but they are 12".
I can do it on the rear because they are 12" 46 Ford car brakes.
With the 12" F2/3 backing plates I should be able to make the fronts work.
Thanks Richard
This is n O/T project.
I am working on a 1929 model A hot rod that has 49 F1 brakes on the front.
I want to put the aluminum finned Buick drums on it but they are 12".
I can do it on the rear because they are 12" 46 Ford car brakes.
With the 12" F2/3 backing plates I should be able to make the fronts work.
Thanks Richard
Fleet Owner
Joined: Jul 2004
Posts: 27,290
Likes: 1,055
From: NM
Sounds like a fun project! As well as my F-1 brakes work on a F-1, I can't believe you need 12" for an A, but Buick drums are cool! You ought to check the HAMB, there are dozens of articles on what works with them.
Hotshot
Joined: Oct 2009
Posts: 16,165
Likes: 4,767
From: Burbank, WA
No! You need F-2/250 and F-3/350. F-1/100 are different. And since we don't know when the change was in 51, it's better to say late 51 than mid 51.
